Thunderbolt 3, 1x USB-C, 1x DisplayPort, 1x HDMI 2.0, 2x USB-A 3.2, 60 W, 1Gb, 100 x 100 x 30 mm, 213.8 g
Key Features
- World's first Thunderbolt-certified dual-powered dock
- Compatible with Thunderbolt-certified Mac and Windows laptops with a Thunderbolt 3 port
- Connect multiple devices to your laptop through one dock, including monitors, USB stick, mouse, keyboards, internet, hard drives and more
- Supports dual 4K UHD displays @ 60Hz
- 7 ports: 1 x Thunderbolt 3, 1 x USB-C PD, 1 x DisplayPort, 1 x HDMI, 1x USB-A 3.2 Gen 2(10Gbps), 1x USB-A 2.01, 1 x Audio in/out, 1 x Gigabit Ethernet
- Supports pass-through power from a laptop to connected devices
- Connect laptop’s power supply unit (60W recommended) to the dock to power the laptop
Description
WORLD'S FIRST THUNDERBOLT™-CERTIFIED DUAL-POWERED DOCK

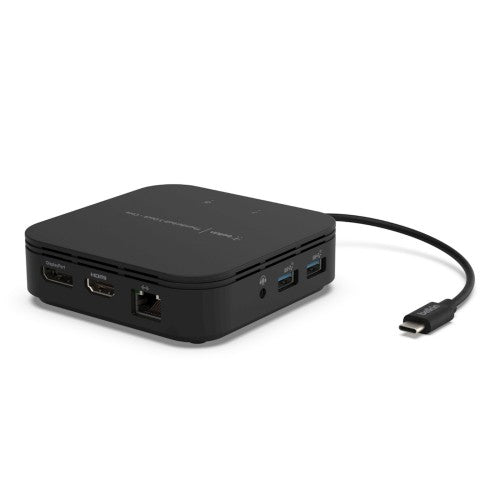

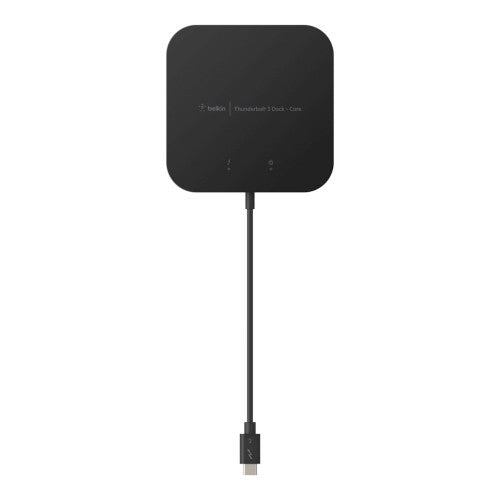

The Thunderbolt 3 Dock Core brings the speed, high-definition and performance of Thunderbolt technology to Mac and Windows laptops. With all the power and versatility of Thunderbolt 3, plus ports to connect multiple peripherals to a Thunderbolt laptop, this dock is a streamlined way to create an expanded, high-performing desktop through a single tethered cable.
CONNECT AN ENTIRE DESKTOP THROUGH A SINGLE CABLE
The tethered 6-inch Thunderbolt 3 cable connects multiple peripherals to your laptop, with ports for monitors, mouse, USB stick, keyboards, speakers, hard drives and more.

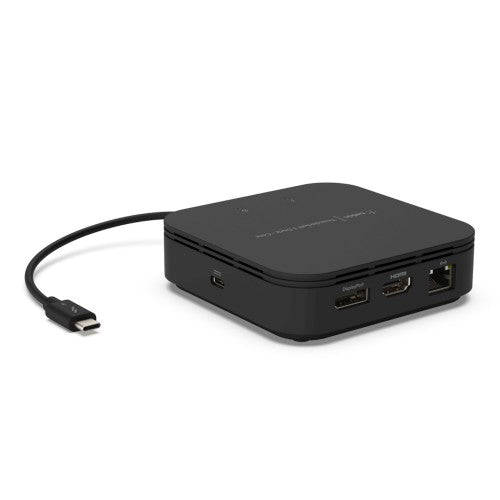

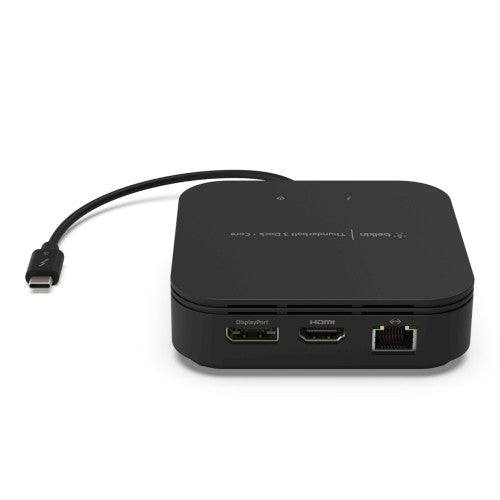

SIDE 1:
- 1 x DisplayPort™ 1.4 connects to high-resolution monitors/displays (for resolutions, see table below)
- 1 x HDMI (HDMI 2.0) port
- Gigabit Ethernet connection

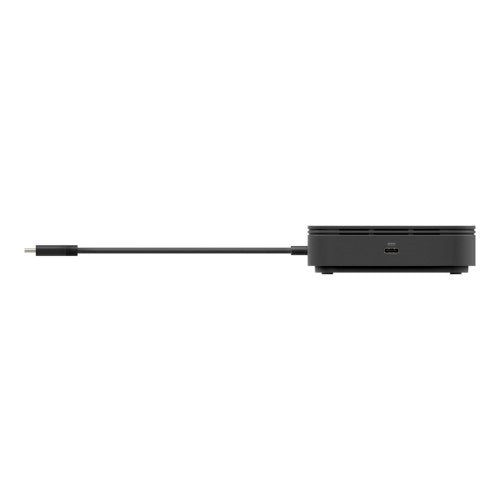

SIDE 2:
- Tethered Thunderbolt 3 cable connects to laptop
- 1 x USB-C PD port (input)
SIDE 3:
- Audio in/out for mic and speaker support
- 1x USB-A 3.2 Gen 2(10Gbps) and 1x USB-A 2.0 ports for devices that connect via USB-A such as a USB stick, mouse, keyboard or printer
WORKS WITH THUNDERBOLT 3 DEVICES
The Thunderbolt 3 Dock Core is an ideal single-dock solution for businesses using MacBooks running Mac OS, and laptops running Windows. This broad compatibility is also ideal for shared work environments or temporary workstations where laptop users are looking for a high-performing workstation with minimal set up.
DUAL 4K MONITOR SUPPORT
Supports dual 4K 60Hz monitors for a versatile desktop configuration, via a dedicated DisplayPort and an HDMI 2.0 port. Also supports a single 5K monitor at 60Hz and capable of reaching 8K 30Hz.
Please see the table below for specific resolution capabilities for all monitor combinations.
DUAL-POWERED FUNCTIONALITY
When the Thunderbolt 3 dock is connected to a laptop, it powers peripheral devices connected to the dock without the need for a separate power cable. Keep your laptop charged by connecting its existing power supply unit (60W recommended) to the USB-C PD port on the Thunderbolt dock.
Thunderbolt and the Thunderbolt logo are trademarks of Intel Corporation or its subsidiaries.
Specifications
| Ports & interfaces |
|---|
| Combo headphone/mic port |
Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
1 |
| Host interface |
Thunderbolt 3 |
| USB 2.0 ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| HDMI ports quantity |
1 |
| HDMI version |
2.0 |
| DisplayPorts quantity |
1 |
| Microphone in |
Yes |
| Headphone outputs |
1 |
| Connectivity technology |
Wired |
| USB Power Delivery |
Yes |
| USB Power Delivery up to |
60 W |
| DisplayPort version |
1.4 |
| Network |
|---|
| Ethernet LAN |
Yes |
| Ethernet LAN (RJ-45) ports |
1 |
| Performance |
|---|
| Maximum digital resolution |
7680 x 4320 pixels |
| Number of displays supported |
2 |
| Product colour |
Black |
| Card reader integrated |
No |
| Compatibility |
MacBook Pro 13" M1 (2020), MacBook Air 13" M1 (2020), Mac mini M1 (2020) |
| Maximum refresh rate |
60 Hz |
| Technical details |
|---|
| Product colour |
Black |
| Compatibility |
MacBook Pro 13" M1 (2020), MacBook Air 13" M1 (2020), Mac mini M1 (2020) |
| Cable length |
0.2 m |
| Harmonized System (HS) code |
84733020 |
| Storage |
|---|
| Card reader integrated |
No |
| Power |
|---|
| Power source type |
USB |
| Weight & dimensions |
|---|
| Weight |
213.8 g |
| Width |
100 mm |
| Depth |
100 mm |
| Height |
30 mm |
| Design |
|---|
| Product colour |
Black |
| Other features |
|---|
| Cable length |
0.2 m |
