6MP, 1/2.9" CMOS, 3072x2048px, 30 fps, 106x51x248mm, 1.3kg, Black/Grey
Key Features
- 6MP wide-angle camera; Easy integration with SIP, VAPIX, and ONVIF; Multiple hardware interfaces: audio input/output, relays, HDMI output, RS485; Signed firmware with Secure Boot; Support for HID® iClass®
Description

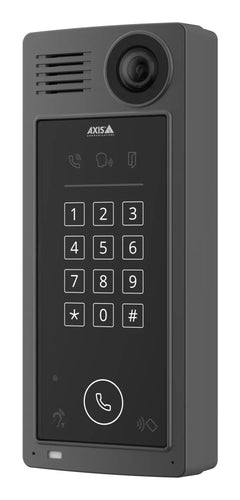

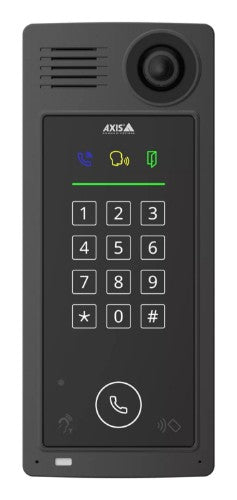

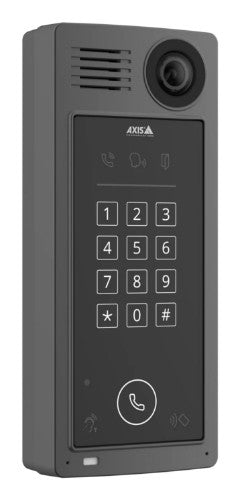

AXIS A8207-VE Mk II Network Video Door Station combines a fully featured 6 MP security camera with high-quality, two-way audio communication and remote entry control. It also has an integrated RFID multi-frequency reader with support for most standard credential types including HID® iClass®, allowing you to integrate with other access control systems. By providing both surveillance and access for visitors and employees, AXIS A8207-VE Mk II increases the efficiency while keeping down the number of devices at the door. Interaction is intuitive and accessible, with an induction loop for hearing aids. Analytics, such as motion or sound detection, are supported.
Specifications
| Features |
|---|
| Built-in camera |
Yes |
| Housing material |
Aluminium, Glass |
| Product colour |
Black, Grey |
| Certification |
EN 55032 Class A, EN 55024, EN 61000-6-2, FCC Part 15 Subpart B Class A and Subpart C and Subpart E, IEC/EN/UL 62368-1, IEC/EN/UL 60950-22, UL 293, UL 294, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-27, IEC 60068–2–6, IEC 60068–2–78, IEC/EN 60529 IP66, IEC/EN 62262 IK08, NEMA 250 Type 4X, EN 300330, EN 62311, RSS-Gen, RSS-210, EN 301 489-3, EN 303 348 |
| International Protection (IP) code |
IP66 |
| Performance |
|---|
| Compatible memory cards |
MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Card reader integrated |
Yes |
| Video formats supported |
AVC, H.264, M-JPEG, MPEG4 |
| Audio formats supported |
ADPCM, G.711, G.726, LC-AAC, LPCM, OPUS, PCM |
| Camera |
|---|
| Built-in camera |
Yes |
| Megapixel (approx.) |
6 MP |
| Maximum video resolution |
3072 x 2048 pixels |
| Maximum frame rate |
30 fps |
| Image sensor size |
1/2.9" |
| Sensor type |
CMOS |
| Vertical field of view |
120° |
| Horizontal field of view |
180° |
| Fixed focal length |
1.56 mm |
| Ports & interfaces |
|---|
| Connectivity technology |
Wired |
| Power |
|---|
| Input voltage |
8-28 V |
| Power source type |
DC |
| Technical details |
|---|
| Built-in camera |
Yes |
| Housing material |
Aluminium, Glass |
| Product colour |
Black, Grey |
| Certification |
EN 55032 Class A, EN 55024, EN 61000-6-2, FCC Part 15 Subpart B Class A and Subpart C and Subpart E, IEC/EN/UL 62368-1, IEC/EN/UL 60950-22, UL 293, UL 294, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-27, IEC 60068–2–6, IEC 60068–2–78, IEC/EN 60529 IP66, IEC/EN 62262 IK08, NEMA 250 Type 4X, EN 300330, EN 62311, RSS-Gen, RSS-210, EN 301 489-3, EN 303 348 |
| Weight & dimensions |
|---|
| Bell width |
10.6 cm |
| Bell depth |
5.1 cm |
| Bell height |
24.8 cm |
| Bell weight |
1.3 kg |
| Width |
106 mm |
| Depth |
51 mm |
| Height |
248 mm |
| Weight |
1.3 kg |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-40 - 55 °C |
| Storage temperature (T-T) |
-40 - 65 °C |
| Packaging content |
|---|
| Quick start guide |
Yes |
