Catalyst 1000-8FP-2G-L Network Switch, 8 Gigabit Ethernet (GbE) PoE+ Ports, 120W PoE Budget, two 1 G SFP/RJ-45 Combo Ports, Fanless Operation, Enhanced Limited Lifetime Warranty (C1000-8FP-2G-L)
Key Features

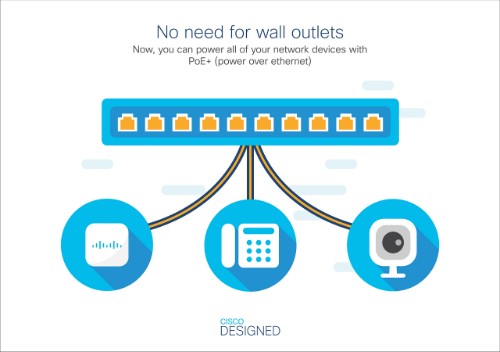

- HARDWARE CONFIGURATION: 8 10/100/1000 Gigabit Ethernet (GbE) PoE+ ports, 2 SFP/RJ-45 combo ports; Compact form factor switch with Power budget of 120W and Perpetual PoE+ support for uninterrupted power to PoE devices even in case of switch reboot
- MANAGEMENT: Manage the switch via the Cisco IOS CLI (command-line interface) and/or intuitive web UI. Centrally monitor and configure up to 8 switches via a Single IP or with any third party network management tool
- SECURITY: Enterprise Class Security which natively supports IPv4/IPv6 FHS Security features such as port security, DHCP snooping, dynamic ARP inspection which can easily be configured using a Single 'Auto-Secure' command along with 802.1x support for all connected devices
- Enterprise Class Hardware: Tamper-proof switch designed with the best of Cisco's trustworthy solutions technologies like HW anchored secure boot and Trust anchor Module to ensure you get an authentic and secure product
- PEACE OF MIND: Enhanced limited lifetime warranty
Description

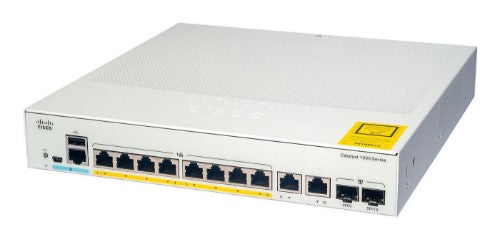

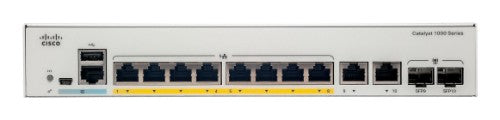

The Cisco Catalyst 1000-8FP-2G-L Network Switch is an enterprise-class fixed managed Gigabit Ethernet Layer 2 switch designed for small businesses and branch offices. This simple, flexible and secure network switch is ideal for critical IoT (Internet of Things) deployments. It operates on Cisco IOS Software and features a CLI (command-line interface) as well as an intuitive web user interface.
Specifications
| Management features |
|---|
| Traffic classification |
Yes |
| ARP inspection |
Yes |
| Switch type |
Managed |
| Web-based management |
Yes |
| Quality of Service (QoS) support |
Yes |
| Multicast support |
Yes |
| MIB support |
Yes |
| Switch layer |
L2 |
| Configuring Location Settings (CLI) |
Yes |
| Ports & interfaces |
|---|
| Basic switching RJ-45 Ethernet ports quantity |
8 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Combo SFP ports quantity |
2 |
| USB 2.0 ports quantity |
1 |
| Console port |
RJ-45/Mini-USB |
| Network |
|---|
| Networking standards |
IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3ah, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Full duplex |
Yes |
| VLAN support |
Yes |
| Spanning tree protocol |
Yes |
| Number of VLANs |
256 |
| Link aggregation |
Yes |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Broadcast storm control |
Yes |
| Auto MDI/MDI-X |
Yes |
| 10G support |
No |
| Auto-negotiation |
Yes |
| IGMP snooping |
Yes |
| IPv6 multicast entries |
1024 |
| IPv4 multicast entries |
1024 |
| IGMP entries |
1024 |
| Data transmission |
|---|
| Jumbo frames |
10240 |
| Number of static routes |
16 |
| MAC address table |
16000 entries |
| Switching capacity |
20 Gbit/s |
| Jumbo frames support |
Yes |
| Static route |
Yes |
| Forwarding rate |
14.88 Mpps |
| Number of VLANs |
256 |
| Security |
|---|
| Loop protection |
Yes |
| BPDU filtering/protection |
Yes |
| Authentication |
Web-based authentication |
| SSH/SSL support |
Yes |
| IGMP snooping |
Yes |
| Access Control List (ACL) |
Yes |
| Authentication type |
RADIUS |
| IGMP entries |
1024 |
| DHCP features |
DHCP snooping |
| Multicast features |
|---|
| Multicast support |
Yes |
| IPv6 multicast entries |
1024 |
| IPv4 multicast entries |
1024 |
| Protocols |
|---|
| Management protocols |
SNMP |
| Design |
|---|
| Product colour |
Grey |
| LED indicators |
Yes |
| Market segment |
Business |
| Country of origin |
China |
| Performance |
|---|
| Processor frequency |
800 MHz |
| Memory type |
DRAM |
| Mean time between failures (MTBF) |
1706649 h |
| Internal memory |
512 MB |
| Flash memory |
256 MB |
| Built-in processor |
Yes |
| Processor model |
ARM7 |
| Auto-negotiation |
Yes |
| Harmonized System (HS) code |
85176990 |
| Power |
|---|
| Power consumption (max) |
22 W |
| Power plug type |
Type C |
| AC input voltage |
110 - 220 V |
| AC input frequency |
50 - 60 Hz |
| Power consumption (typical) |
21.3 W |
| Input current |
0.22 - 0.27 A |
| Power over Ethernet (PoE) |
|---|
| Power over Ethernet (PoE) power per port |
15 W |
| Total Power over Ethernet (PoE) budget |
120 W |
| Power over Ethernet (PoE) |
Yes |
| Power over Ethernet (PoE) type supported |
PoE+ |
| Other features |
|---|
| Packaging content |
C1000-8FP-2G-L Switch, Accessory Kit, 1 printed document |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Country of origin |
China |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-25 - 70 °C |
| Storage relative humidity (H-H) |
5 - 95% |
| Operating temperature (T-T) |
-5 - 50 °C |
| Operating relative humidity (H-H) |
5 - 90% |
| Operating altitude |
0 - 3000 m |
| Non-operating altitude |
0 - 4500 m |
| Virtual LAN features |
|---|
| VLAN support |
Yes |
| Number of VLANs |
256 |
| Weight & dimensions |
|---|
| Width |
268 mm |
| Depth |
323.3 mm |
| Height |
43.9 mm |
| Weight |
2.7 kg |
| Packaging data |
|---|
| Package width |
349 mm |
| Package depth |
387 mm |
| Package height |
160 mm |
| Package weight |
3.85 kg |
| Technical details |
|---|
| Product colour |
Grey |
| Processor frequency |
800 MHz |
| Mean time between failures (MTBF) |
1706649 h |
| Built-in processor |
Yes |
| Products per shipping (inner) case |
1 pc(s) |
| Memory |
|---|
| Memory type |
DRAM |
| Internal memory |
512 MB |
| Flash memory |
256 MB |
| Indication |
|---|
| LED indicators |
Yes |
| Packaging content |
|---|
| Packaging content |
C1000-8FP-2G-L Switch, Accessory Kit, 1 printed document |
| Logistics data |
|---|
| Country of origin |
China |
| Products per master (outer) case |
1 pc(s) |
| Harmonized System (HS) code |
85176990 |
| Quantity per pack |
1 pc(s) |
