Description

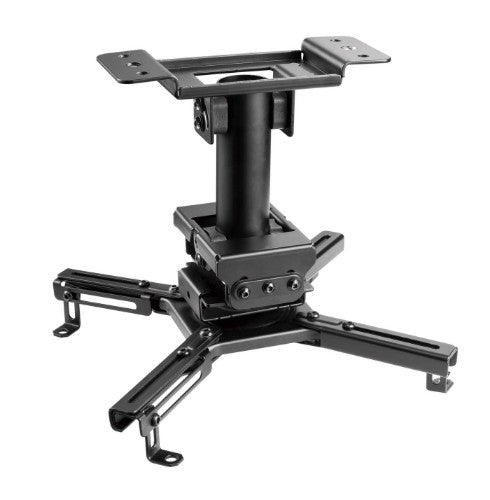

Pro Ceiling Mount, Max 35 kg max, 255 mm, 360°, Black

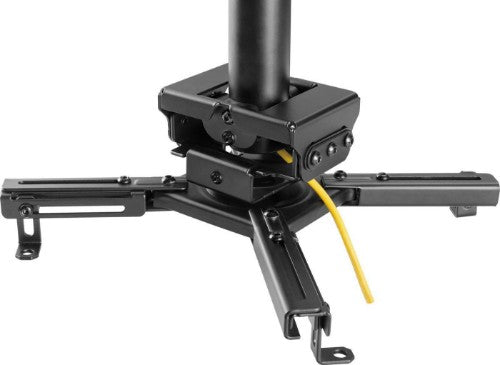

Cables are hidden inside pole.
Tilting Design: allows maximum viewing ability.
Adjustable Length: for your different choices.
Ceiling plate can be fine tune adjusted for easy reposition.

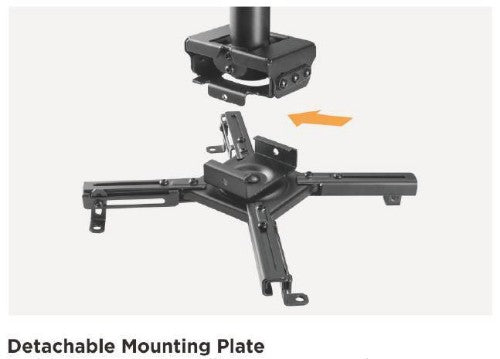

Detachable Head Section: makes installation easier.

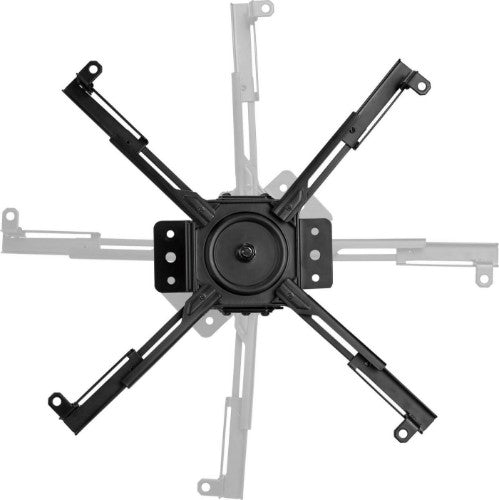

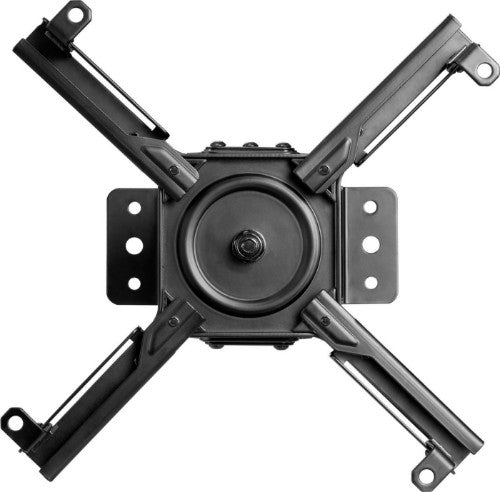

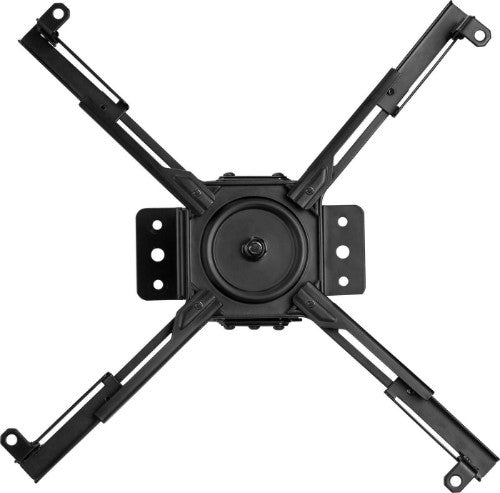

Adjustable Support Arms: fit most projectors hole distance from 130mm to 470mm.
Key Features
- Heavy-Duty Projector Ceiling Mount (For Pitched or Flat Ceiling)

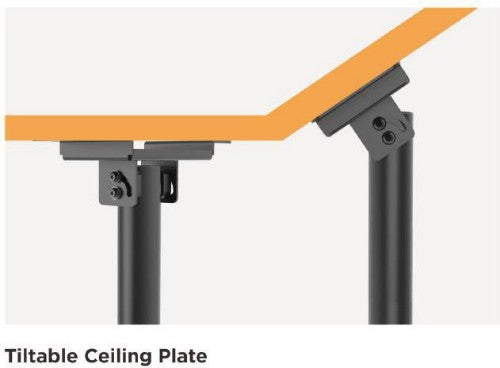

- Top plate tilt 90°
- Fine adjustment on mount plate +/-8° in all directions
- 360° Rotating Joint: for optimal viewing angles
- Swiveling Joint: offers maximum viewing flexibility
- Tilting Design: allows maximum viewing ability
- Adjustable Length: for your different choices
- Ceiling plate can be fine tune adjusted for easy reposition
- Detachable Head Section: makes installation easier
- Adjustable Support Arms: fit most projectors hole distance from 130mm to470mm
Description
Fixed 25,5cm from ceiling Support 35kg load, top/bottomn tilt function for perfect fit to screen.Cables are hidden inside pole.
Tilting Design: allows maximum viewing ability.
Adjustable Length: for your different choices.
Ceiling plate can be fine tune adjusted for easy reposition.
Detachable Head Section: makes installation easier.
Adjustable Support Arms: fit most projectors hole distance from 130mm to 470mm.
Specifications
| Mounting | |
|---|---|
| Mounting type | Ceiling |
| Maximum weight capacity | 45 kg |
| Ceiling mounting tube length (min) | 25.5 cm |
| Ceiling mounting tube length (max) | 25.5 cm |
| Performance | |
| Cable management | Yes |
| Tilt angle range | 0 - 90° |
| Angle of rotation | 360° |
| Number of pivot points | 4 |
| Mounting type | Ceiling |
| Maximum weight capacity | 45 kg |
| Height adjustment | No |
| Product colour | Black |
| Ceiling mounting tube length (min) | 25.5 cm |
| Ceiling mounting tube length (max) | 25.5 cm |
| Adjustable | Yes |
| Ergonomics | |
| Cable management | Yes |
| Tilt angle range | 0 - 90° |
| Angle of rotation | 360° |
| Number of pivot points | 4 |
| Height adjustment | No |
| Product colour | Black |
| Adjustable | Yes |
| Weight & dimensions | |
| Package weight | 2.97 kg |
| Package width | 371 mm |
| Package height | 140 mm |
| Package depth | 249 mm |
| Width | 211 mm |
| Height | 255 mm |
| Depth | 58 mm |
| Weight | 2.78 kg |
| Packaging content | |
| Screws included | Yes |
| Manual | Yes |
| Mounting kit | Yes |
| Technical details | |
| Cable management | Yes |
| Package width | 371 mm |
| Package height | 140 mm |
| Package depth | 249 mm |
| Tilt angle range | 0 - 90° |
| Angle of rotation | 360° |
| Number of pivot points | 4 |
| Mounting type | Ceiling |
| Maximum weight capacity | 45 kg |
| Height adjustment | No |
| Product colour | Black |
| Ceiling mounting tube length (min) | 25.5 cm |
| Ceiling mounting tube length (max) | 25.5 cm |
| Adjustable | Yes |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
| Harmonized System (HS) code | 83024190 |
| Quantity per pack | 1 pc(s) |
