Description
Presentation Switcher 6x1 4K
Key features include seamless and automatic switching, ensuring smooth transitions between sources. The HDBaseT output supports Power over Cable (PoC) and can be paired with a compatible HDBaseT receiver to extend signals up to 40 meters (131 feet) for 4K@30Hz and up to 70 meters (230 feet) for 1080p over a single CATx cable. The SCU41TS also supports audio embedding, de-embedding, and microphone audio mixing, providing comprehensive audio management. Additionally, it offers multi-view functionality with up to 16 selectable modes, allowing flexible display configurations. Control options include front panel buttons, graphical user interface (GUI), IR remote, RS232, and CEC, providing versatile integration into various AV setups.
Typical Applications:
4K seamless presentation switcher, perfect for meeting rooms requiring support for multiple signal sources.
Key Features
- HDBaseT Output
- 4K Seamless presentation switcher
- Multi screen mode
- Scales and switches any video signal to HDMI and HDBT outputs
- RS232 kontrol
Description

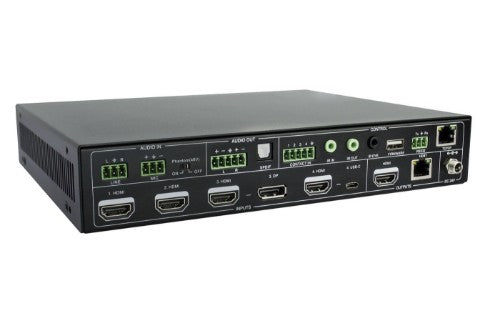

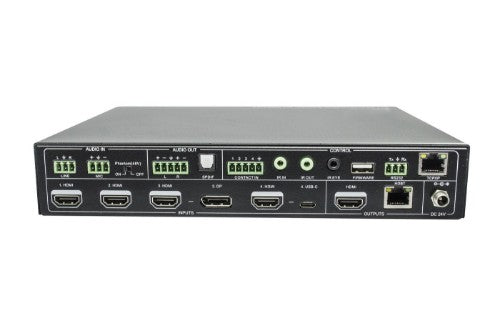

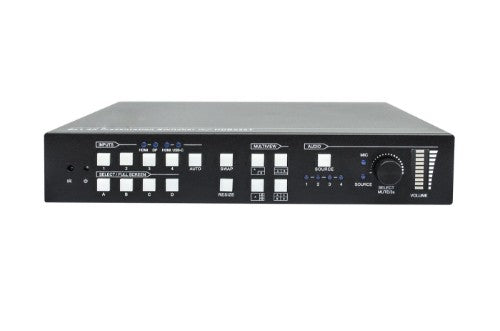

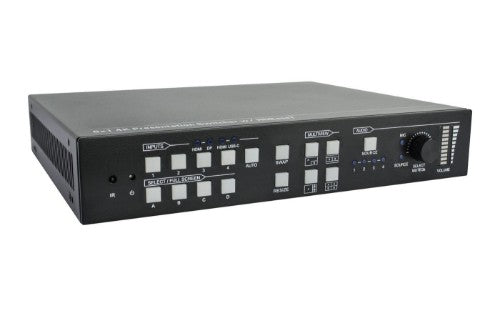

The VLSC262 is a versatile 6x1 presentation switcher designed to handle multiple video inputs and outputs with seamless switching capabilities. It features four HDMI inputs, one DisplayPort input, and one USB-C input, accommodating a wide range of source devices. The switcher provides mirrored HDMI and HDBaseT outputs, supporting resolutions up to 4K@30Hz and 1080p.Key features include seamless and automatic switching, ensuring smooth transitions between sources. The HDBaseT output supports Power over Cable (PoC) and can be paired with a compatible HDBaseT receiver to extend signals up to 40 meters (131 feet) for 4K@30Hz and up to 70 meters (230 feet) for 1080p over a single CATx cable. The SCU41TS also supports audio embedding, de-embedding, and microphone audio mixing, providing comprehensive audio management. Additionally, it offers multi-view functionality with up to 16 selectable modes, allowing flexible display configurations. Control options include front panel buttons, graphical user interface (GUI), IR remote, RS232, and CEC, providing versatile integration into various AV setups.
Typical Applications:
4K seamless presentation switcher, perfect for meeting rooms requiring support for multiple signal sources.
Specifications
| Ports & interfaces | |
|---|---|
| RJ-45 output ports | 1 |
| RJ-45 input ports | 1 |
| Video port type | HDMI/DisplayPort |
| RS-232 ports | 1 |
| HDMI version | 1.4 |
| HDMI ports quantity | 5 |
| Number of HDMI outputs | 1 |
| HDMI in | 4 |
| DisplayPorts quantity | 1 |
| Audio (L/R) out | 1 |
| DC-in jack | Yes |
| 3.5 mm (1/8-inch) out | Yes |
| 3.5 mm (1/8-inch) in | Yes |
| USB port type | USB Type-A/USB Type-C |
| Digital audio optical out | 1 |
| Features | |
| HD type | 4K Ultra HD |
| Input impedance | 10 Ω |
| Product colour | Black |
| Maximum resolution | 3840 x 2160 pixels |
| Material | Metal |
| LED indicators | Power |
| HDCP | Yes |
| External power adapter | Yes |
| Audio formats supported | PCM |
| HDCP version | 1.4/2.2 |
| Power | |
| AC adapter input voltage | 110 - 230 V |
| AC adapter frequency | 50/60 Hz |
| AC adapter output voltage | 24 V |
| AC adapter output current | 5 A |
| Power consumption (max) | 90 W |
| Certificates | |
| Certification | HDBaseT |
| Weight & dimensions | |
| Width | 250 mm |
| Height | 44 mm |
| Depth | 200 mm |
| Weight | 1.6 kg |
| Package width | 297 mm |
| Package height | 142 mm |
| Package depth | 269 mm |
| Package weight | 2.86 kg |
| Technical details | |
| HD type | 4K Ultra HD |
| Input impedance | 10 Ω |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating temperature (T-T) | -5 - 55 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Width | 250 mm |
| Height | 44 mm |
| Depth | 200 mm |
| Product colour | Black |
| Video port type | HDMI/DisplayPort |
| Maximum resolution | 3840 x 2160 pixels |
| Material | Metal |
| LED indicators | Power |
| HDMI version | 1.4 |
| HDMI ports quantity | 5 |
| HDCP | Yes |
| Remote control included | Yes |
| External power adapter | Yes |
| Audio formats supported | PCM |
| Packaging data | |
| Package width | 297 mm |
| Package height | 142 mm |
| Package depth | 269 mm |
| Package weight | 2.86 kg |
| Packaging content | |
| Screws included | Yes |
| Manual | Yes |
| Remote control included | Yes |
| AC adapter included | Yes |
| Mounting kit | Yes |
| Power cord included | Yes |
| Quantity per pack | 1 pc(s) |
| Operational conditions | |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating temperature (T-T) | -5 - 55 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
