Description

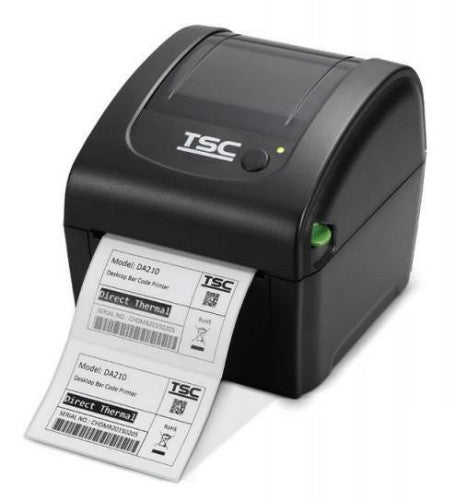

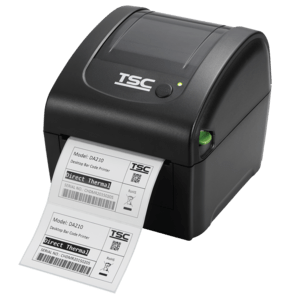

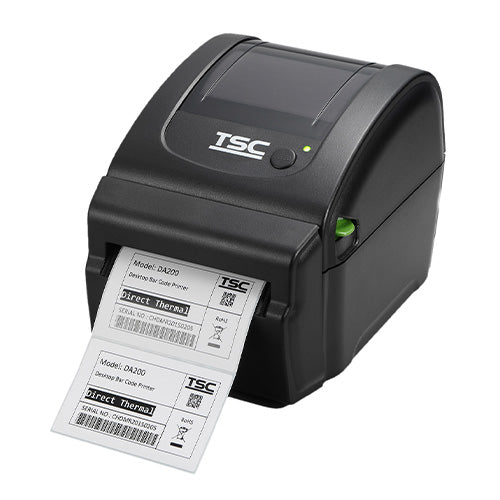

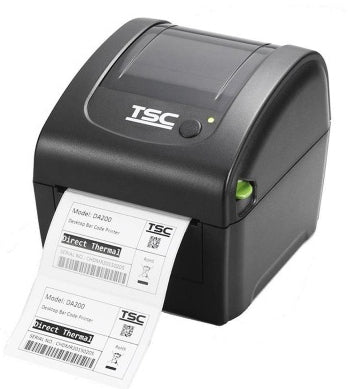

TSC DA220, Direct thermal, 203 x 203 DPI, 152.4 mm/sec, Wired & Wireless, Black
Description
TSC DA220. Print technology: Direct thermal, Maximum resolution: 203 x 203 DPI, Print speed: 152.4 mm/sec. Supported paper width: 108 mm. Connectivity technology: Wired & Wireless. Product colour: BlackSpecifications
| Print quality | |
|---|---|
| Maximum resolution | 203 x 203 DPI |
| Maximum printing width | 10.8 cm |
| Printing | |
| Rotated printing | Yes |
| Colour | No |
| Printing colours | Black |
| Print speed | 152.4 mm/sec |
| Maximum resolution | 203 x 203 DPI |
| Maximum printing width | 10.8 cm |
| Print technology | Direct thermal |
| Display | |
| Display | No |
| Network | |
| Wi-Fi | Yes |
| Ethernet LAN | Yes |
| Memory | |
| Internal memory | 64 MB |
| Flash memory | 128 MB |
| Paper handling | |
| Supported paper width | 108 mm |
| Media thickness | 0.055 - 0.19 mm |
| Maximum roll diameter | 3.8 cm |
| Maximum media length | 2.54 cm |
| Maximum label width | 11.4 cm |
| Maximum label length | 25.4 m |
| Ports & interfaces | |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| USB 2.0 ports quantity | 1 |
| Connectivity technology | Wired & Wireless |
| Bluetooth | Yes |
| Wi-Fi | Yes |
| Ethernet LAN | Yes |
| USB port | Yes |
| Performance | |
| Built-in barcodes | 1D, Code 93, PLESSEY, 2D, POSTNET, Data Matrix, Interleaved 2/5, QR Code, CODABAR (NW-7), EAN128, MSI, Code 11, Code 128 (A/B/C), UPC-A, UPC-E, MicroPDF417, Code 39, PDF417, GS1 DataBar |
| Number of fonts | 8 |
| Internal memory | 64 MB |
| Flash memory | 128 MB |
| Built-in processor | Yes |
| Certification | FCC Class B, CE Class B, C-Tick Class B, UL, cUL, TÜV/Safety, CCC, RoHS, WEEE |
| Page description languages | TSPL-EZ |
| Design | |
| Display | No |
| Product colour | Black |
| Built-in display | No |
| Certification | FCC Class B, CE Class B, C-Tick Class B, UL, cUL, TÜV/Safety, CCC, RoHS, WEEE |
| Power | |
| AC adapter output voltage | 24 V |
| AC adapter output current | 2.5 A |
| Power consumption (printing) | 60 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power source type | AC |
| Technical details | |
| Product colour | Black |
| Built-in barcodes | 1D, Code 93, PLESSEY, 2D, POSTNET, Data Matrix, Interleaved 2/5, QR Code, CODABAR (NW-7), EAN128, MSI, Code 11, Code 128 (A/B/C), UPC-A, UPC-E, MicroPDF417, Code 39, PDF417, GS1 DataBar |
| Number of fonts | 8 |
| Maximum label width | 11.4 cm |
| Maximum label length | 25.4 m |
| Sustainability compliance | Yes |
| Sustainability certificates | ENERGY STAR |
| Compliance certificates | BIS, CB, CCC, CE, EAC, KC, RoHS, WEEE |
| Processor | |
| Built-in processor | Yes |
| Certificates | |
| Certification | FCC Class B, CE Class B, C-Tick Class B, UL, cUL, TÜV/Safety, CCC, RoHS, WEEE |
| Software | |
| Bundled software | Windows labeling |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 60 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 5 - 40 °C |
| Operating relative humidity (H-H) | 25 - 85% |
| Weight & dimensions | |
| Width | 172 mm |
| Depth | 195 mm |
| Height | 165 mm |
| Weight | 1.5 kg |
| Package type | Box |
| Packaging data | |
| Package type | Box |
| Packaging content | |
| Cables included | AC |
| Bundled software | Windows labeling |
