Description

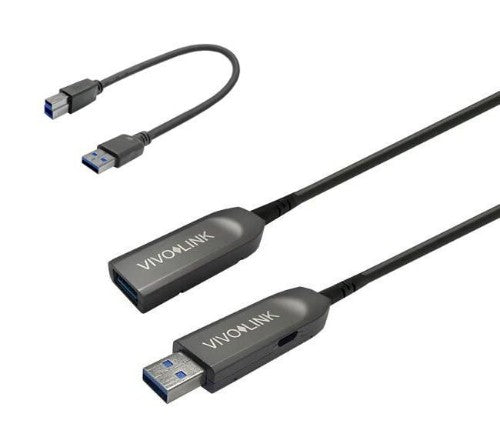

USB 3.0, USB-A male, USB-A female, 10m including USB-A to USB-B cable
Service note:
USB3.0 is still an "open" standard and there might be products on the marked that does not accept fiber extension.
In order to ensure full functionality with USB3.0 extension, we strongly advice to make a connection test before installing products.
Key Features
- USB 1.1 Full Speed
- USB 3.0 support (5 Gbps)
- Two USB amplifiers
- Cable diameter: 3mm
- Minimum cable bend radius: 20mm
- Cable power supply required: Yes, USB type A
- Cable power supply information: 5V 900mA
- Backward compatible with USB 2.0 standard
Description
Optical fiber cable: Vivolink high performance USB cables is ideal for applications requiring long distance signal transmission. 5Gbps USB 3.0 also full support of USB2.0Service note:
USB3.0 is still an "open" standard and there might be products on the marked that does not accept fiber extension.
In order to ensure full functionality with USB3.0 extension, we strongly advice to make a connection test before installing products.
Specifications
| Features | |
|---|---|
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| AWG wire size | 24 |
| USB version | USB 3.2 Gen 1 (3.1 Gen 1) |
| Connector 1 | USB A |
| Connector 2 | USB A |
| Cable length | 10 m |
| Connector contacts plating | Gold |
| Maximum data transfer rate | 5000 Mbit/s |
| Product colour | Black |
| Connector 1 gender | Male |
| Connector 2 gender | Female |
| Conductor material | Copper |
| Maximum data transfer rate | 5 Gbit/s |
| Output current (max) | 5 A |
| Cable diameter | 3 mm |
| Weight | 220 g |
| Quantity per pack | 1 pc(s) |
| Power | |
| Output current (max) | 5 A |
| Weight & dimensions | |
| Cable diameter | 3 mm |
| Cable length | 10 m |
| Width | 184 mm |
| Weight | 220 g |
| Height | 36 mm |
| Depth | 180 mm |
| Package width | 239 mm |
| Package depth | 202 mm |
| Package height | 50 mm |
| Package weight | 304 g |
| Packaging data | |
| Package width | 239 mm |
| Package depth | 202 mm |
| Package height | 50 mm |
| Package weight | 304 g |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Ports & interfaces | |
| USB version | USB 3.2 Gen 1 (3.1 Gen 1) |
| Connector 1 | USB A |
| Connector 2 | USB A |
| Connector contacts plating | Gold |
| Data transmission | |
| Maximum data transfer rate | 5000 Mbit/s |
| Technical details | |
| Product colour | Black |
| Harmonized System (HS) code | 84733080 |
| Compliance certificates | RoHS |
| Other features | |
| Product colour | Black |
| Width | 184 mm |
| Height | 36 mm |
| Depth | 180 mm |
| Compliance certificates | RoHS |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
