Description

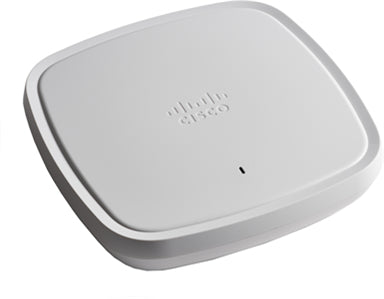

Catalyst 9130AX Access Point: Indoor environments, with external antennas, regulatory domain E
Extending Cisco’s intent-based network and perfect for networks of all sizes, the Cisco Catalyst 9130 Series scales to meet the growing demands of IoT while fully supporting the latest innovations and new technologies. The 9130 Series is also a leader in performance, security, and analytics.
The Cisco Catalyst 9130 Series Access Points, paired with the Cisco Digital Network Architecture (Cisco DNA), are enterprise-class products that will address both your current and future needs. They are the first step in updating your network to take better advantage of all of the features and benefits that Wi-Fi 6 provides.
Description
With the emergence of high-density networks and the Internet of Things (IoT), we are more dependent on wireless networks than ever before. Increasing numbers of devices connect to the network every year, ranging from high-performance client devices to low-bandwidth IoT devices. Cisco Catalyst 9130 Series Access Points provide a seamless experience anywhere for everyone, with high scaling and unmatched performance in diverse network deployments. Going beyond the Wi-Fi 6 (802.11 ax) standard, the 9130 Series provides integrated security, resiliency, and operational flexibility as well as increased network intelligence.Extending Cisco’s intent-based network and perfect for networks of all sizes, the Cisco Catalyst 9130 Series scales to meet the growing demands of IoT while fully supporting the latest innovations and new technologies. The 9130 Series is also a leader in performance, security, and analytics.
The Cisco Catalyst 9130 Series Access Points, paired with the Cisco Digital Network Architecture (Cisco DNA), are enterprise-class products that will address both your current and future needs. They are the first step in updating your network to take better advantage of all of the features and benefits that Wi-Fi 6 provides.
Specifications
| Data transmission | |
|---|---|
| Ethernet LAN data rates | 100,1000,2500,5000 Mbit/s |
| Performance | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Frequency band | 2.4/5 GHz |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at |
| Ethernet LAN data rates | 100,1000,2500,5000 Mbit/s |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Internal memory | 2048 MB |
| Flash memory | 1024 MB |
| Wireless LAN features | |
| Frequency band | 2.4/5 GHz |
| Network | |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at |
| Memory | |
| Internal memory | 2048 MB |
| Flash memory | 1024 MB |
| Features | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Frequency band | 2.4/5 GHz |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at |
| Ethernet LAN data rates | 100,1000,2500,5000 Mbit/s |
| Maximal-Ratio Combining (MRC) | Yes |
| Dynamic Frequency Selection (DFS) | Yes |
| Cyclic Shift Diversity (CSD) | Yes |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Internal memory | 2048 MB |
| Flash memory | 1024 MB |
| Security | |
| Security algorithms | AES, WPA2, WPA3 |
| Ports & interfaces | |
| USB 2.0 ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Power | |
| Power over Ethernet (PoE) | Yes |
| Design | |
| Product colour | Grey |
| Antenna | |
| Antenna type | External |
| Technical details | |
| Harmonized System (HS) code | 85176990 |
| Software | |
| Maximal-Ratio Combining (MRC) | Yes |
| Dynamic Frequency Selection (DFS) | Yes |
| Cyclic Shift Diversity (CSD) | Yes |
| Weight & dimensions | |
| Width | 233 mm |
| Depth | 233 mm |
| Weight | 1.71 kg |
| Height | 40 mm |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | -20 - 50 °C |
| Storage temperature (T-T) | -30 - 70 °C |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 4600 m |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
| Harmonized System (HS) code | 85176990 |
