Description

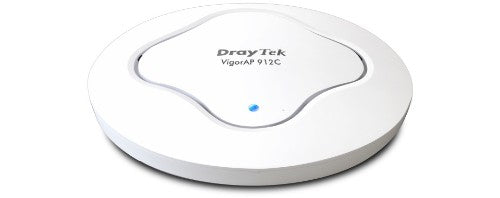

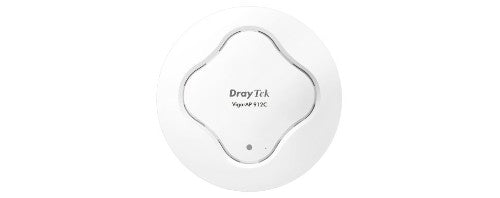

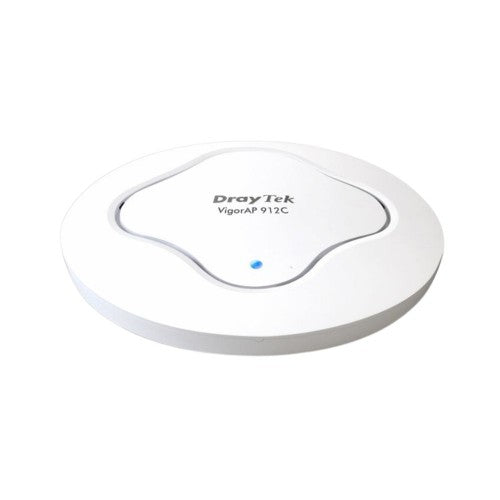

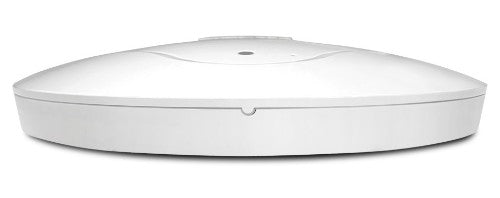

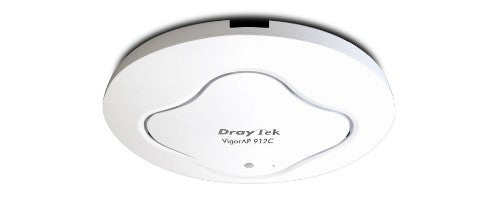

Ceiling Mesh Wireless 802.11ac Range Extender & Access Point, white
The VigorAP 912C is a dual-band 802.11ac Wave 2 Mesh Wireless solution, designed to eliminate wireless drop outs, stuttering videos, slow download speeds, poor signal and Wi-Fi dead zones. One access point acts as the controller (Mesh root) and in total up to 8 access points create an easy to manage wireless mesh. Extend coverage without running expensive cabling.
Initial setup of the VigorAP 912C is easy with the DrayTek Wireless app, whether it's creating a new Mesh network or being set up in AP and Range Extender modes, the Quick Start Wizard assists throughout.
Manage the VigorAP 912C centrally through the VigorACS central management platform, VigorConnect, Router AP Management, or simply on its own as a stand-alone access point. The VigorAP 912C has the flexibility to be used how you need it.
Description
VigorAP 912C is a high-performance Mesh Wireless solution, designed to expand the wireless coverage, eliminate Wi-Fi dead zones and significantly reduce the cost of network deployments. It can also be used as a traditional access point either managed or stand alone so has the flexibility to be used how you need it.The VigorAP 912C is a dual-band 802.11ac Wave 2 Mesh Wireless solution, designed to eliminate wireless drop outs, stuttering videos, slow download speeds, poor signal and Wi-Fi dead zones. One access point acts as the controller (Mesh root) and in total up to 8 access points create an easy to manage wireless mesh. Extend coverage without running expensive cabling.
Initial setup of the VigorAP 912C is easy with the DrayTek Wireless app, whether it's creating a new Mesh network or being set up in AP and Range Extender modes, the Quick Start Wizard assists throughout.
Manage the VigorAP 912C centrally through the VigorACS central management platform, VigorConnect, Router AP Management, or simply on its own as a stand-alone access point. The VigorAP 912C has the flexibility to be used how you need it.
Specifications
| Data transmission | |
|---|---|
| Maximum data transfer rate | 866 Mbit/s |
| Performance | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Wireless isolation | Yes |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| Syslog | Yes |
| Reset button | Yes |
| Firmware upgradeable | Yes |
| Web-based management | Yes |
| VLAN support | Yes |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Channels quantity | 3 channels |
| Maximum data transfer rate | 866 Mbit/s |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Wireless LAN features | |
| Channels quantity | 3 channels |
| Network | |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Security | |
| Cable lock slot | Yes |
| IP address filtering | Yes |
| Security algorithms | HTTPS, WEP, WPA, WPA2, WPA3 |
| MAC address filtering | Yes |
| Service Set Identifier (SSID) features | Hidden SSID, Multiple SSIDs |
| Management features | |
| VLAN support | Yes |
| Syslog | Yes |
| Firmware upgradeable | Yes |
| Web-based management | Yes |
| Local AP management | Telnet |
| Command-line interface (CLI) | Yes |
| Features | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Wireless isolation | Yes |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| VLAN support | Yes |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Channels quantity | 3 channels |
| Maximum data transfer rate | 866 Mbit/s |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Maximum data transfer rate (2.4 GHz) | 300 Mbit/s |
| Maximum data transfer rate (5 GHz) | 866 Mbit/s |
| WLAN channel features | WLAN channel management |
| Protocols | |
| DHCP server | Yes |
| DHCP client | Yes |
| Ports & interfaces | |

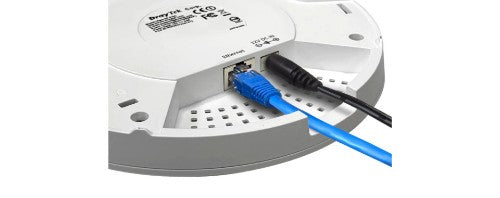

| Internal RJ-45 ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Power | |
| Power consumption (max) | 10 W |
| Output voltage | 12 V |
| Power over Ethernet (PoE) | Yes |
| AC input voltage | 100 - 240 V |
| Design | |
| Placement | Ceiling, Wall |
| Product colour | White |
| Reset button | Yes |
| Cable lock slot | Yes |
| Technical details | |
| Reset button | Yes |
| Firmware upgradeable | Yes |
| Harmonized System (HS) code | 85176990 |
| Compliance certificates | RoHS |
| Software | |
| Local AP management | Telnet |
| Weight & dimensions | |
| Width | 162 mm |
| Weight | 300 g |
| Height | 42 mm |
| Packaging data | |
| Quick start guide | Yes |
| Mounting kit | Yes |
| Cables included | LAN (RJ-45) |
| AC adapter included | Yes |
| Packaging content | |
| Quick start guide | Yes |
| Mounting kit | Yes |
| Cables included | LAN (RJ-45) |
| AC adapter included | Yes |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 45 °C |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
| Harmonized System (HS) code | 85176990 |
