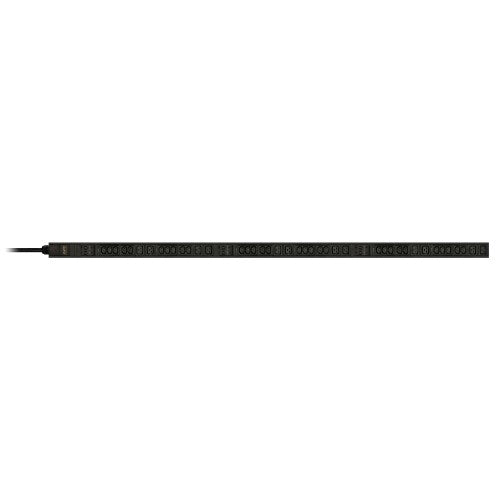

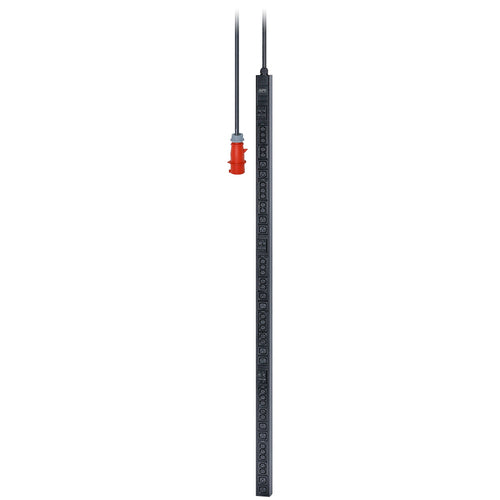

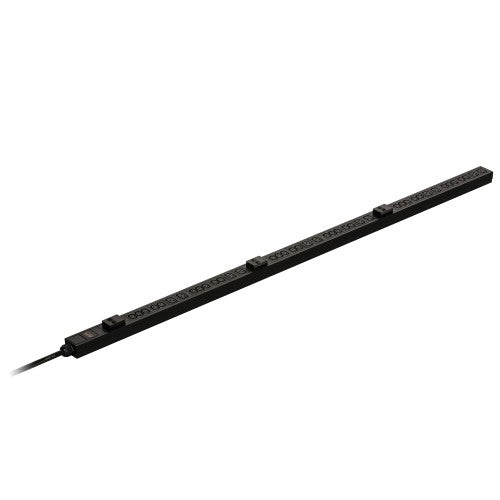

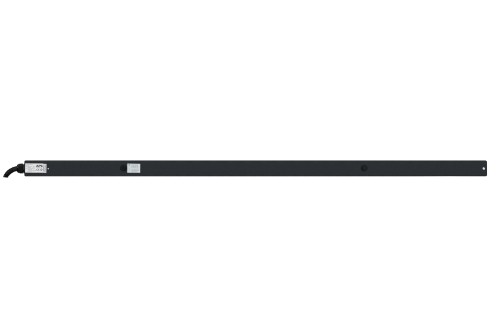

Easy Rack PDU, Basic, 0U, 3 Phase, 22kW, 230V, 32A, 30 x C13 and 12 x C19 outlets, IEC60309 3P+N+PE inlet
Description
APC Easy Basic Rack PDU EPDU1232B is Easy-to-install and easy-to-use PDU, making rack power distribution easy. This offers more than a power strip for server rack and network rack solutions. This is Vertical rack mountable PDU in ultra light weight upto 50% weight reduction with Aluminum housing. This is integrated with Hydraulic-magnetic circuit breakers (in units with 32A input current). EPDU1216B has IEC 309 32A 3P+N+E type inlet, Thirty IEC C13 and twelve IEC C19 type outlet sockets. This can operate from -5° to +45°C temperation range and comes with 1 year of standard warranty. Easily mounts vertically in racks or enclosures and occupies zero U of valuable rack space, which allows more equipment in the rack. The packaging includes installation guide, toolless mounting kit and mounting brackets for quick and easy mounting in the rear of the enclosure. Saves time and money during installation by using one branch whip and standard connections. Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements.
Specifications
| Design |
|---|
| Type |
Three-phase |
| PDU types |
Basic |
| Mounting |
Vertical |
| Product colour |
Black |
| Certification |
CE, TUV |
| Rack capacity |
0U |
| Ports & interfaces |
|---|
| AC outlets quantity |
42 AC outlet(s) |
| AC outlet types |
C13 coupler, C19 coupler |
| Power plug |
IEC 60309 |
| Features |
|---|
| Cable length |
2 m |
| Certification |
CE, TUV |
| Ergonomics |
|---|
| Cable length |
2 m |
| Power |
|---|
| Maximum power |
22000 W |
| Nominal input voltage |
400 V |
| Nominal output voltage |
230 V |
| Maximum current |
32 A |
| Maximum input current per phase |
32 A |
| Load capacity |
22080 VA |
| AC input frequency |
50 - 60 Hz |
| Weight & dimensions |
|---|
| Weight |
5.14 kg |
| Width |
62 mm |
| Depth |
44 mm |
| Height |
1794 mm |
| Package width |
160 mm |
| Package depth |
110 mm |
| Package height |
1950 mm |
| Package weight |
6.2 kg |
| Packaging data |
|---|
| Package width |
160 mm |
| Package depth |
110 mm |
| Package height |
1950 mm |
| Package weight |
6.2 kg |
| Packaging content |
|---|
| Manual |
Yes |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-5 - 45 °C |
| Storage temperature (T-T) |
-25 - 65 °C |
| Storage relative humidity (H-H) |
5 - 95% |
| Operating relative humidity (H-H) |
5 - 95% |
| Operating altitude |
0 - 3000 m |
| Non-operating altitude |
0 - 15000 m |
| Technical details |
|---|
| Total carbon footprint (kg of CO2e) |
127.67 |
