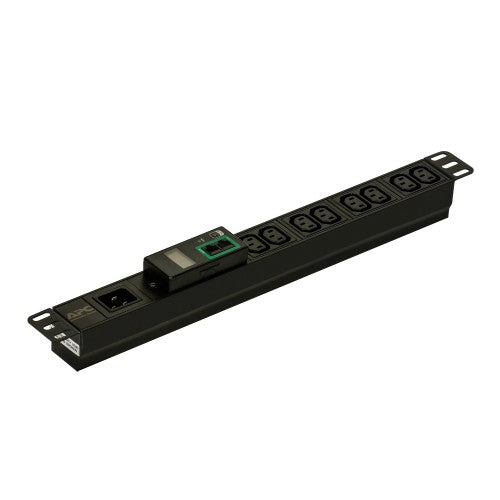

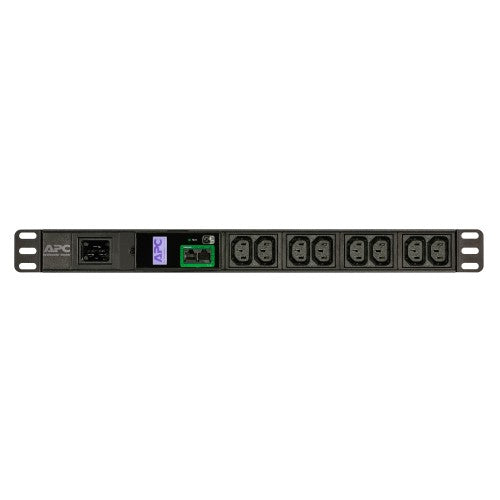

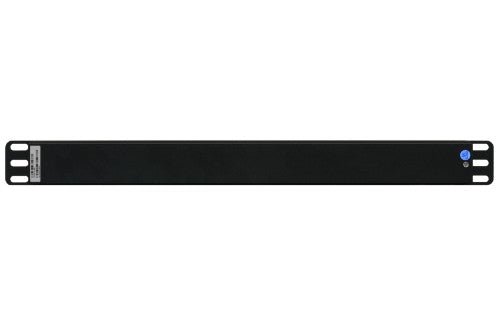

Easy Rack PDU, Metered, 1U, 1 Phase, 3.7kW, 230V, 16A, 8 x C13 outlets, IEC60320 C20 inlet
Description

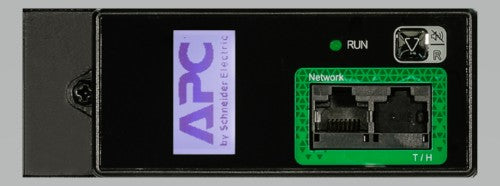

APC Easy Metered Rack PDU EPDU1016M is Easy-to-install and easy-to-use PDU, making rack power distribution easy and intelligent. This provides real-time remote monitoring, power management of connected loads, and much more features than the average power strip. EPDU1016M has IEC 60320 C20 200-240V type inlet and eight IEC C13 type outlet sockets. This is horizontal rack mountable PDU in ultra light weight and smart, multifunctional new designed display. Full-featured user friendly network management web interface provides standards-based management via Web, SNMP, and Command Line Interface. Allows users to access, configure, and manage units from remote locations to save valuable time. Indicates overload and warning conditions based on the user-defined alarm thresholds. Alerts users of potential overloaded circuits. Quickly and easily upgrade firmware via network download for future product enhancements. Eliminates the need to replace products already installed in the field when new features are released. The packaging includes cable, installation guide, user manual and horizontal mounting brackets for quick and easy mounting in the rear of the enclosure. This can operate from -5° to +45°C temperation range and comes with 1 year of standard warranty. Full-featured network management interfaces that provide standards-based management via Web, SNMP, and Command Line Interface. Define alarm thresholds in order to avoid overloaded circuits. Network and visual alarms inform the user of possible problems.
Specifications
| Design |
|---|
| On/off switch |
No |
| Type |
Single-phase |
| PDU types |
Metered |
| Mounting |
Horizontal |
| Display |
LCD |
| Product colour |
Black |
| Certification |
CE, TUV |
| Rack capacity |
1U |
| Housing material |
Aluminium |
| Ports & interfaces |
|---|
| AC outlets quantity |
8 AC outlet(s) |
| AC outlet types |
C13 coupler |
| Power plug |
C20 coupler |
| Features |
|---|
| Cable length |
2.5 m |
| LED indicators |
Yes |
| Certification |
CE, TUV |
| Daisy chain |
No |
| Management features |
|---|
| Firmware upgradeable |
Yes |
| Monitoring |
Current, Power, Voltage |
| Ergonomics |
|---|
| Cable length |
2.5 m |
| LED indicators |
Yes |
| Display |
LCD |
| Power |
|---|
| Maximum power |
3680 W |
| Nominal input voltage |
200/208/230 V |
| Nominal output voltage |
208/230 V |
| Maximum current |
16 A |
| Maximum input current per phase |
16 A |
| Load capacity |
3680 VA |
| AC input frequency |
50 - 60 Hz |
| Certificates |
|---|
| Certification |
CE, TUV |
| Compliance certificates |
RoHS |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-5 - 45 °C |
| Storage temperature (T-T) |
-25 - 65 °C |
| Storage relative humidity (H-H) |
5 - 95% |
| Operating relative humidity (H-H) |
5 - 95% |
| Operating altitude |
0 - 3000 m |
| Non-operating altitude |
0 - 15000 m |
| Weight & dimensions |
|---|
| Weight |
700 g |
| Width |
482 mm |
| Depth |
44 mm |
| Height |
44 mm |
| Package width |
560 mm |
| Package depth |
150 mm |
| Package height |
80 mm |
| Package weight |
1.4 kg |
| Packaging content |
|---|
| Manual |
Yes |
| Packaging data |
|---|
| Package width |
560 mm |
| Package depth |
150 mm |
| Package height |
80 mm |
| Package weight |
1.4 kg |
| Technical details |
|---|
| Total carbon footprint (kg of CO2e) |
5177.36 |
| Compliance certificates |
RoHS |
| Logistics data |
|---|
| Total carbon footprint (kg of CO2e) |
5177.36 |
