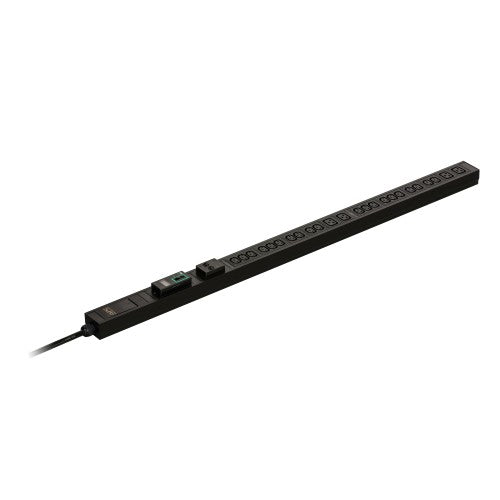

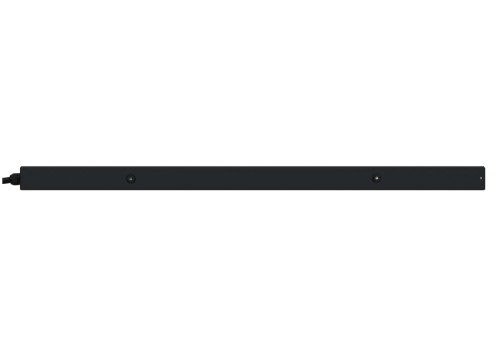

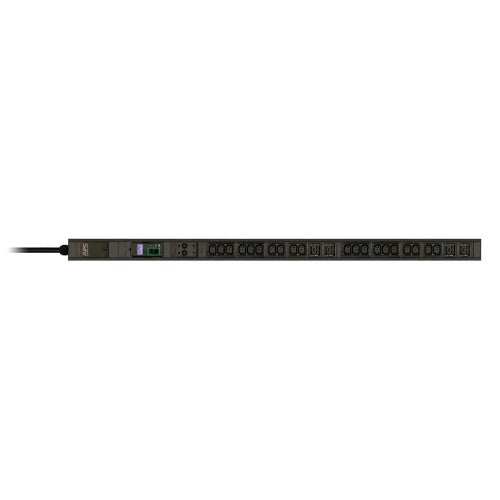

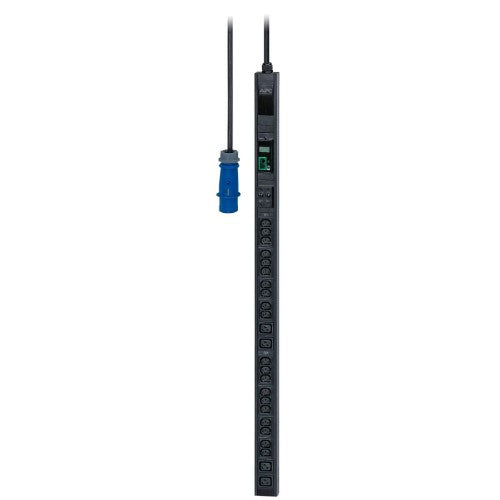

Easy Rack PDU, Metered, 0U, 1 Phase, 7.4kW, 230V, 32A, 20 x C13 and 4 x C19 outlets, IEC60309 2P+E inlet
Description
APC Easy Metered Rack PDU EPDU1132M is Easy-to-install and easy-to-use PDU, making rack power distribution easy and intelligent. This provides real-time remote monitoring, power management of connected loads, and much more features than the average power strip. EPDU1132M has IEC 60309 16A 2P+E type inlet, twenty IEC C13 and four IEC C19 type outlet sockets. This is integrated with Hydraulic-magnetic circuit breakers (in units with 32A input current). This is vertical rack mountable PDU in ultra light weight and smart, multifunctional new designed display. Easily mounts vertically in racks or enclosures and occupies zero U of valuable rack space, which allows more equipment in the rack. Full-featured user friendly network management web interface provides standards-based management via Web, SNMP, and Command Line Interface. Allows users to access, configure, and manage units from remote locations to save valuable time. Indicates overload and warning conditions based on the user-defined alarm thresholds. Alerts users of potential overloaded circuits. Quickly and easily upgrade firmware via network download for future product enhancements. Eliminates the need to replace products already installed in the field when new features are released. The packaging includes installation guide, user manual toolless mounting kit and vertical mounting brackets for quick and easy mounting in the enclosure. This can operate from -5° to +45°C temperation range and comes with 1 year of standard warranty.
Specifications
| Design |
|---|
| On/off switch |
No |
| Type |
Single-phase |
| PDU types |
Metered |
| Mounting |
Vertical |
| Display |
LCD |
| Product colour |
Black |
| Certification |
CE, TUV |
| Rack capacity |
0U |
| Housing material |
Aluminium |
| Ports & interfaces |
|---|
| AC outlets quantity |
24 AC outlet(s) |
| AC outlet types |
C13 coupler, C19 coupler |
| Power plug |
IEC 60309 |
| Features |
|---|
| LED indicators |
Yes |
| Certification |
CE, TUV |
| Management features |
|---|
| Firmware upgradeable |
Yes |
| Ergonomics |
|---|
| LED indicators |
Yes |
| Display |
LCD |
| Power |
|---|
| Maximum power |
7360 W |
| Nominal input voltage |
200/208/230 V |
| Nominal output voltage |
230 V |
| Maximum current |
32 A |
| Maximum input current per phase |
32 A |
| Load capacity |
7360 VA |
| AC input frequency |
50 - 60 Hz |
| Certificates |
|---|
| Certification |
CE, TUV |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-5 - 45 °C |
| Storage temperature (T-T) |
-25 - 65 °C |
| Storage relative humidity (H-H) |
5 - 95% |
| Operating relative humidity (H-H) |
5 - 95% |
| Operating altitude |
0 - 3000 m |
| Non-operating altitude |
0 - 15000 m |
| Weight & dimensions |
|---|
| Weight |
3.72 kg |
| Width |
62 mm |
| Depth |
44 mm |
| Height |
1175 mm |
| Package width |
160 mm |
| Package depth |
110 mm |
| Package height |
1320 mm |
| Package weight |
4.48 kg |
| Packaging content |
|---|
| Manual |
Yes |
| Packaging data |
|---|
| Package width |
160 mm |
| Package depth |
110 mm |
| Package height |
1320 mm |
| Package weight |
4.48 kg |
| Technical details |
|---|
| Total carbon footprint (kg of CO2e) |
28890.42 |
| Logistics data |
|---|
| Total carbon footprint (kg of CO2e) |
28890.42 |
