995 W, 100 - 240 V AC, 52/11.5 V DC, 1.3" Color Touch Panel, 1 x 10/100/1000 Mbps RJ45 Port , 6 x RPS DC Ports, 1U,
Key Features
- (6) USP DC output ports
- (1) Ethernet port
- 1U Rackmountable (kit included)
- 1.3" Touchscreen display with status information
- Managed by UniFi Network Controller version: 5.12.11 or later
Description

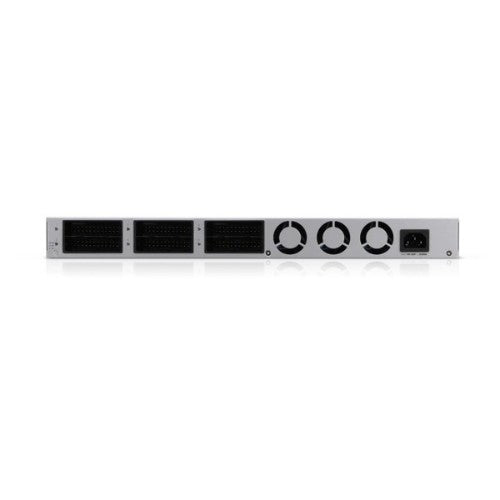

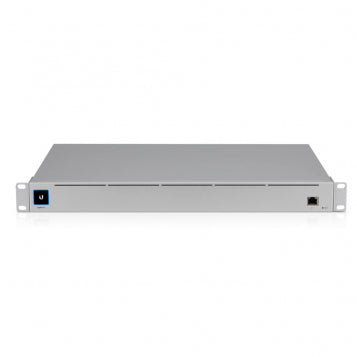

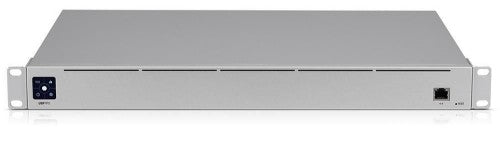

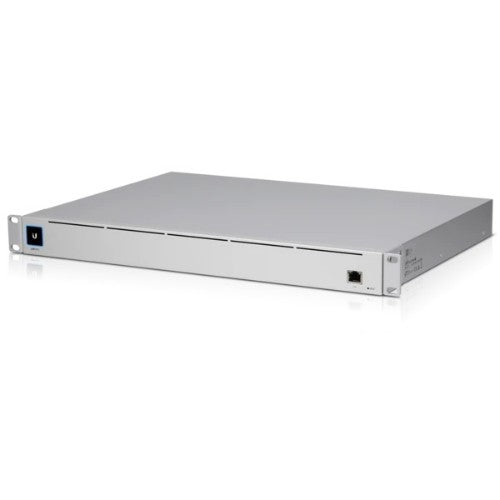

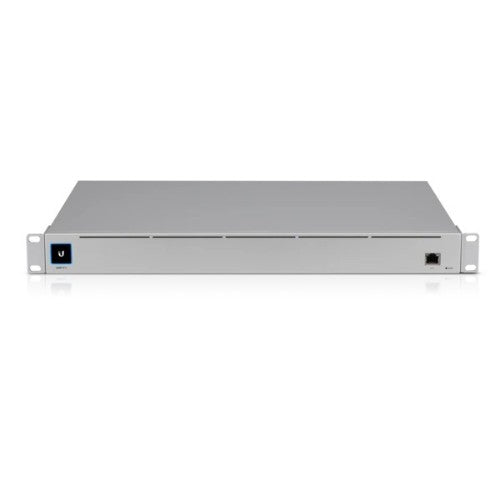

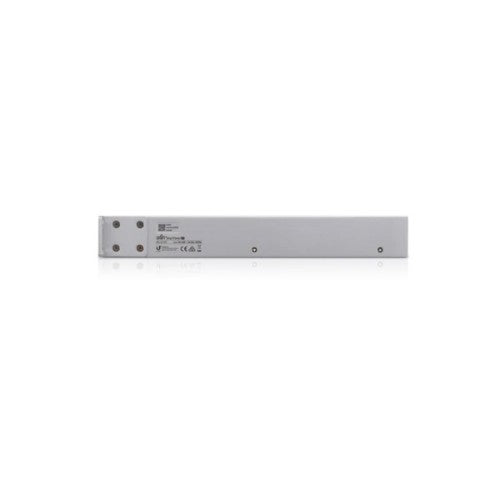

The UniFi® SmartPower Redundant Power System, model USP-RPS, is a proprietary redundant power system designed to protect up to six UniFi SmartPower supported devices from sudden power supply module failure. The USP-RPS continually monitors all attached devices. In the event of an internal AC/DC power supply failure, failover is automatic so your network continues to operate with no interruption in service. With a 950W DC power budget, the USP-RPS can protect a variety of high-power devices, including UniFi PoE switches. An integrated 1.3" color touchscreen LCM displays system information for convenient monitoring.
Specifications
| Cooling |
|---|
| Cooling type |
Active |
| Design |
|---|
| Certification |
CE, FCC, IC |
| Product colour |
Grey |
| LED indicators |
Activity, Link, Status |
| Cooling type |
Active |
| Power |
|---|
| Total power |
995 W |
| AC input voltage |
100 - 240 V |
| Performance |
|---|
| Power supply unit (PSU) form factor |
1U |
| Certification |
CE, FCC, IC |
| Harmonized System (HS) code |
84733020 |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-5 - 45 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Weight & dimensions |
|---|
| Width |
442.4 mm |
| Depth |
325.6 mm |
| Height |
43.7 mm |
| Weight |
5.5 kg |
| Certificates |
|---|
| Certification |
CE, FCC, IC |
| Logistics data |
|---|
| Harmonized System (HS) code |
84733020 |
| Other features |
|---|
| Harmonized System (HS) code |
84733020 |
