Description

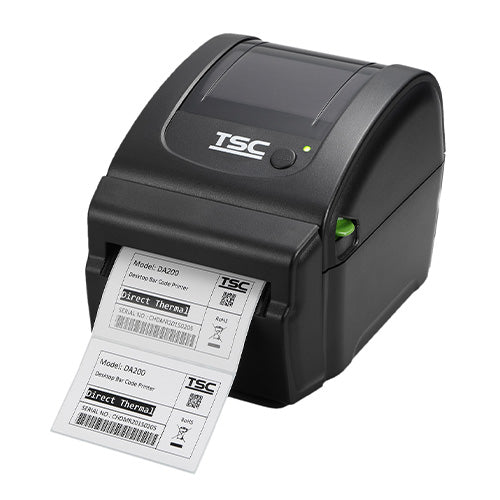

DA310 USB only
The DA Series is a perfect combination of affordability with a durable and reliable design. The DA series offers both 203 and 300 dpi print resolution with printing speeds up to a fast 6 ips. The large 60-watt power supply produces high quality printed labels, even at its fastest print speeds.
4 Models Available
The DA Series consists of four models, the DA210, DA220, DA310, and DA320, designed to provide the right fit for your application. All four models handle up to 5-inch OD rolls of direct thermal labels and can print crisp, clear barcodes, graphics and text at up to 6-inches per second.
Affordable
The low cost DA210 and DA310 models are priced right and have the features you need for most basic label printing needs using a USB 2.0 or optional Bluetooth interface.
Wireless and Hardwire Communications
Need more communications power? The DA220 and DA320 models have more memory and support nearly every major communications option including Serial RS-232, Ethernet, USB host, internal 802.11 a/b/g/n wireless, or internal Bluetooth.
Emulations and More
The DA220 and DA230 models have plenty of memory with 128 MB Flash & 64 MB SDRAM that can be used for easy storage of fonts, international character sets, and graphics. Right out of the box, it supports a fully compatible set of standard industry emulations, including Line Mode, Eltron®, Zebra® and Datamax languages, making it easy to replace old installed hardware.
Key Features
- Small Parcel Shipping
- Mail Room Address and Routing Labels
- Shipping & Receiving
- Entertainment and Transportation Ticketing
- Retail Point-of-Sale
- File-Folder Labeling
Description
The DA Series of direct thermal desktop printers is ideal for a wide variety of applications including product marking, point of sale, retail, small office, shipping labels, and other labeling and tag applications at a very competitive price.The DA Series is a perfect combination of affordability with a durable and reliable design. The DA series offers both 203 and 300 dpi print resolution with printing speeds up to a fast 6 ips. The large 60-watt power supply produces high quality printed labels, even at its fastest print speeds.
4 Models Available
The DA Series consists of four models, the DA210, DA220, DA310, and DA320, designed to provide the right fit for your application. All four models handle up to 5-inch OD rolls of direct thermal labels and can print crisp, clear barcodes, graphics and text at up to 6-inches per second.
Affordable
The low cost DA210 and DA310 models are priced right and have the features you need for most basic label printing needs using a USB 2.0 or optional Bluetooth interface.
Wireless and Hardwire Communications
Need more communications power? The DA220 and DA320 models have more memory and support nearly every major communications option including Serial RS-232, Ethernet, USB host, internal 802.11 a/b/g/n wireless, or internal Bluetooth.
Emulations and More
The DA220 and DA230 models have plenty of memory with 128 MB Flash & 64 MB SDRAM that can be used for easy storage of fonts, international character sets, and graphics. Right out of the box, it supports a fully compatible set of standard industry emulations, including Line Mode, Eltron®, Zebra® and Datamax languages, making it easy to replace old installed hardware.
Specifications
| Print quality | |
|---|---|
| Maximum resolution | 300 x 300 DPI |
| Maximum printing width | 10.6 cm |
| Printing | |
| Rotated printing | Yes |
| Colour | No |
| Print speed | 102 mm/sec |
| Maximum resolution | 300 x 300 DPI |
| Maximum printing width | 10.6 cm |
| Print technology | Direct thermal |
| Number of printable dots | 12 dot |
| Display | |
| Display | No |
| Network | |
| Wi-Fi | No |
| Ethernet LAN | No |
| Memory | |
| Internal memory | 16 MB |
| Flash memory | 8 MB |
| Paper handling | |
| Supported paper width | 19 - 114 mm |
| Media thickness | 0.055 - 0.19 mm |
| Maximum roll diameter | 12.7 cm |
| Maximum media length | 101.6 cm |
| Ports & interfaces | |
| USB 2.0 ports quantity | 1 |
| Connectivity technology | Wired |
| Bluetooth | No |
| Wi-Fi | No |
| Ethernet LAN | No |
| USB port | Yes |
| Performance | |
| Built-in barcodes | AZTECCODE, Code 11, Code 128 (A/B/C), Code 39, Code 93, Data Matrix, EAN128, EAN13, EAN8, GS1 DataBar, Interleaved 2/5, MaxiCode, MicroPDF417, PDF417, POSTNET, QR Code, UPC-A, UPC-E |
| Internal memory | 16 MB |
| Flash memory | 8 MB |
| Built-in processor | Yes |
| Certification | FCC Class A, CE Class A, RCM, CB, CCC, ENERGY STAR, KC, BIS, UL, EAC |
| Page description languages | DPL, EPL, ZPL, ZPL II |
| Design | |
| Display | No |
| Product colour | Black |
| Built-in display | No |
| Certification | FCC Class A, CE Class A, RCM, CB, CCC, ENERGY STAR, KC, BIS, UL, EAC |
| Power | |
| AC adapter output voltage | 24 V |
| AC adapter output current | 2.5 A |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Technical details | |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Product colour | Black |
| Built-in barcodes | AZTECCODE, Code 11, Code 128 (A/B/C), Code 39, Code 93, Data Matrix, EAN128, EAN13, EAN8, GS1 DataBar, Interleaved 2/5, MaxiCode, MicroPDF417, PDF417, POSTNET, QR Code, UPC-A, UPC-E |
| Processor | |
| Built-in processor | Yes |
| Certificates | |
| Certification | FCC Class A, CE Class A, RCM, CB, CCC, ENERGY STAR, KC, BIS, UL, EAC |
| System requirements | |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 60 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 5 - 40 °C |
| Operating relative humidity (H-H) | 25 - 85% |
| Weight & dimensions | |
| Width | 172 mm |
| Depth | 195 mm |
| Height | 165 mm |
| Weight | 1.5 kg |
| Packaging content | |
| Cables included | AC, USB |
