Description
48x 10/100/1000, 4x 10G SFP+, 2x 40G QSFP+, PoE, 800 W, 443 x 352 x 44 mm
If you are looking for a single switch that will put your network setup ahead of the curve and power all the necessary devices – look no further! The new CRS354-48P-4S+2Q+RM is an effective and adaptable rackmount solution for managing networks in the most demanding environments. Unlike many other switches out there, our products are made with the system administrator in mind.

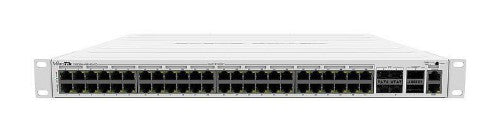

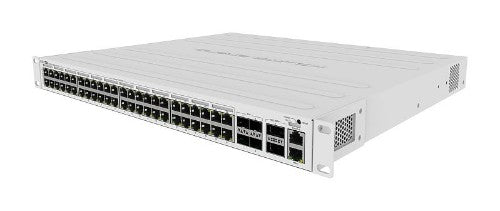

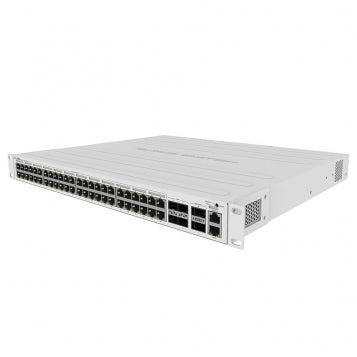

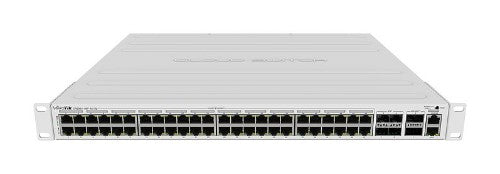

This powerful switch has 48 x 1G RJ45 ports and 4 x 10G SFP+ ports. There are also 2 x 40G QSFP+ ports for extremely fast fiber connections or linking with other 40 Gbps devices. All 48 Ethernet ports offer different power output options: Passive PoE, low voltage PoE, 802.3af/at (Type 1 “PoE” / Type 2 “PoE+”) with auto-sensing, making this switch the easiest solution to power even the largest setups. We have included a mighty power supply that can provide 750 W of power – this switch can handle a lot. And there is a special bracket for easy cable management.
CRS354-48P-4S+2Q+RM is extremely functional, and it has the best price-point on the market – it will make the perfect addition to a professional setup.
The total non-blocking throughput is 168 Gbps, switching capacity is 336 Gbps and the forwarding rate reaches 235 Mpps.
Description
The 48 port champion you’ve been waiting for - now with PoE-out!If you are looking for a single switch that will put your network setup ahead of the curve and power all the necessary devices – look no further! The new CRS354-48P-4S+2Q+RM is an effective and adaptable rackmount solution for managing networks in the most demanding environments. Unlike many other switches out there, our products are made with the system administrator in mind.
This powerful switch has 48 x 1G RJ45 ports and 4 x 10G SFP+ ports. There are also 2 x 40G QSFP+ ports for extremely fast fiber connections or linking with other 40 Gbps devices. All 48 Ethernet ports offer different power output options: Passive PoE, low voltage PoE, 802.3af/at (Type 1 “PoE” / Type 2 “PoE+”) with auto-sensing, making this switch the easiest solution to power even the largest setups. We have included a mighty power supply that can provide 750 W of power – this switch can handle a lot. And there is a special bracket for easy cable management.
CRS354-48P-4S+2Q+RM is extremely functional, and it has the best price-point on the market – it will make the perfect addition to a professional setup.
The total non-blocking throughput is 168 Gbps, switching capacity is 336 Gbps and the forwarding rate reaches 235 Mpps.
Specifications
| Management features | |
|---|---|
| Switch type | Managed |
| Switch layer | L3 |
| Ports & interfaces | |
| SFP+ module slots quantity | 4 |
| QSFP+ module slots quantity | 2 |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 48 |
| Fast Ethernet (copper) ports quantity | 1 |
| Console port | RJ-45 |
| Network | |
| Networking standards | IEEE 802.3af, IEEE 802.3at |
| 10G support | Yes |
| Design | |
| Form factor | 1U |
| Rack mounting | Yes |
| Certification | CE/RED, EAC, RoHS |
| Performance | |
| Memory type | Flash |
| Internal memory | 128 MB |
| Flash memory | 32 MB |
| Built-in processor | Yes |
| Processor model | Qualcomm Atheros QCA9531 |
| Power | |
| Power consumption (max) | 800 W |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| Power consumption (typical) | 85 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) power per port | 30 W |
| Power over Ethernet (PoE) ports quantity | 48 |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) voltage | 53 V |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 60 °C |
| Weight & dimensions | |
| Width | 443 mm |
| Depth | 382 mm |
| Height | 44 mm |
| Packaging content | |
| Rack mount kit | Yes |
| Cables included | AC |
| Screws included | Yes |
| Packaging data | |
| Screws included | Yes |
| Rack mount kit | Yes |
| Cables included | AC |
| Technical details | |
| Form factor | 1U |
| Rack mounting | Yes |
| Built-in processor | Yes |
| Memory | |
| Memory type | Flash |
| Internal memory | 128 MB |
| Flash memory | 32 MB |
| Certificates | |
| Certification | CE/RED, EAC, RoHS |
