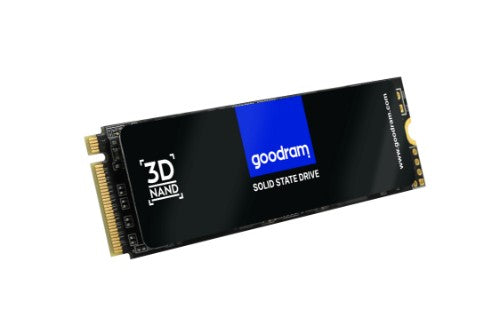

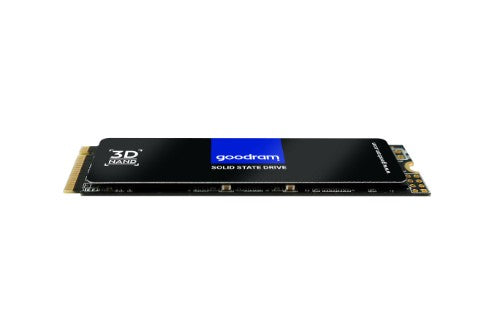

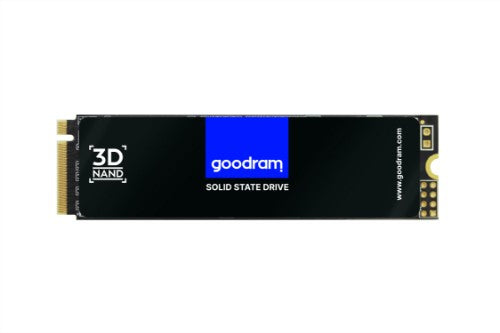

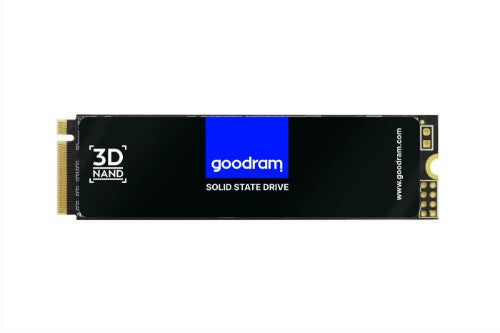

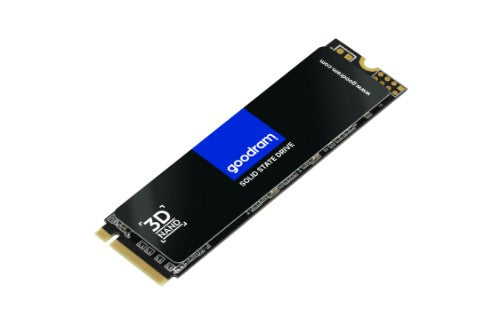

1 TB, M.2, PCIe NVMe gen 3 x4, 2280, 3D NAND, SMI 2263XT
Key Features
- PCIe gen 3 x4 interface
- NVMe 1.3 support
- dissipating thermal pad
Description
By providing up to 4x better sequential and random transfer performance compared to SATA III Solid State Drives and lower latency than AHCI drives, GOODRAM PX500 pumps-up your PC. The performance will improve the work of more demanding customers, offering a reading of up to 2050MB/s. It is also perfect as a stand-alone drive, as well as an add-on to a hard disk in desktops and laptops. Available capacities for the PX500 make the drive work in both roles.
High performance
By creating a disk based on efficient memory in 3D TLC technology and the SMI 2263XT controller, we managed to achieve sequential transfer parameters of up to 2050 MB/s for reading and 1650 MB/s for write and 173 000 read operations and 143 000 write operations per second (IOPS).
New possibilities with NVMe
NVM Express communication protocol was designed from the ground up to achieve the potential of fast flash based storage media. By utilizing it in PX500 SSD, we were able to extract the maximum performance from its memory, controller and PCIe Gen 3 x4 interface. NVMe drastically reduces latency and queuing to bring much better responsiveness vs. AHCI-based SSD.
Heat under control
One of the problems that concerns M.2 SSD format is the thermal throttling – limitation of efficiency due to too high ambient temperature. To get it under control, PX500 have special coating consisting of copper and graphite. Thanks to this, we have obtained very good heat dissipation, without increasing the size of the disk.
Specifications
| Hard drive |
|---|
| PCI Express interface data lanes |
x4 |
| SSD capacity |
1000 GB |
| Memory type |
3D NAND |
| Data transmission |
|---|
| Read speed |
2050 MB/s |
| Write speed |
1650 MB/s |
| Random write (4KB) |
143000 IOPS |
| Random read (4KB) |
171000 IOPS |
| Endurance |
|---|
| Mean time between failures (MTBF) |
2000000 h |
| Performance |
|---|
| Interface |
PCI Express 3.0 |
| Component for |
PC/notebook |
| Controller type |
SMI2263XT |
| NVMe |
Yes |
| TBW rating |
660 |
| PCI Express interface data lanes |
x4 |
| SSD capacity |
1000 GB |
| Read speed |
2050 MB/s |
| Write speed |
1650 MB/s |
| Memory type |
3D NAND |
| Random write (4KB) |
143000 IOPS |
| Random read (4KB) |
171000 IOPS |
| Mean time between failures (MTBF) |
2000000 h |
| Design |
|---|
| Component for |
PC/notebook |
| SSD form factor |
M.2 |
| Features |
|---|
| Interface |
PCI Express 3.0 |
| Component for |
PC/notebook |
| Controller type |
SMI2263XT |
| NVMe |
Yes |
| TBW rating |
660 |
| PCI Express interface data lanes |
x4 |
| SSD capacity |
1000 GB |
| Read speed |
2050 MB/s |
| Write speed |
1650 MB/s |
| Memory type |
3D NAND |
| Random write (4KB) |
143000 IOPS |
| Random read (4KB) |
171000 IOPS |
| Mean time between failures (MTBF) |
2000000 h |
| SSD form factor |
M.2 |
| Harmonized System (HS) code |
84717070 |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 70 °C |
| Storage temperature (T-T) |
-45 - 85 °C |
| Technical details |
|---|
| Interface |
PCI Express 3.0 |
| Operating temperature (T-T) |
0 - 70 °C |
| Storage temperature (T-T) |
-45 - 85 °C |
| SSD form factor |
M.2 |
| Weight & dimensions |
|---|
| Package width |
180 mm |
| Package depth |
330 mm |
| Package height |
70 mm |
| Package weight |
27 g |
| Width |
80 mm |
| Height |
22 mm |
| Depth |
3.5 mm |
| Packaging data |
|---|
| Package width |
180 mm |
| Package depth |
330 mm |
| Package height |
70 mm |
| Package weight |
27 g |
| Products per master (outer) case |
15 pc(s) |
| Logistics data |
|---|
| Products per master (outer) case |
15 pc(s) |
