Description
CAC-1331 - HDMI™ to DisplayPort™ 1.2 4K60Hz M/F Active Adapter
Please use one of our (Extension)HDMI™ and/or DisplayPort™ cables
to connect from the adapter to your devices: In case you need
assistance to choose the correct cable, please visit our website
www.club-3d.com or feel free to mail us at support@club-3d.com and it will be our pleasure to assist you.
Key Features
- EAN code: 8719214471484
- UPC code: 841615101665
- HDMI™ 2.0 support
- HDCP1.4/2.2
- 8/10/12-bit Deep Color
- Status and Control Data Channel (SCDC)
- DisplayPort™ 1.2 support:
- DP1.2a compliant
- Resolution up to 4K60Hz
- Support Four Lanes with 1.62Gbps (RBR), 2.7Gbps (HBR) or 5.4Gbps (HBR2) Data RateSupport 8/10/12-bit Deep Color
- Support Hot-Plug Detect
- Gold plated connectors
- Input: 1x HDMI™ (Male), 1x USB Type A for power
- Output:DisplayPort™ 1.2 (Female)
Description

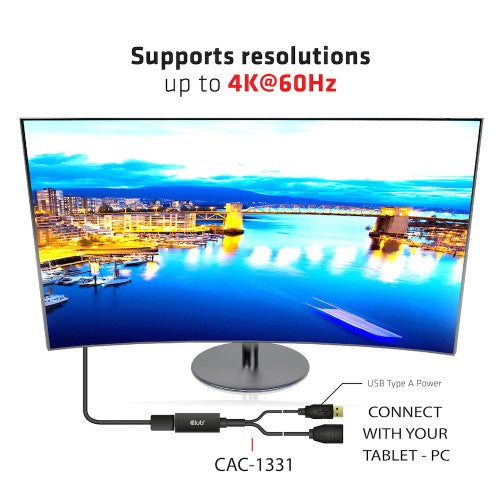

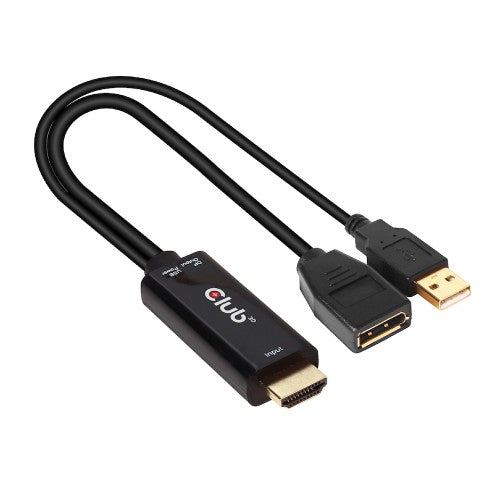

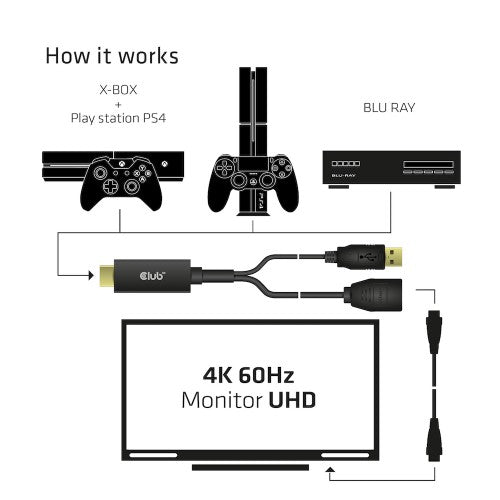

The Club 3D CAC-1331 is an HDMI™ to DisplayPort™ 1.2 Active Adapter which allows you to transmit a HDMI™ signal into a DisplayPort™signal. This product supports DP1.2 specification with resolution up to 4096 x 2160@60Hz. Besides, it is equipped with USB Type A port to supply power in case there isn’t enough power from HDMI™ source. This Adapter is Uni-Directional.Please use one of our (Extension)HDMI™ and/or DisplayPort™ cables
to connect from the adapter to your devices: In case you need
assistance to choose the correct cable, please visit our website
www.club-3d.com or feel free to mail us at support@club-3d.com and it will be our pleasure to assist you.
Specifications
| Ports & interfaces | |
|---|---|
| DisplayPort version | 1.2 |
| Connector 2 | DisplayPort |
| Connector 1 | HDMI |
| Cable length | 0.25 m |
| Technical details | |
| Maximum resolution | 4096 x 2160 pixels |
| Product colour | Black |
| Cable length | 0.25 m |
| Country of origin | China |
| Compliance certificates | RoHS |
| Design | |
| Product colour | Black |
| Certification | Meets ROHS, FCC, and CE EMI requirements |
| Cable length | 0.25 m |
| Performance | |
| Country of origin | China |
| Maximum refresh rate | 60 Hz |
| Maximum resolution (HDMI) | 4096 x 2160 pixels |
| DisplayPort version | 1.2 |
| Maximum resolution | 4096 x 2160 pixels |
| Compatible operating systems | ALL |
| Product colour | Black |
| Certification | Meets ROHS, FCC, and CE EMI requirements |
| System requirements | |
| Compatible operating systems | ALL |
| Certificates | |
| Certification | Meets ROHS, FCC, and CE EMI requirements |
| Weight & dimensions | |
| Width | 48 mm |
| Weight | 42 g |
| Height | 21 mm |
| Depth | 11 mm |
| Packaging data | |
| Package weight | 18 g |
| Other features | |
| Country of origin | China |
