Description

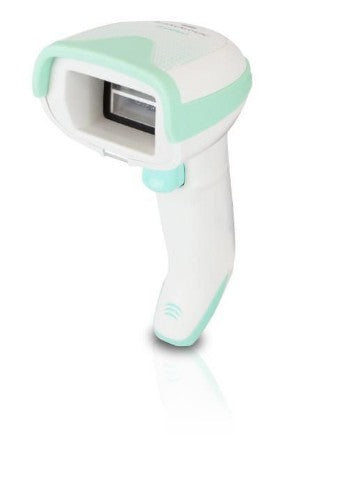

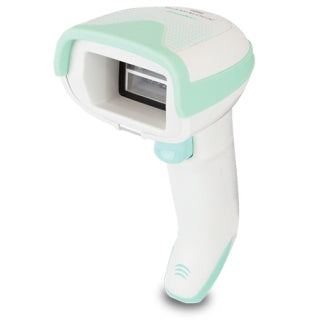

Gryphon GM4500, Kit, USB, 433 MHz, High Density, Health Care, BPOC (Kit includes scanner, WLC4090-HC-433 base and USB cable 90A052278)-
The key mission of scanners in the healthcare industry is to improve the quality of patient care while reducing medication errors. Additionally, healthcare environments have requirements that
scanners need to be regularly cleaned and disinfected. The Datalogic Gryphon™ HC product series is specifically developed for healthcare applications with Disinfectant-Ready enclosures treated with antimicrobial additives and are designed to withstand daily cleaning with harsh disinfectant solutions.
The Gryphon 4500-HC 2D readers can decode virtually any 1D and 2D bar code symbology and can read codes from LCD monitors, cell phones, smartphones and other mobile devices. High Density (HD) models are also available for reading smaller, condensed codes.
Ideally suited for stationary applications in administration, laboratory and hospital environments, the GD4500-HC 2D desktop model offers an affordable corded solution, while the GM4500-HC 2D or GBT4500-HC 2D cordless models (STAR or Bluetooth®) provide extended mobility for cordless operations.
Datalogic’s distinctive reading technology with highly visible white or red-illumination is easier on the human eyes and reads colored labels better. The highly visible 4-Dot aimer provides a clear indication of the reading area, making targeting codes quick and easy. Datalogic’s patented ‘Green Spot’ technology provides additional visual good-read confirmation which is ideal for quiet environments such as bedside patient care.
The vibration option coupled with the silent operating mode can also be set to further increase the patients’ comfort. One of the most important technical innovations that the Gryphon 4500 wireless readers achieve is the wireless charging system for the battery, which enhances the reliability of the entire solution, while lowering the total cost of ownership (no need for contact cleaning or
maintenance procedures).
Key Features
- Disinfectant-Ready enclosures treated with anti-microbial additives (ISO22196 compliant) withstand daily cleaning with harsh disinfectant solutions
- 1 MP optics for superior scanning and Depth of Field
- Extended reading distances and snappy reading of small, condensed, curved, poorly printed, and reflective bar codes
- Highly visible 4-Dot aimer with center cross for targeted scanning
- Datalogic’s ‘Green Spot’ technology, exclusive 3GL™ (3 Green Lights) and Vibration for superior good-read feedback
- Motionix™ motion-sensing technology for seamless reading mode transitions
- Image capture and document scanning capabilities
- Omnidirectional reading of 1D, 2D and postal codes plus stacked, composite codes and dot codes
- Choice of Bluetooth wireless technology version or Datalogic’s STAR
- Cordless System (radio frequencies available in 433 MHz or 910 MHz)
- Wireless battery charging system
- Choice of WLC4090 adjustable position cradle with Scan-While-Charging capability or
- WLC4190 sleek desk/wall cradle with USB Type C connectivity
Description
THE PURPOSE OF BAR CODE READERS IN THE HEALTHCARE INDUSTRYThe key mission of scanners in the healthcare industry is to improve the quality of patient care while reducing medication errors. Additionally, healthcare environments have requirements that
scanners need to be regularly cleaned and disinfected. The Datalogic Gryphon™ HC product series is specifically developed for healthcare applications with Disinfectant-Ready enclosures treated with antimicrobial additives and are designed to withstand daily cleaning with harsh disinfectant solutions.
The Gryphon 4500-HC 2D readers can decode virtually any 1D and 2D bar code symbology and can read codes from LCD monitors, cell phones, smartphones and other mobile devices. High Density (HD) models are also available for reading smaller, condensed codes.
Ideally suited for stationary applications in administration, laboratory and hospital environments, the GD4500-HC 2D desktop model offers an affordable corded solution, while the GM4500-HC 2D or GBT4500-HC 2D cordless models (STAR or Bluetooth®) provide extended mobility for cordless operations.
Datalogic’s distinctive reading technology with highly visible white or red-illumination is easier on the human eyes and reads colored labels better. The highly visible 4-Dot aimer provides a clear indication of the reading area, making targeting codes quick and easy. Datalogic’s patented ‘Green Spot’ technology provides additional visual good-read confirmation which is ideal for quiet environments such as bedside patient care.
The vibration option coupled with the silent operating mode can also be set to further increase the patients’ comfort. One of the most important technical innovations that the Gryphon 4500 wireless readers achieve is the wireless charging system for the battery, which enhances the reliability of the entire solution, while lowering the total cost of ownership (no need for contact cleaning or
maintenance procedures).
Specifications
| Scanning | |
|---|---|
| Type | Handheld bar code reader |
| 2D (matrix & stacked) barcodes supported | Aztec Code, Data Matrix, GS1 DataBar Expanded Stacked, GS1 DataBar Stacked Omnidirectional, MaxiCode, Micro QR Code, MicroPDF417, QR Code |
| Yaw reading angle | -65 - 65° |
| Wavelength | 650 nm |
| Tilt reading angle | 0 - 360° |
| Sensor type | Laser |
| Scanner type | 1D/2D |
| Pitch reading angle | -65 - 65° |
| Light levels (direct sunlight) | 0 - 100000 lx |
| Optical sensor resolution (W x H) | 1280 x 800 pixels |
| Ports & interfaces | |
| Wireless range | 50 m |
| Connectivity technology | Wireless |
| Operating frequency | 433 MHz |
| Standard interfaces | RF Wireless |
| Performance | |
| Protection features | Chemical resistant |
| International Protection (IP) code | IP52 |
| Product colour | Black |
| Image formats supported | BMP, JPEG, TIFF |
| Light levels (direct sunlight) | 0 - 100000 lx |
| Design | |
| Type | Handheld bar code reader |
| Protection features | Chemical resistant |
| International Protection (IP) code | IP52 |
| Product colour | Black |
| Power | |
| Power source type | Battery |
| Charging time | 4 h |
| Battery voltage | 12 V |
| Number of reads per charge | 80000 |
| Input voltage | 4.5 - 14 V |
| Battery technology | Lithium-Ion (Li-Ion) |
| Battery capacity | 3250 mAh |
| Weight & dimensions | |
| Width | 109 mm |
| Depth | 68 mm |
| Height | 152 mm |
| Weight | 235 g |
| Technical details | |
| Type | Handheld bar code reader |
| Protection features | Chemical resistant |
| International Protection (IP) code | IP52 |
| Product colour | Black |
| Harmonized System (HS) code | 84716070 |
| Packaging data | |
| Charging base | Yes |
| Cables included | USB |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Light levels (direct sunlight) | 0 - 100000 lx |
| Packaging content | |
| Charging base | Yes |
| Cables included | USB |
| Logistics data | |
| Harmonized System (HS) code | 84716070 |
