Description

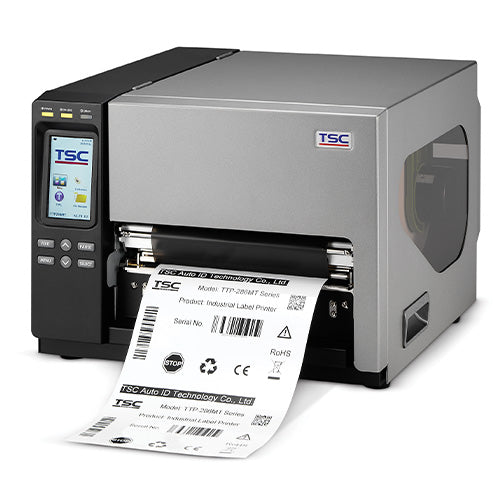

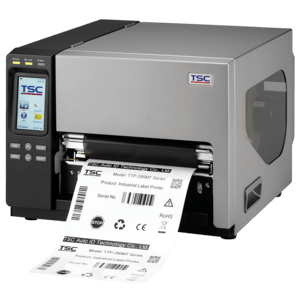

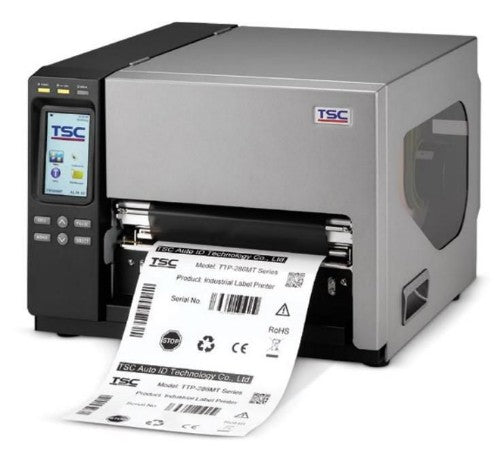

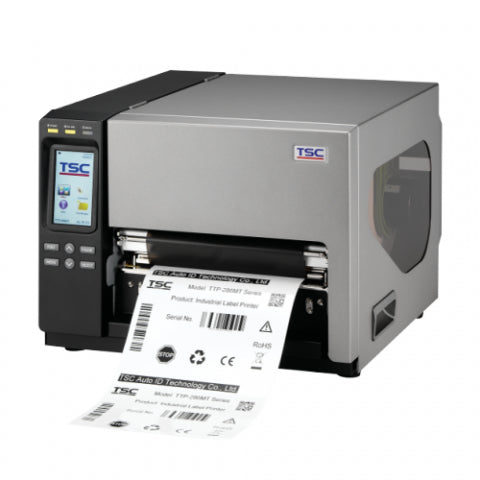

TTP-384MT, 300 dpi resolution, 8.64-inch print width, 4 ips (102 mm/second)
This 8-inch wide industrial printer series features two models to meet your wide format labeling needs: TTP-286MT, 203 dpi resolution at print speeds up to 6-inches per second. TTP-384MT, 300 dpi resolution at print speeds up to 4 inches per second. With its wide printing capabilities, the TTP-286MT is designed to print wide lateral bar codes without the need for image rotation.
Description
TTP Series 8-Inch Performance Industrial PrintersThis 8-inch wide industrial printer series features two models to meet your wide format labeling needs: TTP-286MT, 203 dpi resolution at print speeds up to 6-inches per second. TTP-384MT, 300 dpi resolution at print speeds up to 4 inches per second. With its wide printing capabilities, the TTP-286MT is designed to print wide lateral bar codes without the need for image rotation.
Specifications
| Print quality | |
|---|---|
| Maximum resolution | 300 x 300 DPI |
| Maximum printing width | 21.9 cm |
| Printing | |
| Rotated printing | Yes |
| Colour | No |
| Printing colours | Black |
| Print speed | 102 mm/sec |
| Maximum resolution | 300 x 300 DPI |
| Maximum printing width | 21.9 cm |
| Print technology | Direct thermal / Thermal transfer |
| Number of printable dots | 12 dot |
| Display | |
| Display diagonal | 10.9 cm (4.3") |
| Colour display | Yes |
| Display resolution | 480 x 272 pixels |
| Backlight display | Yes |
| Display | LCD |
| Network | |
| Wi-Fi | No |
| Ethernet LAN | Yes |
| Memory | |
| Internal memory | 256 MB |
| Flash memory | 512 MB |
| Paper handling | |
| Ribbon width | 25.4 cm |
| Ribbon length | 600 m |
| Media thickness | 0.06 - 0.254 mm |
| Core diameter | 7.62 cm |
| Autocutter | Yes |
| Ports & interfaces | |
| USB 2.0 ports quantity | 1 |
| RS-232 ports | 1 |
| Connectivity technology | Wired |
| Wi-Fi | No |
| Ethernet LAN | Yes |
| USB port | Yes |
| Performance | |
| Built-in barcodes | 1D, 2D |
| Number of fonts | 8 |
| Ribbon width | 25.4 cm |
| Ribbon length | 600 m |
| Internal memory | 256 MB |
| Flash memory | 512 MB |
| Built-in processor | Yes |
| Certification | FCC Class A, CE Class A, UL, CUL, TÜV/Safety |
| Page description languages | EPL, TSPL-EZ, ZPL, ZPL II |
| Design | |
| Display diagonal | 10.9 cm (4.3") |
| Colour display | Yes |
| Display resolution | 480 x 272 pixels |
| Backlight display | Yes |
| Display | LCD |
| Product colour | Black, Grey |
| Control type | Buttons, Touch |
| Built-in display | Yes |
| Certification | FCC Class A, CE Class A, UL, CUL, TÜV/Safety |
| Power | |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Technical details | |
| Product colour | Black, Grey |
| Built-in barcodes | 1D, 2D |
| Number of fonts | 8 |
| Ribbon width | 25.4 cm |
| Ribbon length | 600 m |
| Processor | |
| Built-in processor | Yes |
| Certificates | |
| Certification | FCC Class A, CE Class A, UL, CUL, TÜV/Safety |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 60 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 5 - 40 °C |
| Operating relative humidity (H-H) | 20 - 85% |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 514 mm |
| Height | 336 mm |
| Weight | 23.7 kg |
| Packaging content | |
| Cables included | AC, USB |
