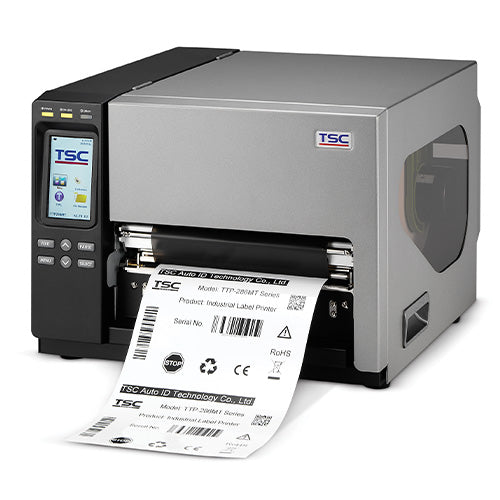

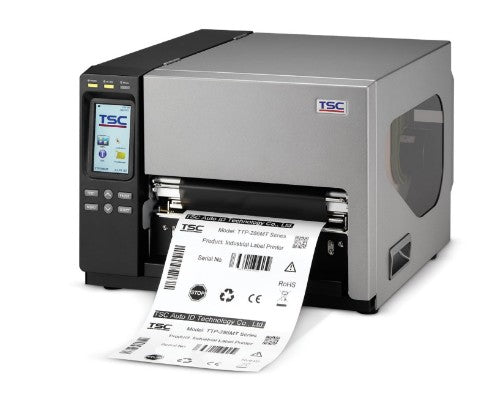

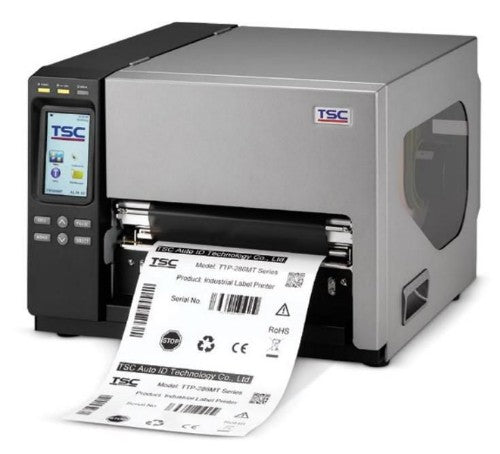

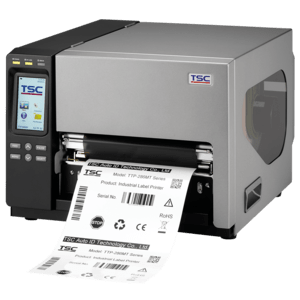

TSC TTP-286MT label printer Direct thermal / Thermal transfer 203 x 203 DPI 152 mm/sec Wired Ethernet LAN

TTP-286MT, RTC, Display, TSPL-EZ, USB, RS232, LPT, Ethernet

Key Features

• 4.3” touch LCD display with 6-button menus
• Ethernet, USB 2.0, serial, parallel and USB Host*1 connectivity are standard

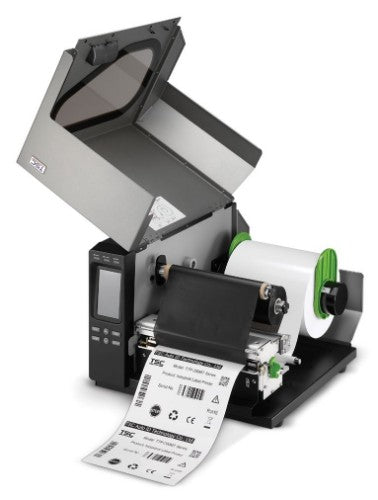

• Die-cast chassis, sheet metal structure with clear media view window
• Can manage label widths up to 241.3 mm (9.5”) with a maximum print width up to 219.5 mm (8.64”) wide at 300 dpi high resolution
• 600 meter ribbon supply
• 512 MB Flash and 256 MB SDRAM memory
• SD Flash memory expansion up to 32 GB
• Up to 6” per sec. print speed for 203 dpi, and 4” per sec. print speed for 300 dpi
• Powerful basic programming tools
• Options include: GPIO connectivity, Bluetooth module and cutter module

Description

The TSC TTP-286MT 8-Inch Performance Industrial Printer is perfectly suited for compliance labeling, marketing your brand, drum labeling, warning signs and a host of other signage solutions. TTP-286MT prints at a resolution of 203 dpi with speeds up to 6-inches per second. The TTP-286MT is designed with wide-printing capabilities, allowing your business to print wide lateral bar codes without the need for rotating images.

Specifications

Print quality
Maximum resolution	203 x 203 DPI
Maximum printing width	21.6 cm
Printing
Colour	No
Printing colours	Black
Print speed	152 mm/sec
Maximum resolution	203 x 203 DPI
Maximum printing width	21.6 cm
Print technology	Direct thermal / Thermal transfer
Number of printable dots	8 dot
Display
Display diagonal	10.9 cm (4.3")
Colour display	Yes
Display resolution	480 x 272 pixels
Backlight display	Yes
Display	LCD
Network
Ethernet LAN	Yes
Memory
Internal memory	256 MB
Flash memory	512 MB
Paper handling
Supported paper width	241.3 mm
Ribbon width	25.4 cm
Ribbon length	600 m
Media thickness	0.06 ~ 0.254 mm
Maximum label length	11.43 m
Core diameter	7.62 cm
Autocutter	Yes
Ports & interfaces
USB 2.0 ports quantity	1
RS-232 ports	1
Connectivity technology	Wired
Ethernet LAN	Yes
USB port	Yes
Performance
Built-in barcodes	1D, AZTECCODE, CODABAR (NW-7), Code 11, Code 128 (A/B/C), Code 39, Code 93, Code-128 Codabar Library, Data Matrix, EAN128, EAN13, EAN8, GS1 DataBar, GS1 DataMatrix, Interleaved 2/5, MSI, MaxiCode, PDF417, PLESSEY, POSTNET, QR Code, UPC-A, UPC-E
Number of fonts	8
Ribbon width	25.4 cm
Ribbon length	600 m
Internal memory	256 MB
Flash memory	512 MB
Built-in processor	Yes
Certification	FCC Class A, CE Class A, UL, cUL, TÜV/Safety
Design
Display diagonal	10.9 cm (4.3")
Colour display	Yes
Display resolution	480 x 272 pixels
Backlight display	Yes
Display	LCD
Product colour	Black, Grey
Control type	Buttons, Touch
Built-in display	Yes
Certification	FCC Class A, CE Class A, UL, cUL, TÜV/Safety
Power
AC adapter output voltage	24 V
AC adapter output current	8.33 A
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power source type	DC
Technical details
Product colour	Black, Grey
Built-in barcodes	1D, AZTECCODE, CODABAR (NW-7), Code 11, Code 128 (A/B/C), Code 39, Code 93, Code-128 Codabar Library, Data Matrix, EAN128, EAN13, EAN8, GS1 DataBar, GS1 DataMatrix, Interleaved 2/5, MSI, MaxiCode, PDF417, PLESSEY, POSTNET, QR Code, UPC-A, UPC-E
Number of fonts	8
Ribbon width	25.4 cm
Ribbon length	600 m
Maximum label length	11.43 m
Sustainability compliance	Yes
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS, TÜV mark, UL, WEEE, cUL
Processor
Built-in processor	Yes
Certificates
Certification	FCC Class A, CE Class A, UL, cUL, TÜV/Safety
Operational conditions
Storage temperature (T-T)	-40 - 60 °C
Storage relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	5 - 40 °C
Operating relative humidity (H-H)	20 - 85%
Weight & dimensions
Width	440 mm
Depth	514 mm
Height	336 mm
Weight	23.7 kg
Packaging content
Cables included	AC, USB
