Description
1/2.5" CMOS, 2.4mm, 2304x1728, RJ-45, HDMI, microSD/microSDHC/microSDXC, IP69, IK10+, 131x209x176 mm
Key Features
- Anti-ligature, robust (IK11); Compact design – easy to install; Corner camera – no blind spots; WDR and invisible IR (940 nm); Zipstream supporting H.264 and H.265
Description

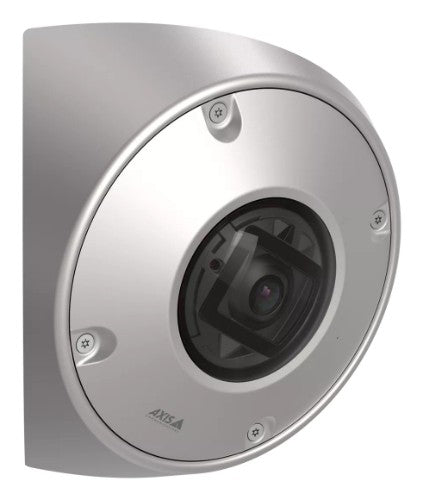

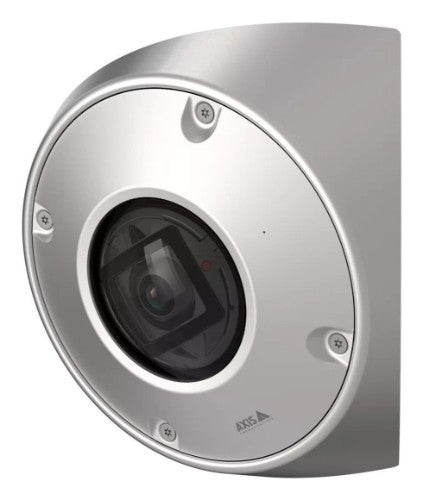

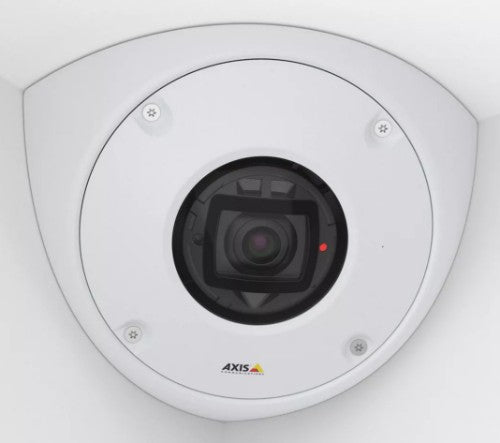

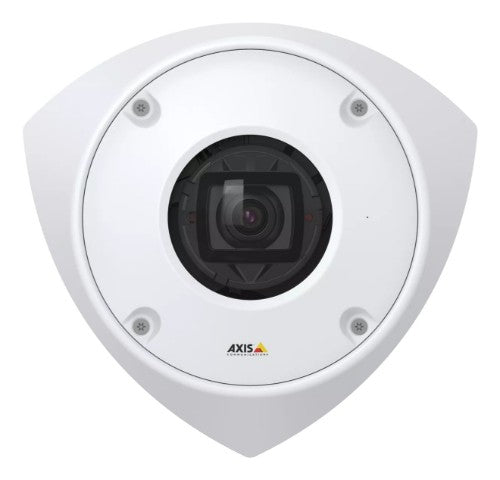

AXIS Q9216-SLV is a compact and robust ligature-resistant (anti-ligature) corner-mount camera that delivers 4 MP video quality. It covers 125 degrees horizontally and 95 degrees vertically, with no blind spots. Featuring invisible IR illumination, it’s ideal for covert video surveillance in complete darkness. With an IK11/IP66 rated casing, it also includes a removable built-in microphone and an indication LED. The camera has polygonal privacy masking, which allows for flexible coverage and helps ensure occupant privacy is respected. Furthermore, signed firmware and a Trusted Platform Module (TPM, FIPS 140-2 level 2 certified) help prevent unauthorized access and safeguard your system.Specifications
| Performance | |
|---|---|
| Infrared (IR) cut-off filter | Yes |
| Type | IP security camera |
| Connectivity technology | Wired |
| PTZ control | Yes |
| Placement supported | Outdoor |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Certification | EN 50130-4, EN 55032 A, EN 55035, IEC/EN 61000-6-1, IEC/EN 61000-6-2, FCC 15 B A, ICES-3(A)/NMB-3(A), VCCI A, KC KN-32 A, KC KN-35, RCM AS/NZS CISPR 32 A, CISPR 24, CISPR 35 IEC/EN/UL 62368-1, CAN/CSA C22.2 No. 62368-1, IEC/EN 62471 EN 50130–5 I, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, IEC/EN 60529 IP66, EN 60529 IP69, ISO 20653 IP6K9K, IEC/EN 62262 IK10+, NEMA 250 4X NIST SP500-267 |
| Design | |
| IK code | IK10+ |
| Form factor | Dome |
| Product colour | White |
| Mounting type | Ceiling/wall |
| International Protection (IP) code | IP66, IP69, IP69K |
| Housing material | Stainless steel |
| Camera | |
| Minimum illumination | 0 lx |
| Camera shutter speed | 1/32500 - 1/5 s |
| Camera pan control | No |
| Camera tilt control | No |
| Lens viewing angle, horizontal | 125° |
| Lens viewing angle, vertical | 95° |
| Progressive scan | Yes |
| Image sensor | |
| Sensor type | CMOS |
| Progressive scan | Yes |
| Optical sensor size | 25.4 / 2.5 mm (1 / 2.5") |
| Number of sensors | 1 |
| Lens system | |
| Number of lenses | 1 |
| Maximum aperture number | 2 |
| Fixed focus | Yes |
| Fixed focal length | 2.4 mm |
| Night vision | |
| Night vision | Yes |
| Night vision distance | 15 m |
| LED type | IR |
| Infra-red wavelength | 940 nm |
| Video | |
| Image quality adjustment | Brightness, Contrast, Saturation, Sharpness |
| Text caption overlay | Yes |
| Bit rate control | Variable Bit Rate (VBR) |
| Video compression formats | AVC, H.264, H.265, HEVC, M-JPEG |
| Maximum resolution | 2304 x 1728 pixels |
| Supported graphics resolutions | 320 x 240, 2304 x 1728 |
| Frame rate | 30 fps |
| Video streaming | Yes |
| Audio | |
| Voice codecs | G.711, G.726, OPUS |
| Sample rate | 48 kHz |
| Built-in microphone | Yes |
| Audio system full duplex | Yes |
| Audio system | 2-way |
| Network | |
| Bluetooth | No |
| Ethernet interface type | Fast Ethernet |
| Networking standards | IEEE 802.1x, IEEE 802.3af, IEEE 802.3at |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Supported network protocols | IPv4,IPv6 USGv6, HTTP, HTTPS , SSL/TLS , QoS L3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP , SNMP v1/v2c/v3(MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SFTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, LLDP, SIP |
| Storage | |
| Card reader integrated | Yes |
| Built-in HDD | No |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Internal memory | 1024 MB |
| Flash memory | 512 MB |
| Ports & interfaces | |
| Terminal block port | Yes |
| HDMI ports quantity | 1 |
| Microphone in | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Connectivity technology | Wired |
| Security | |
| Video motion detection | Yes |
| Security algorithms | EAP-TLS, FIPS 140-2 |
| HTTPS encryption | Yes |
| Password protection | Yes |
| Power | |
| Power source type | PoE |
| Power consumption (max) | 10.8 W |
| Power consumption (typical) | 4.7 W |
| Certificates | |
| Certification | EN 50130-4, EN 55032 A, EN 55035, IEC/EN 61000-6-1, IEC/EN 61000-6-2, FCC 15 B A, ICES-3(A)/NMB-3(A), VCCI A, KC KN-32 A, KC KN-35, RCM AS/NZS CISPR 32 A, CISPR 24, CISPR 35 IEC/EN/UL 62368-1, CAN/CSA C22.2 No. 62368-1, IEC/EN 62471 EN 50130–5 I, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, IEC/EN 60529 IP66, EN 60529 IP69, ISO 20653 IP6K9K, IEC/EN 62262 IK10+, NEMA 250 4X NIST SP500-267 |
| Weight & dimensions | |
| Width | 209 mm |
| Depth | 176 mm |
| Height | 131 mm |
| Weight | 1.6 kg |
| Packaging content | |
| Number of cameras | 1 |
| Other features | |
| Video compression formats | AVC, H.264, H.265, HEVC, M-JPEG |
| Logistics data | |
| Harmonized System (HS) code | 85258900 |
