Lindy 100m USB 2.0 Cat.6 Extender

100m USB 2.0 Cat.6 Extender

Key Features

• Extends a single USB port up to 100m using Cat.5e/6 network cable (not included)
• Plug and Play installation, OS independent
• Perfect for use with USB 2.0 devices such as storage devices, printers, scanners, mice and keyboards*
• Supports USB 2.0 High Speed and USB 1.1 Full Speed / Low Speed
• 2 year warranty

Description

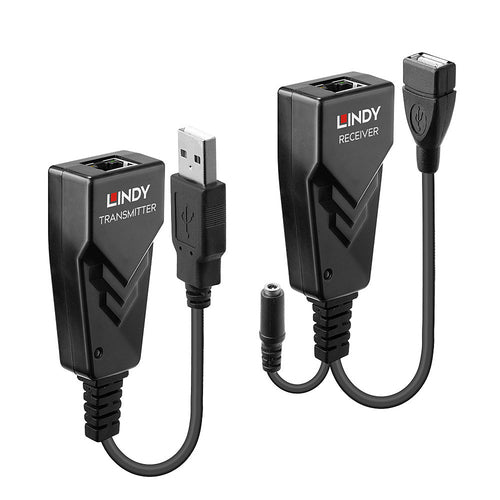

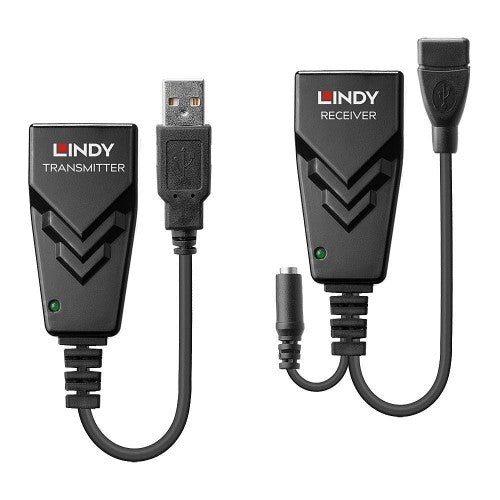

The Lindy 100m USB 2.0 Cat.6 Extender can be used to extend the distance between a USB peripheral device and host computer by up to 100m. It consists of a transmitter unit which connects to the computer and a receiver unit that connects to the device. Standard Cat.5e/6 network cable (not included) is then used to bridge the connection between the two units. For best performance and compatibility, we recommend the use of solid core patched cables.





































For added convenience this USB 2.0 Extender is supplied with a power supply, which can be connected should additional power be required.

*Please Note: this extender might not support USB devices that require high bandwidths such as Full HD webcams.

Specifications

Performance
Type	Network transmitter & receiver
Maximum transfer distance	100 m
Data transfer rate	480 Mbit/s
Cable types supported	Cat5e, Cat6
Chipset	CH317Q, CH536G
Technical details
Type	Network transmitter & receiver
Maximum transfer distance	100 m
Data transfer rate	480 Mbit/s
Cable types supported	Cat5e, Cat6
Chipset	CH317Q, CH536G
Harmonized System (HS) code	85176990
Compliance certificates	RoHS
Ports & interfaces
RJ-45 ports quantity (transmitter)	1
RJ-45 ports quantity (receiver)	1
Design
Housing material	Plastic
Certification	CE, FCC, REACH, CP65
Product colour	Black
Power
Output voltage	5 V
Output current	2 A
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-10 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Weight & dimensions
Width	36 mm
Depth	22 mm
Height	69 mm
Weight	50 g
Colour
Product colour	Black
Certificates
Certification	CE, FCC, REACH, CP65
Packaging content
Manual	Yes
Packaging data
Package width	200 mm
Package depth	200 mm
Package height	48 mm
Package weight	250 g
Logistics data
Harmonized System (HS) code	85176990
