Description

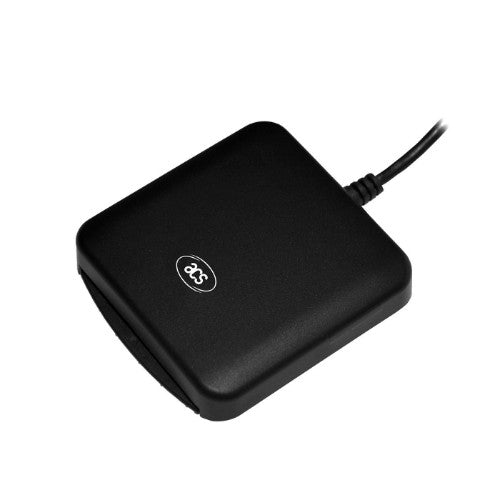

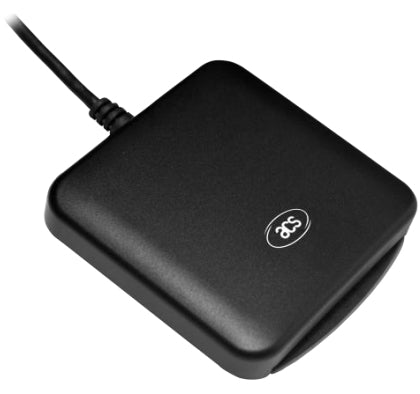

ACR39U-U1, USB-A, 72.2 x 69 x 14.5 mm, 65 g
The modern design of the ACR39U-U1, with its matte casing, makes it stand out from ordinary smart card readers. It houses a powerful core that can support demanding applications and can be used anytime, anywhere.
The ACR39U-U1 is PC/SC and CCID-compliant, making it easy to install and use, as it is specifically designed to be integrated into any computer-based environment. Its drivers are compatible with operating systems such as Windows® , Linux® , Mac OS® , and Solaris. In addition, the ACR39U-U1 may now be used on mobile devices running the Android™ platform with versions 3.1 and later. With its numerous features, the ACR39U-U1 is clearly the perfect smart card reader for your smart card solution.
Key Features
- USB Full Speed Interface
- USB Type A Connector
- Plug and Play – CCID support brings utmost mobility
- Supports PC/SC
- Supports CT-API (through wrapper on top of PC/SC)
- Supports Android™ 3.1 and later
Description
The ACR39U-U1 hails new and modern technology in the world of smart card readers. It is a compact and stylish smart card reader that brings together sophisticated technology with modern design to meet rigorous requirements in various smart card-based applications.The modern design of the ACR39U-U1, with its matte casing, makes it stand out from ordinary smart card readers. It houses a powerful core that can support demanding applications and can be used anytime, anywhere.
The ACR39U-U1 is PC/SC and CCID-compliant, making it easy to install and use, as it is specifically designed to be integrated into any computer-based environment. Its drivers are compatible with operating systems such as Windows® , Linux® , Mac OS® , and Solaris. In addition, the ACR39U-U1 may now be used on mobile devices running the Android™ platform with versions 3.1 and later. With its numerous features, the ACR39U-U1 is clearly the perfect smart card reader for your smart card solution.
Specifications
| Features | |
|---|---|
| Compliance industry standards | ISO 7816 Parts 1-4, Class A, B, C (5 V, 3 V, 1.8 V) |
| Product colour | Black |
| Cable length | 1.5 m |
| Product type | Universal smart card reader |
| Application area | Access control, Banking & payments, Healthcare |
| Certificates | |
| Certification | EN 60950/IEC 60950, ISO 7816, USB Full Speed, EMV™ Level 1 (Contact), PC/SC, CCID, CE, FCC, WEEE, RoHS, REACH, TAA (USA), J-LIS (Japan), VCCI (Japan), PBOC (China), BIS (India), Microsoft® WHQL |
| Technical details | |
| Compliance industry standards | ISO 7816 Parts 1-4, Class A, B, C (5 V, 3 V, 1.8 V) |
| Product colour | Black |
| Cable length | 1.5 m |
| Design | |
| Product colour | Black |
| Cable length | 1.5 m |
| Ports & interfaces | |
| Compliance industry standards | ISO 7816 Parts 1-4, Class A, B, C (5 V, 3 V, 1.8 V) |
| Interface | USB 1.1 |
| Colour | |
| Product colour | Black |
| Power | |
| Operating voltage | 5 V |
| Power source | USB |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 60 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| System requirements | |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Other operating systems supported | Android |
| Weight & dimensions | |
| Width | 69 mm |
| Height | 72.2 mm |
| Depth | 14.5 mm |
| Weight | 65 g |
| Sustainability | |
| Certification | EN 60950/IEC 60950, ISO 7816, USB Full Speed, EMV™ Level 1 (Contact), PC/SC, CCID, CE, FCC, WEEE, RoHS, REACH, TAA (USA), J-LIS (Japan), VCCI (Japan), PBOC (China), BIS (India), Microsoft® WHQL |
