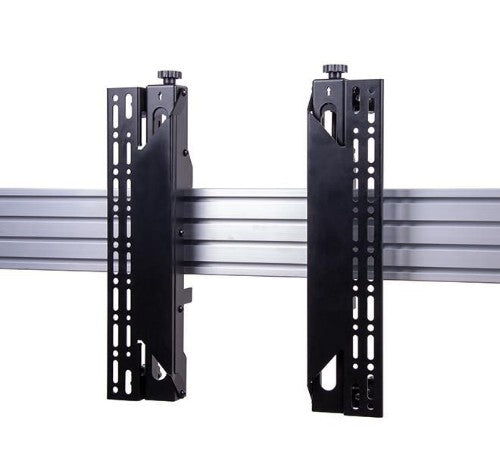

SYSTEM X - VESA 400 Flat Screen Interface Arms with Micro-Adjustment for BT8390 (Pair)
Key Features
- Ideal for videowalls and other multi-screen installations
- Universal design compatible with most screens
- Suitable for landscape or portrait mounting

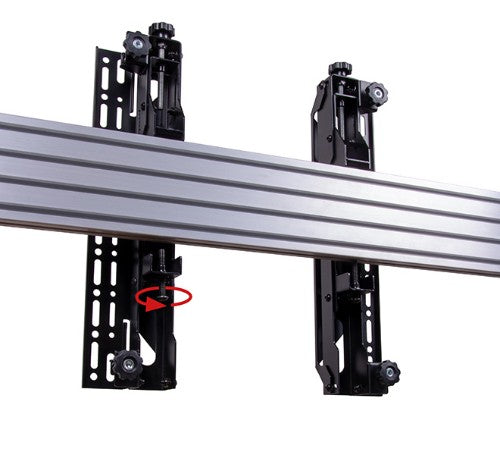

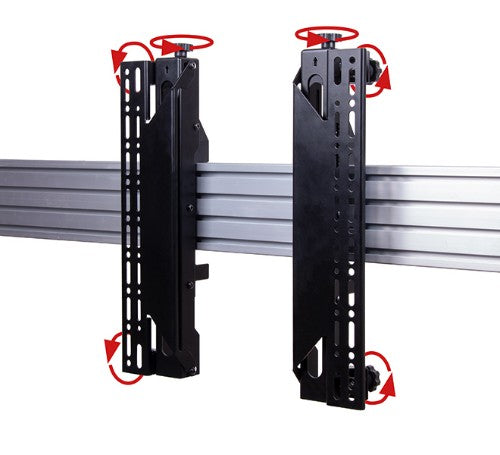

- Tool-less micro-adjustment for seamless display alignment
- Safety screws help prevent unauthorised removal of screens

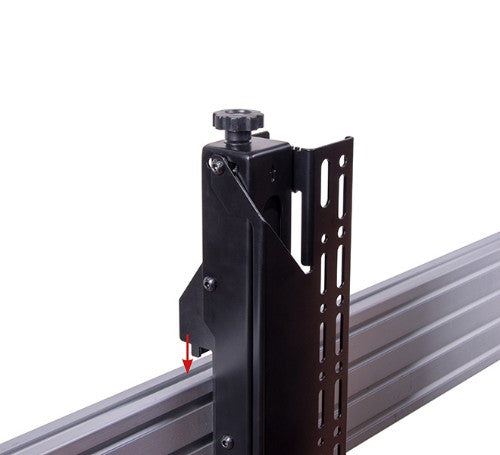

- Simple ‘hook-on’ installation
- TUV certified
Description
Ideal for assembling videowalls and for other multi-screen applications, these interface arms are designed to mount medium to large sized screens on to System X horizontal mounting rails. The universal design is compatible with all videowall screens and the modular design allows an almost endless number of configurations to be assembled, in both landscape or portrait orientations. Toolless micro-adjustment allows perfect alignment of displays and a mounted depth of just 86.1mm for a close to the wall installation.
Specifications
| Mounting |
|---|
| Mounting type |
Rail |
| Product type |
Flat panel mount arm |
| Maximum screen size |
177.8 cm (70") |
| Minimum screen size |
99.1 cm (39") |
| Number of displays supported |
1 |
| Maximum weight capacity |
70 kg |
| Product colour |
Black |
| Certification |
TUV |
| Features |
|---|
| Mounting type |
Rail |
| Product type |
Flat panel mount arm |
| Maximum screen size |
177.8 cm (70") |
| Minimum screen size |
99.1 cm (39") |
| Number of displays supported |
1 |
| Maximum weight capacity |
70 kg |
| Product colour |
Black |
| Certification |
TUV |
| Technical details |
|---|
| Mounting type |
Rail |
| Product colour |
Black |
| Certification |
TUV |
| Maximum weight capacity |
70 kg |
| Compliance certificates |
cTUVus |
| Weight & dimensions |
|---|
| Height |
454.6 mm |
| Depth |
103.7 mm |
| Colour |
|---|
| Product colour |
Black |
| Other features |
|---|
| Certification |
TUV |
| Compliance certificates |
cTUVus |
| Logistics data |
|---|
| Harmonized System (HS) code |
83024200 |
