Description

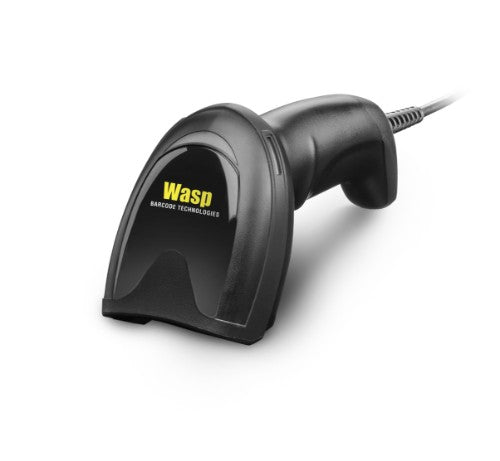

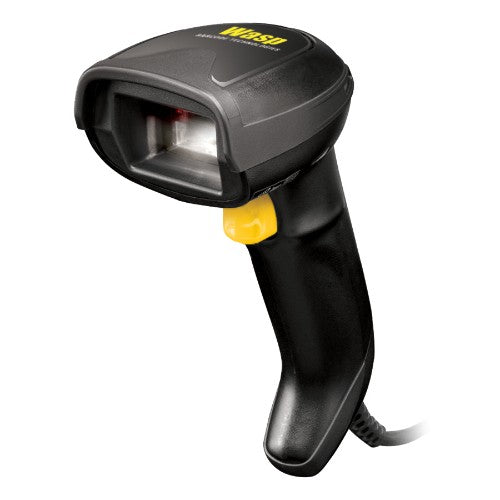

WDI4700 Industrial 2D Barcode Scanner w/USB cable
The new Wasp WDI4700 2D barcode scanner is a multipurpose digital imager designed to offer an ergonomic scanning experience to the user, and an outstanding performance thanks to its megapixel sensor with white-illumination 2D technology.
The WDI4700 motion-sensing technology detects the user’s movements to switch automatically between presentation and handheld reading without the need of a stand. It also allows the user to program the aimer and sensor according to the user’s preferences.
Thanks to its highly visible 4-Dot aimer, the WDI4700 can define exact reading zones to reduce accidental reads, while the aimer’s center cross provides a locator for targeted scanning in a multiple barcode environment. In addition, its visible white illumination is easier on the eyes and reads colored labels better.
The WDI4700 omnidirectional scanner can read 1D and 2D, postal and composite codes (PDF417) at a fast speed even from mobile devices. It also features enhanced optics to improve motion tolerance and high-speed imaging to read fast moving codes. This makes it ideal for a wide-range of industries such as: mobile marketing or ticketing applications, retail (POS), light manufacturing, healthcare, access control, transportation, entertainment, commercial services like postal, banks, public administration, utilities, etc.
Key Features
- Rapidly and accurately scan 1D and 2D barcodes
- High speed, low power consumption eliminates the need to rescan
- Aggressive digital imager scan engine offers flexible read range
- Ergonomic design for additional comfort
- Improve productivity and prevent data-entry errors
- Simplify business processes while improving accuracy and efficiency
Description
Wasp WDI4700 2D Barcode ScannerThe new Wasp WDI4700 2D barcode scanner is a multipurpose digital imager designed to offer an ergonomic scanning experience to the user, and an outstanding performance thanks to its megapixel sensor with white-illumination 2D technology.
The WDI4700 motion-sensing technology detects the user’s movements to switch automatically between presentation and handheld reading without the need of a stand. It also allows the user to program the aimer and sensor according to the user’s preferences.
Thanks to its highly visible 4-Dot aimer, the WDI4700 can define exact reading zones to reduce accidental reads, while the aimer’s center cross provides a locator for targeted scanning in a multiple barcode environment. In addition, its visible white illumination is easier on the eyes and reads colored labels better.
The WDI4700 omnidirectional scanner can read 1D and 2D, postal and composite codes (PDF417) at a fast speed even from mobile devices. It also features enhanced optics to improve motion tolerance and high-speed imaging to read fast moving codes. This makes it ideal for a wide-range of industries such as: mobile marketing or ticketing applications, retail (POS), light manufacturing, healthcare, access control, transportation, entertainment, commercial services like postal, banks, public administration, utilities, etc.
Specifications
| Scanning | |
|---|---|
| Type | Handheld bar code reader |
| Linear (1D) barcodes supported | Code 39, EAN-13, PDF417 |
| 2D (matrix & stacked) barcodes supported | Code 39, Data Matrix, PDF417, QR Code |
| Yaw reading angle | -40 - 40° |
| Tilt reading angle | 0 - 180° |
| Sensor type | LED |
| Scanner type | 1D/2D |
| Pitch reading angle | -40 - 40° |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Standard interfaces | USB |
| Performance | |
| International Protection (IP) code | IP52 |
| Product colour | Black, Yellow |
| Design | |
| Type | Handheld bar code reader |
| International Protection (IP) code | IP52 |
| Product colour | Black, Yellow |
| Power | |
| Power source type | USB |
| Input voltage | 5 V |
| Weight & dimensions | |
| Width | 166 mm |
| Depth | 68 mm |
| Height | 109 mm |
| Weight | 161 g |
| Technical details | |
| Type | Handheld bar code reader |
| International Protection (IP) code | IP52 |
| Product colour | Black, Yellow |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 5 - 95% |
