UFiber Instant Optical Transceiver, SFP, 20 km, 2 W, 69.46 x 13.70 x 11.30 mm, 30 g
Key Features
- High-Performance GPON CPE
- Up to 2.4 Gbps Downstream and 1.2 Gbps Upstream GPON structure
- Supports up to 20 km GPON Links
- Powerful Layer 2/3 Management Features
- (1) GPON WAN Port, SC/APC
- (1) 1Gbps SFP interface
Description

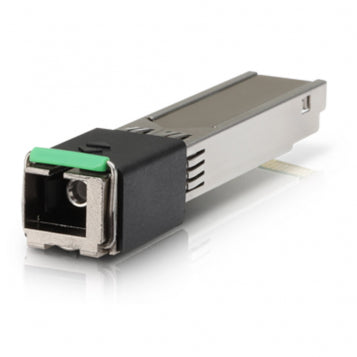

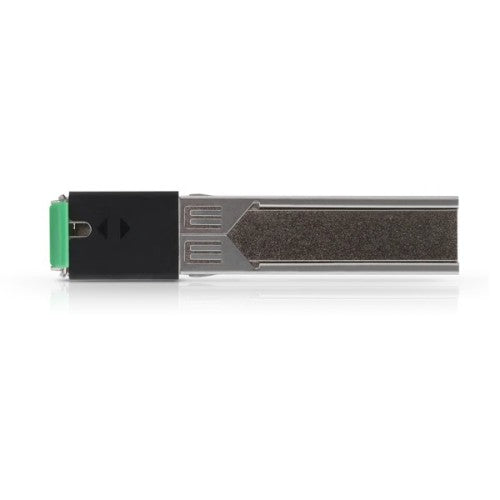

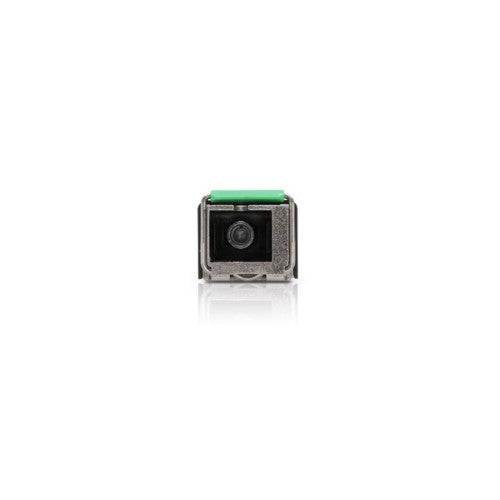

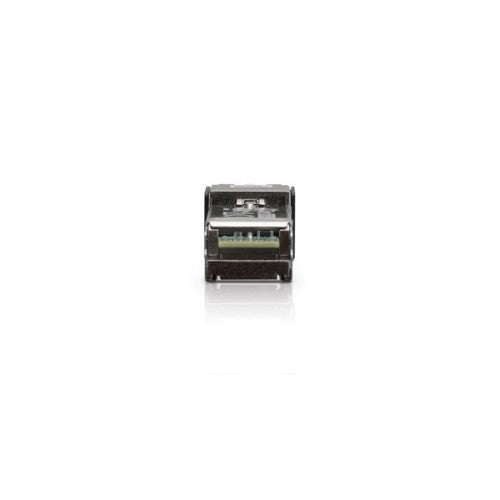

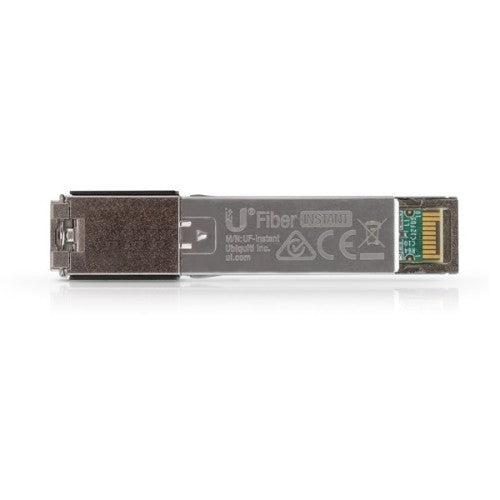

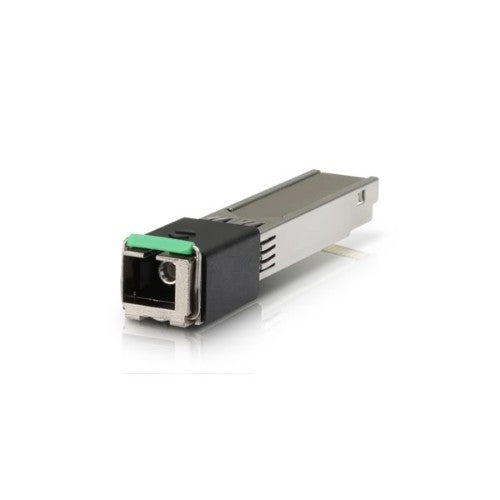

The U Fiber Instant is a high‑performance GPON CPE in the form factor of an SFP module. It features an SGMII Ethernet LAN port and is powered by SFP.
Specifications
| Performance |
|---|
| SFP transceiver type |
Fiber optic |
| Maximum transfer distance |
20000 m |
| Tx power (min) |
1.5 dBmW |
| Tx power (max) |
5 dBmW |
| Rx power (min) |
-28 dBmW |
| Rx power (max) |
8 dBmW |
| Maximum data transfer rate |
2.488 Mbit/s |
| Interface type |
SFP |
| Product colour |
Black, Metallic |
| Harmonized System (HS) code |
85369010 |
| Features |
|---|
| Product colour |
Black, Metallic |
| Certification |
CE, FCC, IC |
| Power |
|---|
| Input voltage |
3.3 V |
| Power consumption (typical) |
2 W |
| Certificates |
|---|
| Certification |
CE, FCC, IC |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-10 - 45 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Network |
|---|
| SFP transceiver type |
Fiber optic |
| Maximum data transfer rate |
2.488 Mbit/s |
| Interface type |
SFP |
| Weight & dimensions |
|---|
| Width |
69.5 mm |
| Depth |
13.7 mm |
| Height |
11.3 mm |
| Weight |
30 g |
| Packaging content |
|---|
| Quantity per pack |
1 pc(s) |
| Technical details |
|---|
| Maximum transfer distance |
20000 m |
| Tx power (min) |
1.5 dBmW |
| Tx power (max) |
5 dBmW |
| Rx power (min) |
-28 dBmW |
| Rx power (max) |
8 dBmW |
| Logistics data |
|---|
| Quantity per pack |
1 pc(s) |
| Harmonized System (HS) code |
85369010 |
