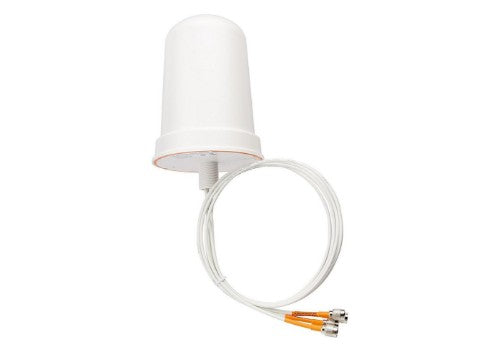

Aironet Dual-Band Omnidirectional Wi-Fi Antenna, 4 dBi (2.4 GHz)/4 dBi (5 GHz), 4 Ports, Wall/Mast Mount, 1-Year Limited Hardware Warranty (AIR-ANT2544V4M-RS=)
Key Features
- OMNIDIRECTIONAL WI-FI ANTENNA: 4 dBi (2.4 GHz)/4 dBi (5 GHz); 4 dual-band ports; designed for dual-band port access points such as the Aironet 1830, 1850, 2800 and 3800 Series and Cisco Catalyst 9115AX, 9120AX and 9130AX Series
- CONNECTION AND MOUNT: 4 plenum-rated pigtail cables with 4 RP-TNC connectors; wall or mast mount
- 360-DEGREE RADIATION PATTERN: Intended for deployment when coverage in all directions from the antenna is required
- PERFORMANCE: Designed for improved coverage
- PEACE OF MIND: 1-year limited hardware warranty
Description
The Cisco Aironet AIR-ANT2544V4M-RS= Dual-Band Omnidirectional Wi-Fi Antenna is designed with improved performance in mind. It provides a 360-degree radiation pattern and is intended for deployment when coverage in all directions is required. This FCC-approved omnidirectional antenna includes circuitry to enable self-identification of the antenna by the Cisco Catalyst 9100 Access Points.
Specifications
| Performance |
|---|
| Antenna gain level (max) |
4 dBi |
| Networking standards |
IEEE 802.11n |
| Frequency band |
2.4/5 GHz |
| Impedance |
50 Ω |
| Antenna gain (5 GHz) |
4 dBi |
| Antenna gain (2.4 GHz) |
4 dBi |
| Features |
|---|
| Connector gender |
Male |
| Antenna type |
Omni-directional antenna |
| Voltage Standing Wave Ratio (VSWR) |
< 2:1 |
| Purpose |
Indoor & outdoor |
| Polarization |
Vertical polarization |
| Mounting |
Wall/Pole |
| Product colour |
White |
| Cable length |
2.4 m |
| Antenna connector type |
RP-TNC |
| Compatible products |
Cisco Aironet 1600e, 2600e, 3600e |
| Country of origin |
Malaysia |
| Antenna gain level (max) |
4 dBi |
| Networking standards |
IEEE 802.11n |
| Frequency band |
2.4/5 GHz |
| Impedance |
50 Ω |
| Antenna gain (5 GHz) |
4 dBi |
| Antenna gain (2.4 GHz) |
4 dBi |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-30 - 70 °C |
| Packaging data |
|---|
| Package width |
215.9 mm |
| Package depth |
387.4 mm |
| Package height |
215.9 mm |
| Package weight |
1.41 kg |
| Technical details |
|---|
| Antenna gain level (max) |
4 dBi |
| Frequency band |
2.4/5 GHz |
| Antenna type |
Omni-directional antenna |
| Voltage Standing Wave Ratio (VSWR) |
< 2:1 |
| Purpose |
Indoor & outdoor |
| Polarization |
Vertical polarization |
| Mounting |
Wall/Pole |
| Impedance |
50 Ω |
| Cable length |
2.4 m |
| Antenna gain (5 GHz) |
4 dBi |
| Antenna gain (2.4 GHz) |
4 dBi |
| Antenna connector type |
RP-TNC |
| Compatible products |
Cisco Aironet 1600e, 2600e, 3600e |
| Harmonized System (HS) code |
85177100 |
| Network |
|---|
| Networking standards |
IEEE 802.11n |
| Colour |
|---|
| Product colour |
White |
| Weight & dimensions |
|---|
| Package width |
215.9 mm |
| Package depth |
387.4 mm |
| Package height |
215.9 mm |
| Package weight |
1.41 kg |
| Packaging content |
|---|
| Quick installation guide |
Yes |
| Mounting kit |
Yes |
| Manual |
Yes |
| Quantity per pack |
1 pc(s) |
| Logistics data |
|---|
| Country of origin |
Malaysia |
| Quantity per pack |
1 pc(s) |
| Harmonized System (HS) code |
85177100 |
