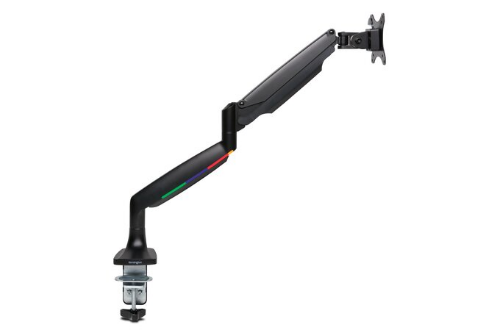

SmartFit One-Touch Height-Adjustable Single Monitor Arm
Key Features
- SmartFit™ supports proper ergonomic eye-level viewing angles, as well as improved neck and shoulder alignment.

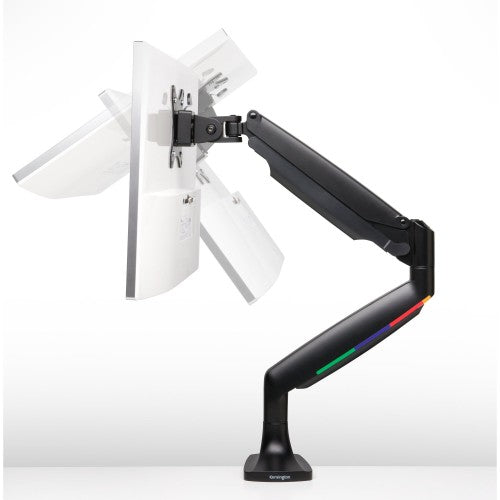

- The SmartFit™ One-Touch Height-Adjustable Single Monitor Arm makes adjusting your external monitor’s height, depth and angle effortless. With 170 - 505mm (6.7 - 19.9”) height adjustment, ±90° swivel and monitor rotation and ±90° tilt adjustment, the product’s fully articulating design gives you total control over the placement of your monitor, from landscape to portrait mode. Its Counterbalance Tension Adjustment allows you to tighten or loosen the arm to accommodate a range of monitor weights with the same effortlessness and stability (Allen wrench included).
- The Kensington SmartFit™ One-Touch Height Adjustable Single Monitor Arm is stable in any position, supporting a 13′–34′′ flat or curved monitor weighing up to 9kg (19.8lbs).
- The Kensington SmartFit™ One-Touch Height Adjustable Single Monitor Arm is mountable by c-clamp (desktop thickness range: 10–85mm or grommet (desktop thickness range: or 10–80mm; grommet hole diameter range: 10.5–50mm – tool kit included. Its non-permanent, non-marking installation makes removal easy. An included quick-release, detachable VESA 75/100 plate makes the arm ideal for VESA mountable monitors.
- The Kensington SmartFit™ One-Touch Height Adjustable Single Monitor Arm’s built-in cable management system keeps cables out of sight and organised, held within the arm itself.
- The Kensington SmartFit™ One-Touch Height Adjustable Single Monitor is tested to meet ANSI/BIFMA performance and safety standards.
Reasons To Buy
One-touch adjustable arm with built-in gas spring and counterbalance tension adjustment
Enjoy effortless adjustment of your external monitor’s height, depth and angle with a fully articulating monitor arm. With 170–505mm height adjustment, ±90° swivel and monitor rotation, and ±90° tilt adjustment, the One-Touch gas spring monitor mount gives you total control over the placement of your external monitor, from landscape to portrait mode. Its counterbalance tension adjustment allows you to ‘tighten’ or ‘loosen’ the arm to accommodate a range of monitor weights with the same effortlessness and stability (Allen key included).
Easy, non-permanent installation
Mountable by c-clamp (desktop thickness range: 10–85mm) or grommet hole (desktop thickness range: 10–80mm; diameter range: 10.5–50mm), installation is non-permanent and non-marking, making removal easy – tool kit included. An included quick-release, detachable VESA 75/100 plate makes the fully articulating arm ideal for VESA mountable monitors.
Cable management system
Organises and conceals cables while the arm lifts your external monitor up and out of the way, decluttering cables and clearing valuable desk space at once.
SmartFit™ - Comfort Made Easy
Supports proper ergonomic eye-level viewing angles using data-driven research and a colour-coded fitting chart to support quick and intuitive height-setting.
Heavy duty, stability focused design
The Kensington SmartFit™ One-Touch Height Adjustable Single Monitor Arm is stable in every position, supporting a 13′–34′′ flat or curved monitor weighing up to 9kg (19.8lbs).
Kensington durability
The Kensington SmartFit™ One-Touch Height Adjustable Single Monitor is tested to meet ANSI/BIFMA performance and safety standards. Trust in the dependability of a heavy duty monitor arm and enjoy stability and effortless adjustment for years to come.
Description
Incorrect monitor placement can lead to poor posture, eye strain, as well as neck, back and shoulder discomfort. The SmartFit™ One-Touch Height Adjustable Single Monitor Arm supports more comfortable monitor placement. Thoughtfully designed to simplify proper ergonomic fit, it offers a fully-articulating design for maximum flexibility. A heavy duty build provides stability in every position while its gas spring monitor mount makes adjusting the height, depth and angle of your monitor effortless - from landscape to portrait mode. The built-in cable management system organises and conceals cables while the arm lifts your external monitor up and out of the way, decluttering and clearing valuable desk space.
Specifications
| Mounting |
|---|
| Desk thickness (min) |
1 cm |
| Desk thickness (max) |
8.5 cm |
| Minimum screen size |
33 cm (13") |
| Panel mounting interface |
75 x 75,100 x 100 mm |
| Number of displays supported |
1 |
| Mounting type |
Desk |
| Minimum VESA mount |
75 x 75 mm |
| Maximum VESA mount |
100 x 100 mm |
| Mounting |
Clamp |
| Maximum weight capacity |
9 kg |
| Maximum screen size |
86.4 cm (34") |
| Ergonomics |
|---|
| Cable management |
Yes |
| Height adjustment |
Yes |
| Height adjustment range |
170 - 505 mm |
| Swivel angle |
135° |
| Tilt angle range |
-90 - 90° |
| Angle of rotation |
180° |
| Height adjustment type |
Manual |
| Tilt adjustment |
Yes |
| Design |
|---|
| Easy to install |
Yes |
| Product colour |
Black |
| Housing material |
Aluminium, Plastic, Steel |
| Certification |
Prop 65, BIFMA |
| Technical details |
|---|
| Mounting type |
Desk |
| Product colour |
Black |
| Cable management |
Yes |
| Compliance certificates |
RoHS |
| Weight & dimensions |
|---|
| Width |
590 mm |
| Depth |
115 mm |
| Height |
665 mm |
| Weight |
3.34 kg |
| Package width |
496 mm |
| Package depth |
315 mm |
| Package height |
114 mm |
| Package type |
Box |
| Package weight |
4.22 kg |
| Packaging data |
|---|
| Package width |
496 mm |
| Package depth |
315 mm |
| Package height |
114 mm |
| Package type |
Box |
| Package weight |
4.22 kg |
| Certificates |
|---|
| Certification |
Prop 65, BIFMA |
| Other features |
|---|
| Certification |
Prop 65, BIFMA |
| Compliance certificates |
RoHS |
| Mounting type |
Desk |
| Mounting |
Clamp |
| Logistics data |
|---|
| Master (outer) case width |
333.5 mm |
| Master (outer) case length |
514 mm |
| Master (outer) case height |
480 mm |
| Master (outer) case gross weight |
1.78 kg |
| Harmonized System (HS) code |
85299097 |
