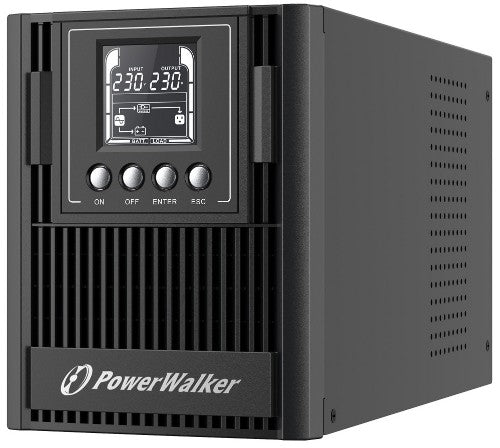

PowerWalker VFI 1000 AT FR uninterruptible power supply (UPS) Double-conversion (Online) 1 kVA 900 W 3 AC outlet(s)

1 kVA, 900 kW, 80-300V, 40-70Hz, LCD

Key Features

• USB with Human Interface Device (HID) support and Intelligent Slot for communication cards
• Wide input voltage range for all environments and support for AC generator

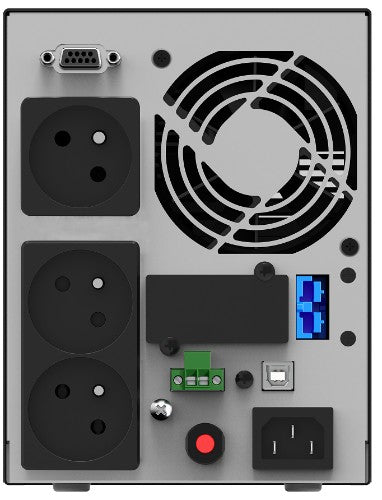

• French Outlets
• Easy to connect Battery Packs available

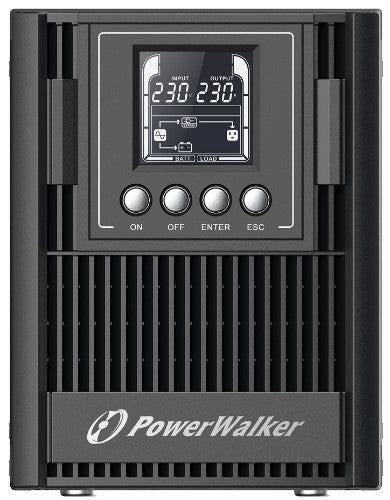

• Auto dimming screen (UPS is woken up with single button click)

Description

PowerWalker VFI 1000 AT FR

PowerWalker VFI 1000-3000 AT is an Online UPS series with double conversion technology, designed to safeguard your mission-critical equipment. Despite its professional application, the VFI AT series is easy to operate and comes inside a compact and economic package. Rather uniquely among Online UPS, the VFI AT series features outlet sockets for Type F, Type E and Type G plugs. This broadens its usability and allows for different types of application. Multiple optional accessories such as external battery packs and communication cards, enhance the functionality of the UPS and allow for a greater backup time.

Specifications

Power
Output voltage regulation	±1%
Output frequency regulation	±0.5 Hz
Output power factor	0.9
Input power factor	0.99
Output power	900 W
Input operation voltage (min)	80 V
Input operation voltage (max)	300 V
Output operation voltage (min)	208 V
Output operation voltage (max)	240 V
Efficiency	88%
Output voltage Total Harmonic Distortion (THD)	5%
Crest factor	3:1
Output power capacity	1 kVA
Performance
UPS topology	Double-conversion (Online)
Waveform	Pure sine
Features
UPS topology	Double-conversion (Online)
Waveform	Pure sine
Output voltage regulation	±1%
Output frequency regulation	±0.5 Hz
Output power factor	0.9
Input power factor	0.99
Output power	900 W
Input operation voltage (min)	80 V
Input operation voltage (max)	300 V
Output operation voltage (min)	208 V
Output operation voltage (max)	240 V
Efficiency	88%
Output voltage Total Harmonic Distortion (THD)	5%
Crest factor	3:1
Output power capacity	1 kVA
Input frequency	40/70 Hz
Ports & interfaces
USB port	Yes
AC outlets quantity	3 AC outlet(s)
AC outlet types	Type E
Power plug	C14 coupler
USB 2.0 ports quantity	1
RS-232 ports	1
USB port type	USB Type-B
Battery
Number of batteries supported	2
Battery voltage	12 V
Battery capacity	9 Ah
Battery recharge time	4 h
Typical backup time at half load	11 min
Typical backup time at full load	3.5 min
Design
Form factor	Tower
Product colour	Black
Built-in fan	Yes
Display type	LCD
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 90%
Technical details
Harmonized System (HS) code	85078000
Cooling
Built-in fan	Yes
Weight & dimensions
Package width	218 mm
Package depth	432 mm
Package height	274 mm
Weight	9.11 kg
Width	140 mm
Package weight	9.95 kg
Height	191 mm
Depth	327 mm
Packaging data
Cables included	RS-232, USB cable
Package width	218 mm
Package depth	432 mm
Package height	274 mm
Package weight	9.95 kg
Logistics data
Harmonized System (HS) code	85078000
Packaging content
Cables included	RS-232, USB cable
