Description
1x 1G Ethernet, 12x 10G SFP+, 2x 25G SFP28, 3.4 Gbps

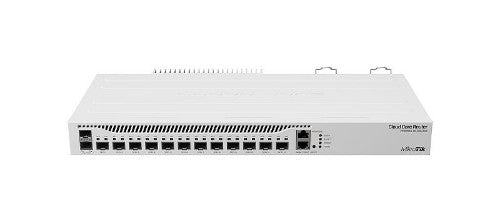

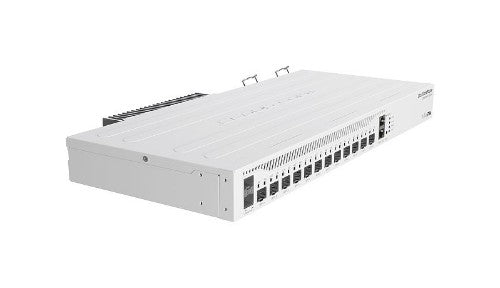

CCR2004-1G-12S+2XS is our router with the most powerful single-core performance so far. It provides incredible results in single tunnel (up to 3.4 Gbps) and BGP feed processing.

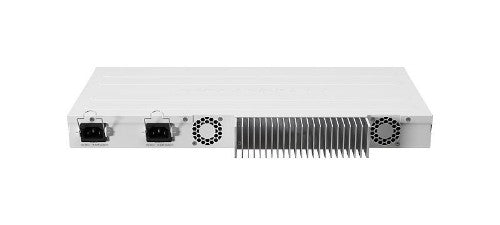

Be prepared for anything: 10G, 40G and now 25G! Paired with such MikroTik multiport products as CRS317-1G-16S+RM, CRS312-4C+8XG-RM and CRS326-24S+2Q+RM, your networking setup will know no bounds. Performance-wise, CCR2004-1G-12S+2XS is on par with the renowned CCR1009/CCR1016 routers. And with dual redundant power supply you can forget about unexpected downtime! With its elaborate port configuration, the new CCR2004-1G-12S+2XS is the perfect addition to any professional networking arsenal – it will save you tons of time in some tricky situations! Size of RAM in RouterOS v6 1792MB ECC / RouterOS v7 4GB ECC
Description
The “Improvise. Adapt. Overcome.” mindset can be very helpful, but sometimes you simply need a device that works and solves the problem without additional tinkering. The CCR2004-1G-12S+2XS does just that – forget about all connectivity troubles and expand your setup in any way you please. This handy router features 12 x 10G SFP+ and 2 x 25G SFP28 ports.CCR2004-1G-12S+2XS is our router with the most powerful single-core performance so far. It provides incredible results in single tunnel (up to 3.4 Gbps) and BGP feed processing.
Be prepared for anything: 10G, 40G and now 25G! Paired with such MikroTik multiport products as CRS317-1G-16S+RM, CRS312-4C+8XG-RM and CRS326-24S+2Q+RM, your networking setup will know no bounds. Performance-wise, CCR2004-1G-12S+2XS is on par with the renowned CCR1009/CCR1016 routers. And with dual redundant power supply you can forget about unexpected downtime! With its elaborate port configuration, the new CCR2004-1G-12S+2XS is the perfect addition to any professional networking arsenal – it will save you tons of time in some tricky situations! Size of RAM in RouterOS v6 1792MB ECC / RouterOS v7 4GB ECC
Specifications
| Ethernet LAN features | |
|---|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Memory | |
| Internal memory | 128 MB |
| Performance | |
| Voltage monitoring | Yes |
| Operating system installed | RouterOS |
| Internal memory | 128 MB |
| Built-in processor | Yes |
| Temperature monitoring | Yes |
| WAN connection | |
| Ethernet WAN | Yes |
| Network | |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Throughput | 3.4 Gbit/s |
| Ethernet interface type | Gigabit Ethernet |
| Mobile network | |
| Mobile network generation | Not supported |
| Ports & interfaces | |
| Gigabit Ethernet (copper) ports quantity | 1 |
| Serial ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Installed SFP+ modules quantity | 12 |
| Technical details | |

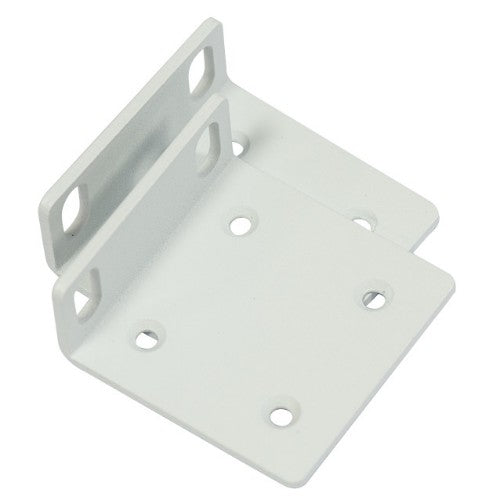

| Rack mounting | Yes |
| Built-in processor | Yes |
| Product colour | White |
| Compliance certificates | RoHS |
| Features | |
| Voltage monitoring | Yes |
| Operating system installed | RouterOS |
| Internal memory | 128 MB |
| Built-in processor | Yes |
| Certification | CE/RED, EAC |
| Temperature monitoring | Yes |
| Design | |
| Rack mounting | Yes |
| Product colour | White |
| Power | |
| Power source type | AC |
| AC input voltage | 100 - 240 V |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 60 °C |
| Weight & dimensions | |
| Width | 443 mm |
| Depth | 224 mm |
| Height | 44 mm |
| Packaging data | |

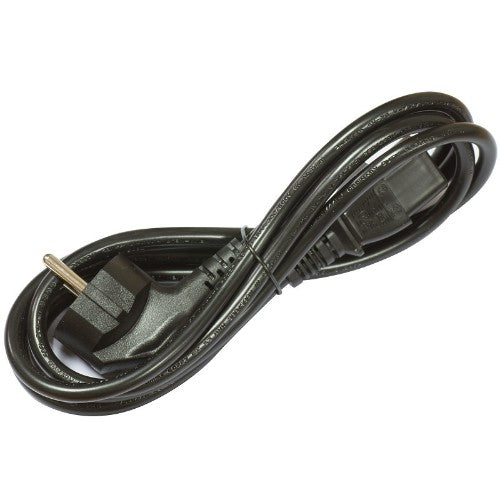

| Cables included | AC |
| Certificates | |
| Certification | CE/RED, EAC |
| Packaging content | |
| Cables included | AC |
