Description

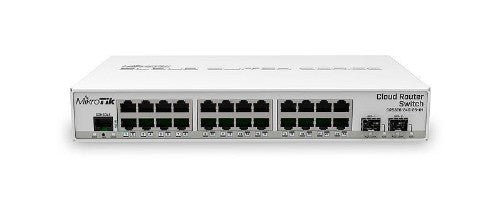

24x 10/100/1000 Ethernet, 2x SFP+, Serial port RJ45, White
Like many other MikroTik switches, CRS326-24G-2S+IN offers the dual boot option that allows you to use either the lightweight SwOS or the advanced RouterOS. The compact and quiet fanless desktop case makes this switch the perfect addition to the best home setups. And it is very easy to transport! But make no mistake – this small switch has all the power and features of its bigger rackmount analogue – the CRS326-24G-2S+RM, nothing has been removed!
CRS326-24G-2S+IN provides all the basic functionality for a managed switch, and even more: port-to- port forwarding, MAC filtering, VLAN configuration, traffic mirroring, bandwidth limitation and even adjust some MAC and IP header fields. SFP+ cage supports both 1.25G SFP and 10G SFP+ modules.
Description
A home network setup doesn’t have to be a compromise. This compact and quiet switch is packing some serious server room grade features: a pair of 10G SFP+ cages, 512 MB of RAM, 24 Gigabit Ethernet ports and a sufficient built-in CPU that can handle basic home user needs such as firewall, NAT and even some VPN. And it is extremely affordable – we are keeping the price on par with the previous generation desktop switches!Like many other MikroTik switches, CRS326-24G-2S+IN offers the dual boot option that allows you to use either the lightweight SwOS or the advanced RouterOS. The compact and quiet fanless desktop case makes this switch the perfect addition to the best home setups. And it is very easy to transport! But make no mistake – this small switch has all the power and features of its bigger rackmount analogue – the CRS326-24G-2S+RM, nothing has been removed!
CRS326-24G-2S+IN provides all the basic functionality for a managed switch, and even more: port-to- port forwarding, MAC filtering, VLAN configuration, traffic mirroring, bandwidth limitation and even adjust some MAC and IP header fields. SFP+ cage supports both 1.25G SFP and 10G SFP+ modules.
Specifications
| Management features | |
|---|---|
| Switch type | Managed |
| Ports & interfaces | |
| SFP+ module slots quantity | 2 |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Network | |
| VLAN support | Yes |
| Rate limiting | Yes |
| Port mirroring | Yes |
| IP routing | Yes |
| Ethernet LAN data rates | 1000 Mbit/s |
| 10G support | Yes |
| Security | |
| MAC address filtering | Yes |
| Design | |
| Product colour | White |
| Rack mounting | Yes |
| Certification | CE/RED, EAC, ROHS |
| Performance | |
| Memory type | DDR3-SDRAM |
| Internal memory | 512 MB |
| Flash memory | 16 MB |
| Built-in processor | Yes |
| Power | |
| Power consumption (max) | 21 W |

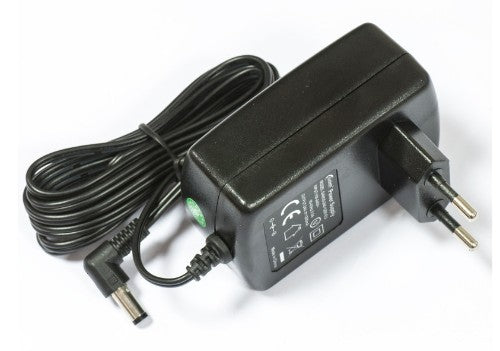

| Power supply included | Yes |
| Number of power supply units | 2 |
| Input current | 1.2 A |
| DC input voltage | 10 - 30 V |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | Passive PoE |
| Power over Ethernet (PoE) voltage | 30 V |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 60 °C |
| Virtual LAN features | |
| VLAN support | Yes |
| Weight & dimensions | |
| Width | 285 mm |
| Depth | 144 mm |
| Height | 44 mm |
| Technical details | |
| Product colour | White |
| Rack mounting | Yes |
| Built-in processor | Yes |
| Memory | |
| Memory type | DDR3-SDRAM |
| Internal memory | 512 MB |
| Flash memory | 16 MB |
| Certificates | |
| Certification | CE/RED, EAC, ROHS |
| Other features | |
| Ethernet LAN data rates | 1000 Mbit/s |
