Description
4K Displayport & USB 2 x 1 way KVM Switch
The 4K Displayport & USB 2 x 1 way KVM Switch is DP v1.2 compliant, CE, FCC regulatory approved and RoHS-compliant. It is fully compatible with a wide variety of Windows and Mac OS operating
Key Features
- Saves space and equipment cost
- Share an HDTV or display, USB keyboard & mouse with audio and
- microphone between 2 USB/DP computer and devices*
- Provides an additional USB 2.0 ports with over-current detection and protection
- Switch between devices via front push button or hotkey
- Supports Dolby True HD and DTS HD Master Audio formats
- Requirements
Windows, Mac, Linux computers: Game consoles, Blu-Ray DVD players and other Consumer Electronics devices
Description

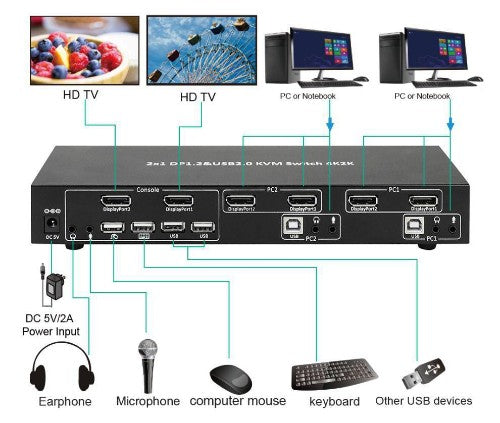

The 4K Displayport & USB 2 x 1 way KVM Switch allows you to share an HDTV or display, USB keyboard & mouse with audio and microphone between two USB and Dual head DP computers. It comes with two extra USB 2.0 ports with over-current detection and protection for additional device connections. It supports resolutions of up to 3840*2160@30Hz with video link rate up to 21.6Gbps, Dolby True HD and DTS HD Master Audio formats. Also, it features metal housing for better RF shielding and allows user to switch between devices via front push button or hotkey.The 4K Displayport & USB 2 x 1 way KVM Switch is DP v1.2 compliant, CE, FCC regulatory approved and RoHS-compliant. It is fully compatible with a wide variety of Windows and Mac OS operating
Specifications
| Ports & interfaces | |
|---|---|
| Console USB ports quantity | 4 |
| Console ports | DisplayPort |
| USB connector type | USB Type-A |
| Number of microphone inputs | 3 |
| DisplayPorts quantity | 6 |
| Number of computers controlled | 2 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DisplayPort |
| Audio connections | Yes |
| Headphone outputs | 3 |
| DC-in jack | Yes |
| USB 2.0 Type-B ports quantity | 2 |
| Performance | |
| Data transfer rate (max) | 21.6 Gbit/s |
| HD type | 4K Ultra HD |
| Video bandwidth | 30 Hz |
| Maximum resolution | 3840 x 2160 pixels |
| Technical details | |
| Product colour | Black |
| Rack mounting | No |
| Design | |
| Product colour | Black |
| Rack mounting | No |
| Housing material | Metal |
| Power | |
| Output voltage | 2 V |
| Power source | AC |
| AC input frequency | 50 - 60 Hz |
| Input voltage | 100 - 240, 5 V |
| Video | |
| HD type | 4K Ultra HD |
| Video bandwidth | 30 Hz |
| Maximum resolution | 3840 x 2160 pixels |
| Weight & dimensions | |
| Width | 288 mm |
| Depth | 171 mm |
| Height | 52 mm |
| Weight | 920 g |
| Package width | 288 mm |
| Package depth | 171 mm |
| Package height | 52 mm |
| Package weight | 1.01 kg |
| Packaging data | |
| Package width | 288 mm |
| Package depth | 171 mm |
| Package height | 52 mm |
| Package weight | 1.01 kg |
| Packaging content | |
| Manual | Yes |
| AC adapter included | Yes |
| Logistics data | |
| Harmonized System (HS) code | 85176200 |
