Description

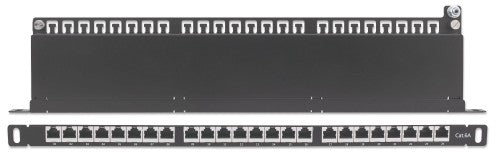

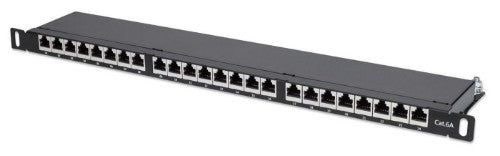

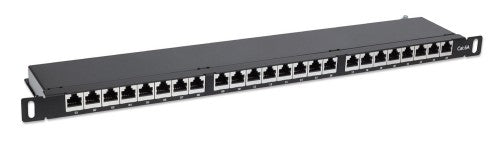

Patch Panel, Cat6a, FTP, 24-Port, 19", 0.5U, Shielded, 90° Top-Entry Punch Down Blocks, Black
The Intellinet Network Solutions Cat6a Shielded Patch Panel helps IT staff create the right Cat6a-compliant network for their organization. Whether wiring connection points for all compatible equipment or adding more ports to the network with the latest Ethernet cabling standard available, the Cat6a Shielded Patch Panel helps the network grow and evolve. The panel is designed for fully shielded twisted-pair Cat6a wires, and compatible Krone punch-down tools will help get ports wired quickly. The Intellinet Network Solutions Cat6a Shielded Patch Panel adheres to current industry standards and is 19"" rack compliant.
Key Features
- Solid and reliable terminations for copper cable, featuring a minimum of 3-micron gold-plated jack contacts
- Top-entry punch-down blocks simplify installation
- Compatible with Krone punch-down tools
- Supports 23 to 26 AWG stranded and solid wire
- For use with fully shielded twisted pair (FTP) Cat6a network cable
- Ideal for Ethernet, Fast Ethernet and Gigabit Ethernet network applications
- Meets 19"" rackmount standards
Description
Cat6a Shielded Patch Panel for proper network connectionsThe Intellinet Network Solutions Cat6a Shielded Patch Panel helps IT staff create the right Cat6a-compliant network for their organization. Whether wiring connection points for all compatible equipment or adding more ports to the network with the latest Ethernet cabling standard available, the Cat6a Shielded Patch Panel helps the network grow and evolve. The panel is designed for fully shielded twisted-pair Cat6a wires, and compatible Krone punch-down tools will help get ports wired quickly. The Intellinet Network Solutions Cat6a Shielded Patch Panel adheres to current industry standards and is 19"" rack compliant.
Specifications
| Network | |
|---|---|
| Connector contacts plating | Gold |
| Maximum data transfer rate | 1000 Mbit/s |
| Cable types supported | Cat6a |
| AWG wire size | 23/24/25/26 |
| Ports quantity | 24 |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Cabling technology | 10/100/1000Base-T(X) |
| Design | |
| Mounting | Rack mounting |
| Rack capacity | 0.5U |
| Product colour | Black, Grey |
| Certification | CE FCC |
| Certificates | |
| Certification | CE FCC |
| Compliance certificates | RoHS |
| Operational conditions | |
| Operating temperature (T-T) | 10 - 60 °C |
| Operating relative humidity (H-H) | -40 - 70% |
| Storage temperature (T-T) | 10 - 90 °C |
| Weight & dimensions | |
| Width | 482 mm |
| Weight | 1.14 kg |
| Height | 22 mm |
| Depth | 107 mm |
| Features | |
| Mounting | Rack mounting |
| Rack capacity | 0.5U |
| Product colour | Black, Grey |
| Certification | CE FCC |
| Technical details | |
| Mounting | Rack mounting |
| Operating temperature (T-T) | 10 - 60 °C |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Harmonized System (HS) code | 85371098 |
| Compliance certificates | RoHS |
| Colour | |
| Product colour | Black, Grey |
| Logistics data | |
| Harmonized System (HS) code | 85371098 |
