Description
Screen size (inch) 23.8, Panel resolution 2560x1440, Refresh rate 75 Hz, Panel type IPS, HDMI HDMI 1.4 x 1, Display Port DisplayPort 1.2 x 1, D-SUB (VGA) 1x
The Q24P2Q offers professionals a wide array of convenient features to help them get the most out of every work day. Equipped with a flat 23.8” IPS/3FL panel with QHD resolution, it features a slim, 3-sided frameless design with wide viewing angles of 178°/178°. Tiltable, swivelable, and height-adjustable, it includes a USB 3.2 hub and provides ergonomic comfort as well as eye-friendly features such as Low Blue Mode and Flicker-Free technology.
Reasons To Buy
Full Ergonomics
Feel the comfort! AOC’s height, tilt and swivel-adjustable stands help you find the most comfortable and healthy position.Pivot function

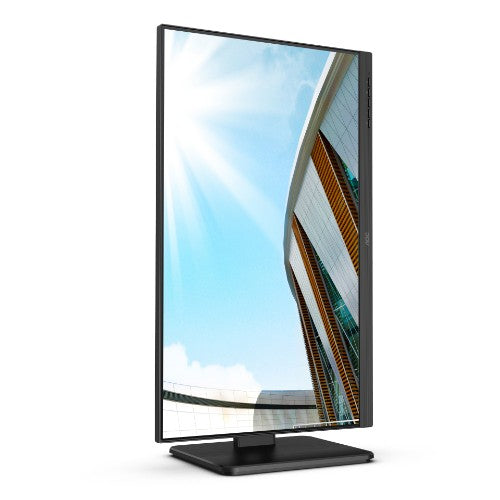

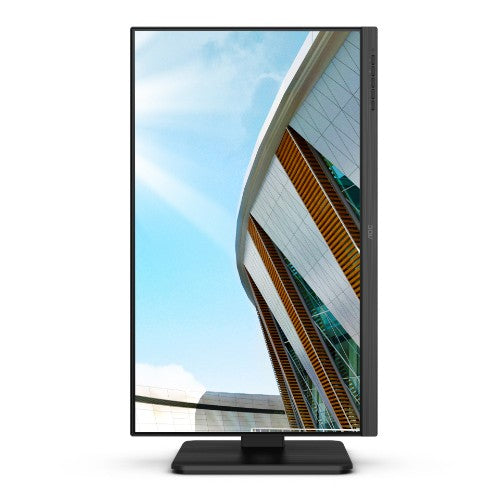

Thanks to its pivot function, your monitor can be rotated by 180° from landscape into portrait mode, especially useful for desktop publishing.Description
Stunning picture quality and productivity-boosting features in a 23.8” QHD displayThe Q24P2Q offers professionals a wide array of convenient features to help them get the most out of every work day. Equipped with a flat 23.8” IPS/3FL panel with QHD resolution, it features a slim, 3-sided frameless design with wide viewing angles of 178°/178°. Tiltable, swivelable, and height-adjustable, it includes a USB 3.2 hub and provides ergonomic comfort as well as eye-friendly features such as Low Blue Mode and Flicker-Free technology.
Specifications
| Audio | |
|---|---|
| Built-in speaker(s) | Yes |
| RMS rated power | 4 W |
| Performance | |
| Built-in speaker(s) | Yes |
| RMS rated power | 4 W |
| Built-in microphone | No |
| Built-in camera | No |
| AMD FreeSync | Yes |
| NVIDIA G-SYNC | No |
| Compatibility | VESA-P2 |
| AMD FreeSync refresh rate range | 48 - 75 Hz |
| Low Blue Light technology | Yes |
| Flicker-free technology | Yes |
| Fast charging | Yes |
| Display | |
| Display brightness (typical) | 250 cd/m² |
| Screen shape | Flat |
| Display number of colours | 16.7 million colours |
| Native aspect ratio | 16:9 |
| Pixel density | 123 ppi |
| Maximum refresh rate | 75 Hz |
| sRGB coverage (typical) | 116% |
| Adobe RGB coverage | 89% |
| Display surface | Matt |
| HD type | Quad HD |
| Display technology | LED |
| Contrast ratio (dynamic) | 50000000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Pixel pitch | 0.2058 x 0.2058 mm |
| Horizontal scan range | 30 - 114 kHz |
| Viewable size, horizontal | 52.7 cm |
| Viewable size, vertical | 29.6 cm |
| Digital horizontal frequency | 30 - 114 kHz |
| Supported graphics resolutions | 2560 x 1440 |
| Supported video modes | 1440p |
| Backlight type | W-LED |
| Display resolution | 2560 x 1440 pixels |
| Response time | 4 ms |
| Display diagonal | 60.5 cm (23.8") |
| Contrast ratio (typical) | 1000:1 |
| Display scanning frequency | VGA/HDMI 1.4/DP 1.2: 30 - 114 KHz (H), VGA/HDMI 1.4/DP 1.2: 48 - 75 Hz (V) |
| Surface hardness | 3H |
| NTSC coverage (typical) | 80% |
| Touchscreen | No |
| Panel type | IPS |
| Colour depth | 8 bit |
| DCI-P3 coverage | 90% |
| Display diagonal (metric) | 60.452 cm |
| LED backlight | Yes |
| Colour gamut standard | sRGB |
| Response time measurement type | GTG (Gray to Gray) |
| Anti-glare screen | Yes |
| AMD FreeSync refresh rate range | 48 - 75 Hz |
| Management features | |
| On Screen Display (OSD) | Yes |
| Number of OSD languages | 16 |
| On Screen Display (OSD) languages | Simplified Chinese, Traditional Chinese, Croatian, Czech, German, Dutch, English, Spanish, Finnish, French, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish, Turkish, Ukrainian |
| Multimedia | |
| Number of speakers | 2 |
| Built-in speaker(s) | Yes |
| RMS rated power | 4 W |
| Built-in microphone | No |
| Built-in camera | No |
| Power | |
| Power cable length | 1.8 m |
| Power supply type | Internal |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| External power adapter | No |
| Power consumption (standby) | 0.3 W |
| Power consumption (typical) | 24 W |
| Power consumption (off) | 0.3 W |
| Energy efficiency scale | A to G |
| Energy efficiency class (SDR) | E |
| Energy consumption (SDR) per 1000 hours | 18 kWh |
| European Product Registry for Energy Labelling (EPREL) code | 405262 |
| Design | |
| Market positioning | Business |
| Heavy metals free | Hg (mercury) |
| Feet colour | Black |
| Certification | WEEE,REACH compliant,RoHs compliant,HF,CB,TUV-GS-Mark,ISO 9241-307,FCC,Microsoft WHQL |
| Product colour | Black |
| Front bezel colour | Black |
| Frameless design | Yes |
| Detachable stand | Yes |
| Exterior finish type | Textured |
| Camera | |
| Built-in camera | No |
| Ports & interfaces | |
| Built-in USB hub | Yes |
| USB hub version | 3.2 Gen 1 (3.1 Gen 1) |
| USB Type-A downstream ports quantity | 4 |
| Headphone out | Yes |
| DVI port | No |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Audio input | Yes |
| Headphone connectivity | 3.5 mm |
| Microphone in | Yes |
| HDMI | Yes |
| HDMI version | 1.4 |
| DisplayPort version | 1.2 |
| Technical details | |
| External power adapter | No |
| Height (without stand) | 326.4 mm |
| Depth (without stand) | 50.7 mm |
| Width (without stand) | 540.2 mm |
| Feet colour | Black |
| Cable lock slot | Yes |
| HDMI | Yes |
| Built-in microphone | No |
| Product colour | Black |
| Recyclable packaging material | 100% |
| Front bezel colour | Black |
| Sustainability certificates | EPEAT Silver |
| Doesn't contain | Mercury, PVC/BFR |
| Warranty period | 3 year(s) |
| Power supply type | Internal |
| Weight (with stand) | 4.79 kg |
| Surface hardness | 3H |
| Touchscreen | No |
| Ergonomics | |
| VESA mounting | Yes |
| Cable lock slot | Yes |
| Panel mounting interface | 100 x 100 mm |
| Swivelling | Yes |
| Swivel angle range | -180 - 180° |
| Tilt angle range | -5 - 35° |
| Pivot | Yes |
| On Screen Display (OSD) | Yes |
| Pivot angle | -90 - 90° |
| Number of OSD languages | 16 |
| On Screen Display (OSD) languages | Simplified Chinese, Traditional Chinese, Croatian, Czech, German, Dutch, English, Spanish, Finnish, French, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish, Turkish, Ukrainian |
| Height adjustment | Yes |
| Cable lock slot type | Kensington |
| Tilt adjustment | Yes |
| Adjustable height (max) | 15 cm |
| Weight & dimensions | |
| Height (without stand) | 326.4 mm |
| Depth (without stand) | 50.7 mm |
| Width (without stand) | 540.2 mm |
| Width (with stand) | 540.2 mm |
| Depth (with stand) | 200.1 mm |
| Height (with stand) | 513 mm |
| Weight (with stand) | 4.79 kg |
| Weight (without stand) | 3.44 kg |
| Package width | 634 mm |
| Package depth | 160 mm |
| Package height | 513 mm |
| Package weight | 7.65 kg |
| Packaging data | |
| Package width | 634 mm |
| Package depth | 160 mm |
| Package height | 513 mm |
| Package weight | 7.65 kg |
| Package type | Box |
| DVI cable length | 1.8 m |
| VGA cable length | 1.8 m |
| Stand included | Yes |
| Power cable length | 1.8 m |
| Cables included | Audio (3.5mm), DVI, DisplayPort, HDMI, VGA |
| Audio cable length | 1.8 m |
| DisplayPort cable length | 1.8 m |
| HDMI cable length | 1.8 m |
| Packaging content | |
| Stand included | Yes |
| Power cable length | 1.8 m |
| Cables included | Audio (3.5mm), DVI, DisplayPort, HDMI, VGA |
| Audio cable length | 1.8 m |
| DisplayPort cable length | 1.8 m |
| HDMI cable length | 1.8 m |
| DVI cable length | 1.8 m |
| VGA cable length | 1.8 m |
| Sustainability | |
| European Product Registry for Energy Labelling (EPREL) code | 405262 |
| Sustainability certificates | EPEAT Silver |
| Doesn't contain | Mercury, PVC/BFR |
| System requirements | |
| Compatibility | VESA-P2 |
| Other features | |
| Heavy metals free | Hg (mercury) |
| Compatibility | VESA-P2 |
| Certification | WEEE,REACH compliant,RoHs compliant,HF,CB,TUV-GS-Mark,ISO 9241-307,FCC,Microsoft WHQL |
| Recyclable packaging material | 100% |
| Exterior finish type | Textured |
| DCI-P3 coverage | 90% |
| Light effects | No |
| Warranty period | 3 year(s) |
| Height (without stand) | 326.4 mm |
| Depth (without stand) | 50.7 mm |
| Width (without stand) | 540.2 mm |
| HDMI | Yes |
| Surface hardness | 3H |
| AMD FreeSync refresh rate range | 48 - 75 Hz |
| Energy efficiency scale | A to G |
| Power supply type | Internal |
| Power cable length | 1.8 m |
| Touchscreen | No |
| External power adapter | No |
| Package type | Box |
| Front bezel colour | Black |
| Recycling data | |
| Post-consumer recycled plastic | 85% |
| Certificates | |
| Certification | WEEE,REACH compliant,RoHs compliant,HF,CB,TUV-GS-Mark,ISO 9241-307,FCC,Microsoft WHQL |
| Logistics data | |
| Harmonized System (HS) code | 85285210 |
