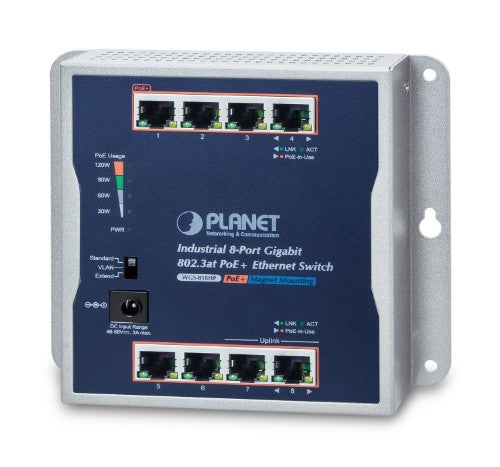

Industrial 8-Port 10/100/1000T Wall-mounted Gigabit PoE+ Switch
Key Features
- 8-Port 10/100/1000BASE-T Gigabit RJ45 copper with 8-Port IEEE 802.3at PoE+ Injector (Port-1 to Port-8)
- Complies with IEEE 802.3at Power over Ethernet Plus, end-span PSE
- Backward compliant with IEEE 802.3af Power over Ethernet end-span PSE
- Up to 8 ports of IEEE 802.3at devices powered
- Supports PoE Power up to 30.8 watts for each PoE port
- Auto detects powered device (PD)
- Circuit protection prevents power interference between ports
- Remote power feeding up to 250 meters (in extend mode)
- High performance Store and Forward architecture
- IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation
- 9K jumbo frame supports in 1000Mbps duplex mode
- Automatic address learning and address aging
- Compact size; fixed wall mounting, magnetic wall mounting or DIN-rail mounting
- IP30 metal chassis
- Supports -20 to 60 degrees C operating temperature
- LED indicators for real-time PoE usage
- 48V~56V DC input range
Description
Easily-deployed and Expanded PoE Network
Designed to be installed in a wall enclosure or simply mounted at any convenient location on a wall, PLANET WGS-818HP is innovative, wall-mounted industrial 8-port Gigabit Ethernet Switches with 8-port 802.3at Power over Ethernet Plus injector. They come in a compact but rugged IP30 metal housing. Featuring a total PoE budget of 60/120 watts, ultra networking speed and operating temperature ranging from -20 to 60 degrees C, the WGS-818HP is ideal solutions to meet the demand for sufficient PoE power for the following network applications.
•Building / Home automation network
•Internet of things (IoT)
•IP surveillance and wireless
The WGS-818HP is able to operate reliably, stably and quietly in any environment without affecting its performance, and provides a quick, safe and easy deployment of PoE PDs with power feeding.
Specifications
| Performance |
|---|
| Stackable |
Yes |
| Technical details |
|---|
| Product colour |
Grey |
| Stackable |
Yes |
| Rack mounting |
Yes |
| Management features |
|---|
| Switch type |
Unmanaged |
| Ports & interfaces |
|---|
| Basic switching RJ-45 Ethernet ports quantity |
8 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Network |
|---|
| MAC address auto-learning supported |
Yes |
| MAC address auto-aging supported |
Yes |
| Networking standards |
IEEE 802.3,IEEE 802.3ab,IEEE 802.3af,IEEE 802.3at,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z |
| 10G support |
No |
| Design |
|---|
| Wall mountable |
Yes |
| DIN rail mounting |
Yes |
| Product colour |
Grey |
| Stackable |
Yes |
| LED indicators |
PoE, Power |
| Rack mounting |
Yes |
| Indication |
|---|
| LED indicators |
PoE, Power |
| Power |
|---|
| Power supply included |
No |
| Power over Ethernet (PoE) |
|---|
| Power over Ethernet (PoE) |
Yes |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-20 - 70 °C |
| Storage relative humidity (H-H) |
5 - 95% |
| Operating temperature (T-T) |
-20 - 60 °C |
| Operating relative humidity (H-H) |
5 - 95% |
| Weight & dimensions |
|---|
| Width |
148 mm |
| Depth |
25 mm |
| Height |
134 mm |
| Weight |
474 g |
