Description

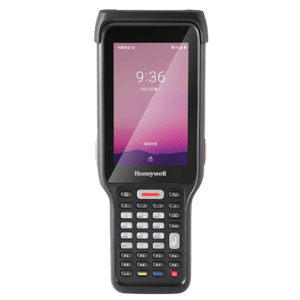

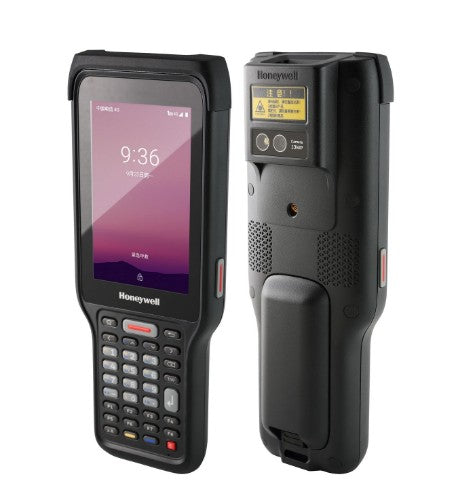

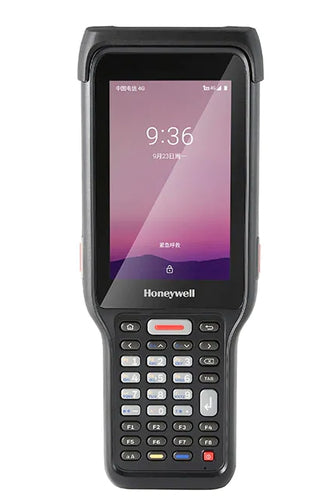

ScanPal EDA61K Handheld Computer, 4" LED Multi-touch, Qualcomm SDM450 1.8 GHz octa-core, 3GB RAM, 32GB Flash, USB type C, IEEE 802.11 a/b/g/n/ac, GPS, Bluetooth 4.2, LTE, EX20, Android 9
Fast Data Access
Responsive performance and quick access to business-critical information with the speedy Qualcomm® 1.8 GHz octa-core chipset, ample memory and reliable Wi-Fi.
Enhanced Productivity
Snappy, accurate data capture from a few centimeters to up to 15 meters with Honeywell’s slim N6703 and long-range EX20 scan imagers, and a 13-megapixel, autofocus camera.
Reduced Operational Downtime
Uninterrupted operation for more than two full shifts with Honeywell’s 7,000 mAh, hot-swappable, lithium-ion smart battery pack that lasts 25 hours on a single charge.
Reliable Connections
Stay connected with fast, dual-band, 802.11 a/b/g/n/ac Wi-Fi, Bluetooth® 4.2 and cellular support in most countries.
Description
The Honeywell ScanPal™ EDA61K is a rugged, keyed mobile computer that helps businesses automate and error-proof workflows in indoor or outdoor warehouses, distribution centers and retail backrooms. With a battery that lasts for two to three shifts and a lightweight, ergonomically balanced design that minimizes user fatigue, the EDA61K helps keep material flowing smoothly all day long, even during peak season.Fast Data Access
Responsive performance and quick access to business-critical information with the speedy Qualcomm® 1.8 GHz octa-core chipset, ample memory and reliable Wi-Fi.
Enhanced Productivity
Snappy, accurate data capture from a few centimeters to up to 15 meters with Honeywell’s slim N6703 and long-range EX20 scan imagers, and a 13-megapixel, autofocus camera.
Reduced Operational Downtime
Uninterrupted operation for more than two full shifts with Honeywell’s 7,000 mAh, hot-swappable, lithium-ion smart battery pack that lasts 25 hours on a single charge.
Reliable Connections
Stay connected with fast, dual-band, 802.11 a/b/g/n/ac Wi-Fi, Bluetooth® 4.2 and cellular support in most countries.
Specifications
| Display | |
|---|---|
| Touchscreen type | Capacitive |
| Touch technology | Multi-touch |
| Touchscreen | Yes |
| Display resolution | 800 x 480 pixels |
| Display diagonal | 10.2 cm (4") |
| Memory | |
| Internal memory | 3 GB |
| Maximum memory card size | 128 GB |
| Compatible memory cards | MicroSDHC |
| Flash memory | 32 GB |
| Processor | |
| Processor frequency | 1.8 GHz |
| Processor manufacturer | Qualcomm |
| Built-in processor | Yes |
| Processor family | Qualcomm |
| Number of cores | 8 |
| Network | |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Data network | LTE |
| Bluetooth version | 4.2 |
| Bluetooth | Yes |
| Wi-Fi | Yes |
| GPS Performance | |
| GPS (satellite) | Yes |
| Camera | |
| Built-in camera | No |
| Performance | |
| Barcode reader | Yes |
| Drop proof | Yes |
| Drop proof | 150 cm |
| International Protection (IP) code | IP65 |
| Product colour | Black |
| Keyboard layout | Numeric |
| Software | |
| Operating system version | 9.0 |
| Operating system installed | Android |
| Operating system upgradeable | Yes |
| Power | |
| Battery voltage | 3.6 V |
| Battery capacity | 7000 mAh |
| Battery technology | Lithium-Ion (Li-Ion) |
| Weight & dimensions | |
| Width | 78 mm |
| Depth | 41.9 mm |
| Height | 206 mm |
| Weight | 460 g |
| Operational conditions | |
| Storage temperature (T-T) | -30 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | -20 - 50 °C |
| Wireless LAN features | |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Wi-Fi | Yes |
| Data transmission | |
| Data network | LTE |
| Bluetooth version | 4.2 |
| Bluetooth | Yes |
| Technical details | |
| Barcode reader | Yes |
| Drop proof | Yes |
| Drop proof | 150 cm |
| International Protection (IP) code | IP65 |
| Product colour | Black |
| Keyboard layout | Numeric |
| Harmonized System (HS) code | 84713000 |
| Logistics data | |
| Harmonized System (HS) code | 84713000 |
