16 x Gigabit LAN, PoE (802.3af/at), 2 x SFP+, 98DX226S (CPU), 256MB (RAM), 16MB (ROM)
Description
Powering a bunch of access points or IP cameras and a few uplinks on a tower has never been easier. netPower 16P has 16 Gigabit Ethernet ports with PoE-out and two SFP+ ports for 10G fiber uplinks.

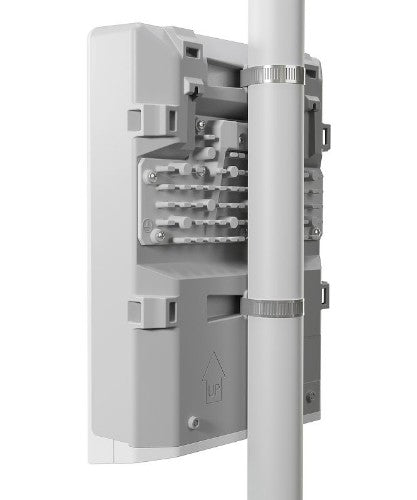

Its sturdy and compact outdoor enclosure allows the switch to be mounted in all kinds of environments – from damp attics and shafts to towers, masts and poles with hose clamps.
netPower 16P has a non-blocking throughput of 36 Gbps, switching capacity of 72 Gbps and forwarding rate of 53.6 Mpps.
Device itself does not have onboard voltage converter. You need 24V PSU to have 24V PoE out and/or 48V PSU to have 48V PoE out (IEEE 802.3 at/af).
* Power supply is NOT included with the product. You are welcome to use your preferred power option, like battery pack etc. Compatible also with MikroTik power supplies 24HPOW, 48POW and 48V2A96W
Specifications
| Performance |
|---|
| Stackable |
No |
| Processor frequency |
800 MHz |
| Internal memory |
256 MB |
| Flash memory |
16 MB |
| Built-in processor |
Yes |
| Processor model |
98DX226S |
| Power |
|---|
| Power connector |
DC-in jack |
| Power consumption (max) |
316 W |
| Power supply included |
Yes |
| DC input voltage |
18 - 57 V |
| Technical details |
|---|
| Product colour |
White |
| Stackable |
No |
| Processor frequency |
800 MHz |
| Rack mounting |
No |
| Built-in processor |
Yes |
| Management features |
|---|
| Switch layer |
L2/L3 |
| Ports & interfaces |
|---|
| SFP+ module slots quantity |
2 |
| Basic switching RJ-45 Ethernet ports quantity |
16 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Power connector |
DC-in jack |
| Network |
|---|
| Networking standards |
IEEE 802.3af, IEEE 802.3at |
| 10G support |
No |
| Data transmission |
|---|
| Switching capacity |
72 Gbit/s |
| Forwarding rate |
53.6 Mpps |
| Certificates |
|---|
| Certification |
CE/RED, EAC, RoHS |
| Memory |
|---|
| Internal memory |
256 MB |
| Flash memory |
16 MB |
| Design |
|---|
| Product colour |
White |
| Stackable |
No |
| Certification |
CE/RED, EAC, RoHS |
| Rack mounting |
No |
| Temperature sensor |
Yes |
| Power over Ethernet (PoE) |
|---|
| Power over Ethernet (PoE) ports quantity |
16 |
| Power over Ethernet (PoE) |
Yes |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-40 - 70 °C |
| Weight & dimensions |
|---|
| Width |
212 mm |
| Depth |
78 mm |
| Height |
303 mm |
