Description
88F3720, 1GHz, 256MB, 802.3af/at, 6W
It can easily cover a distance of 1500 meters and reach fiber-like speed, and we have made some serious structural improvements. With the latest antenna technologies, this device is very compact, but even more durable than its predecessors.
The new form-factor has been designed with snowy areas in mind – you won’t have to worry about huge chunks of snow getting stuck and messing with the signal. Due to its size and shape, the nRAY also attracts less unwanted attention. Using the special fine-tune adjustment screws, a perfect alignment can be achieved.

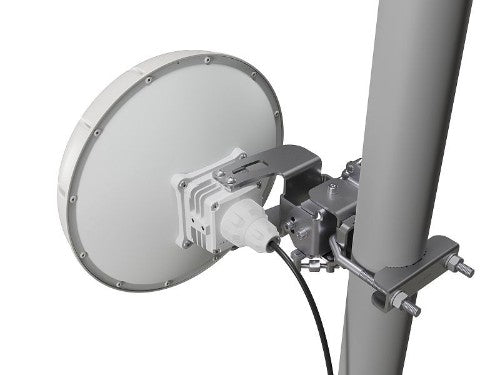

The 60 GHz frequency is unaffected by the crowded wireless spectrum, so you can enjoy a smooth connection even in a busy urban environment. A powerful arm64 dual-core CPU running at 1 GHz ensures wire speed throughput in nearly all packet sizes. The included devices are preconfigured to connect automatically, simply point them at one another and power them on! We have included the power supplies, PoE injectors and a handy precision mount for easier alignment - the solidMOUNT. It is an advanced pole mount metal adapter that allows adjustment both vertically and horizontally.
Description
Our team has gathered and taken into account your feedback to make a worthy successor of our popular Wireless Wire Dish. Now we are proud to present the best plug-and-play 60 GHz point-to-point link solution to date – the Wireless Wire nRAY. It is a kit of two pre-paired devices that make a secure AES encrypted wireless connection.It can easily cover a distance of 1500 meters and reach fiber-like speed, and we have made some serious structural improvements. With the latest antenna technologies, this device is very compact, but even more durable than its predecessors.
The new form-factor has been designed with snowy areas in mind – you won’t have to worry about huge chunks of snow getting stuck and messing with the signal. Due to its size and shape, the nRAY also attracts less unwanted attention. Using the special fine-tune adjustment screws, a perfect alignment can be achieved.
The 60 GHz frequency is unaffected by the crowded wireless spectrum, so you can enjoy a smooth connection even in a busy urban environment. A powerful arm64 dual-core CPU running at 1 GHz ensures wire speed throughput in nearly all packet sizes. The included devices are preconfigured to connect automatically, simply point them at one another and power them on! We have included the power supplies, PoE injectors and a handy precision mount for easier alignment - the solidMOUNT. It is an advanced pole mount metal adapter that allows adjustment both vertically and horizontally.
Specifications
| Data transmission | |
|---|---|
| Ethernet LAN data rates | 10,100,300 Mbit/s |
| Maximum data transfer rate | 2000 Mbit/s |
| Performance | |
| Maximum outdoor range | 1500 m |
| Ethernet LAN data rates | 10,100,300 Mbit/s |
| Certification | CE/RED, FCC, IC, EAC, ROHS |
| Maximum data transfer rate | 2000 Mbit/s |
| Operating system installed | RouterOS |
| Built-in processor | Yes |
| Processor model | 88F3720 |
| Wireless LAN features | |
| Maximum outdoor range | 1500 m |
| Certificates | |
| Certification | CE/RED, FCC, IC, EAC, ROHS |
| Features | |
| Maximum outdoor range | 1500 m |
| Ethernet LAN data rates | 10,100,300 Mbit/s |
| Maximum data transfer rate | 2000 Mbit/s |
| Transmitting power (CE) | 55 dBm |
| Operating system installed | RouterOS |
| Built-in processor | Yes |
| Processor model | 88F3720 |
| Security | |
| Security algorithms | AES |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
| Power | |
| Power consumption (typical) | 6 W |
| Power over Ethernet (PoE) | Yes |
| Input current | 0.38 A |
| AC input voltage | 24 V |
| Design | |
| Placement | Pole |
| Product colour | White |
| Certification | CE/RED, FCC, IC, EAC, ROHS |
| Antenna | |
| Antenna type | Internal |
| Processor | |
| Built-in processor | Yes |
| Weight & dimensions | |
| Width | 261 mm |
| Depth | 166 mm |
| Height | 261 mm |
| Packaging data | |
| Mounting kit | Yes |
| Packaging content | |
| Mounting kit | Yes |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 70 °C |
| Logistics data | |
| Quantity per pack | 2 pc(s) |
