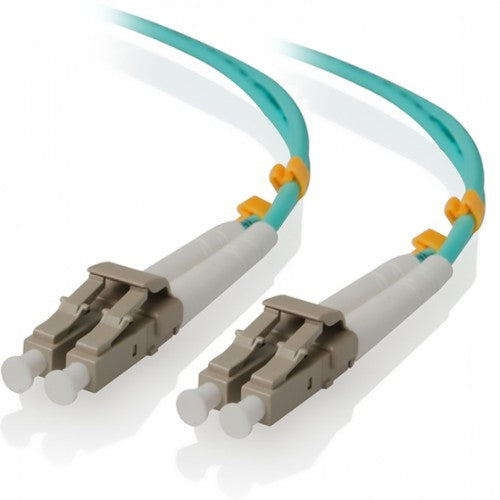

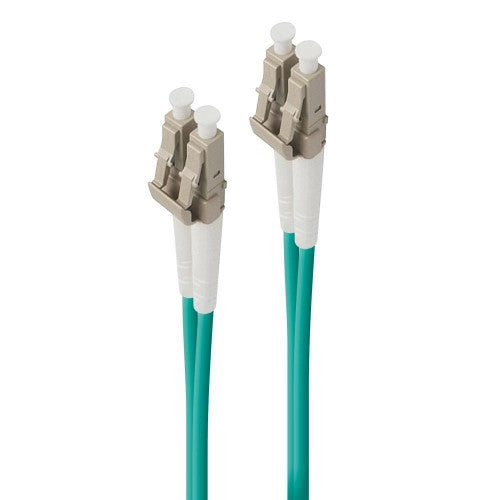

ALOGIC 1.5m LC-LC 10GbE Multi Mode Duplex LSZH Fibre Cable 50/125 OM3
Key Features
- Supports 10Gigabit applications.
- Multi Mode OM3 fibre optic cable.
- Available in various lengths starting from 0.5m to 100m length.
- Low Smoke Zero Halogen Jacket for minimal toxic emissions in case of fire.
- 100% optically tested and provided with test reports.
Description
The Multi Mode OM3 cables are designed to support high transfer speed, the cables are capable of supporting up to 10gigabit applications at the same time being backward compatible with 50/125 OM2 infrastructure. The cables meet or exceed industry standard specifications; each cable is individually tested for maximum reliability and comes with performance reports.The ALOGIC OM3 Patch Cables are available in various lengths starting from 0.5m to 100m length
Specifications
| Features |
|---|
| Fibre optic type |
OM3 |
| Jacket material |
Low smoke zero halogen (LSZH) |
| Fiber mode structure |
Multi-mode |
| Connector 1 |
LC |
| Connector 2 |
LC |
| Cable length |
1.5 m |
| Full duplex |
Yes |
| Core diameter |
50 µm |
| Cladding diameter |
125 µm |
| Insertion loss |
0.2 dB |
| Data transfer rate |
10 Gbit/s |
| Ethernet interface type |
10 Gigabit Ethernet |
| Wavelengths supported |
850,1300 nm |
| Product colour |
Turquoise |
| Connector 2 gender |
Male |
| Connector 1 gender |
Male |
| Certification |
ETL/c-ETL |
| Harmonized System (HS) code |
85447000 |
| Certificates |
|---|
| Certification |
ETL/c-ETL |
| Weight & dimensions |
|---|
| Cable diameter |
2 mm |
| Cable length |
1.5 m |
| Packaging content |
|---|
| Quantity per pack |
1 pc(s) |
| Technical details |
|---|
| Jacket material |
Low smoke zero halogen (LSZH) |
| Fiber mode structure |
Multi-mode |
| Connector 1 |
LC |
| Connector 2 |
LC |
| Cable length |
1.5 m |
| Full duplex |
Yes |
| Core diameter |
50 µm |
| Cladding diameter |
125 µm |
| Insertion loss |
0.2 dB |
| Number of optical fibres |
2 |
| Data transmission |
|---|
| Data transfer rate |
10 Gbit/s |
| Packaging data |
|---|
| Quantity per pack |
1 pc(s) |
| Logistics data |
|---|
| Quantity per pack |
1 pc(s) |
| Harmonized System (HS) code |
85447000 |
| Other features |
|---|
| Number of optical fibres |
2 |
