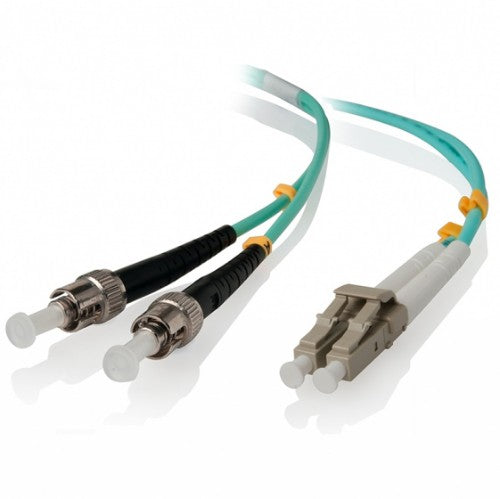

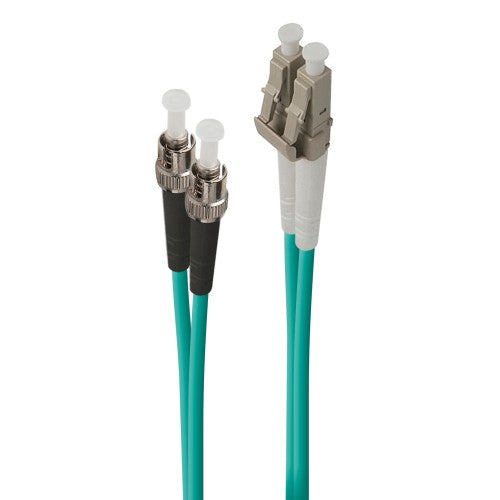

ALOGIC 3m LC-ST 40G/100G Multi Mode Duplex LSZH Fibre Cable 50/125 OM4
Key Features
- Supports 100Gigabit applications.
- Multi Mode OM4 fibre optic cable.
- Available in various lengths starting from 1m to 10m length.
- Low Smoke Zero Halogen Jacket for minimal toxic emissions in case of fire.
- 100% optically tested and provided with test reports.
Description
The Multi Mode OM4 cables are designed to support very high transfer speed, the cables are capable of supporting up to 100gigabit applications at the same time being backward compatible with OM3 and OM2 infrastructure. The cables meet or exceed industry standard specifications; each cable is individually tested for maximum reliability and comes with performance reports.The ALOGIC OM4 Patch Cables are available in various lengths starting from 1m to 10m length.
Specifications
| Features |
|---|
| Fibre optic type |
OM4 |
| Jacket material |
Low smoke zero halogen (LSZH) |
| Fiber mode structure |
Multi-mode |
| Connector 1 |
LC |
| Connector 2 |
ST |
| Cable length |
3 m |
| Full duplex |
Yes |
| Core diameter |
50 µm |
| Cladding diameter |
125 µm |
| Insertion loss |
0.5 dB |
| Data transfer rate |
100 Gbit/s |
| Ethernet interface type |
40 Gigabit Ethernet, 100 Gigabit Ethernet |
| Wavelengths supported |
850,1300 nm |
| Product colour |
Turquoise |
| Connector 2 gender |
Male |
| Connector 1 gender |
Male |
| Certification |
ETL/c-ETL |
| Harmonized System (HS) code |
85447000 |
| Certificates |
|---|
| Certification |
ETL/c-ETL |
| Weight & dimensions |
|---|
| Cable diameter |
3 mm |
| Cable length |
3 m |
| Packaging content |
|---|
| Quantity per pack |
1 pc(s) |
| Technical details |
|---|
| Jacket material |
Low smoke zero halogen (LSZH) |
| Fiber mode structure |
Multi-mode |
| Connector 1 |
LC |
| Connector 2 |
ST |
| Cable length |
3 m |
| Full duplex |
Yes |
| Core diameter |
50 µm |
| Cladding diameter |
125 µm |
| Insertion loss |
0.5 dB |
| Number of optical fibres |
2 |
| Data transmission |
|---|
| Data transfer rate |
100 Gbit/s |
| Packaging data |
|---|
| Quantity per pack |
1 pc(s) |
| Logistics data |
|---|
| Quantity per pack |
1 pc(s) |
| Harmonized System (HS) code |
85447000 |
| Other features |
|---|
| Number of optical fibres |
2 |
