Description

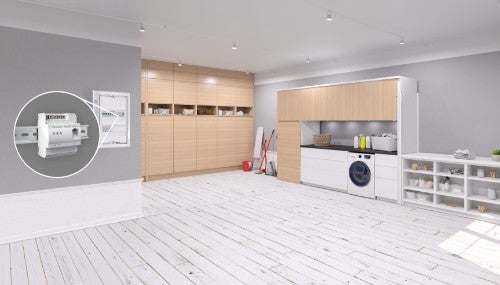

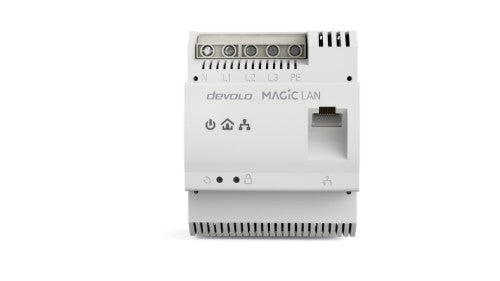

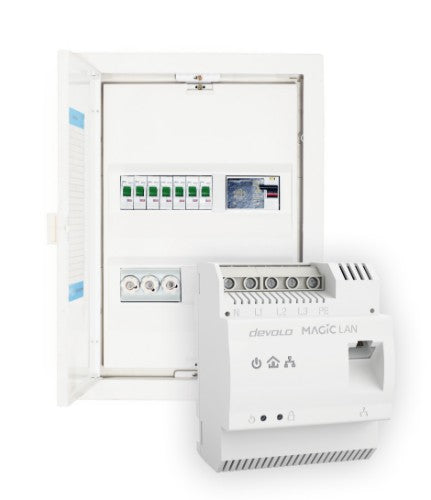

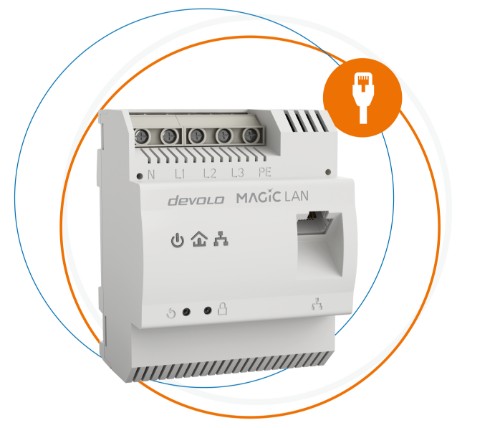

Magic 2 LAN DINrail, 118 x 190 x 92 mm, 405 g, 1200/2400 (Mbps)
Description
Specifications
| Performance | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN (RJ-45) ports | 1 |
| Maximum data transfer rate | 2400 Mbit/s |
| Networking standards | IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Technical details | |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN (RJ-45) ports | 1 |
| Maximum data transfer rate | 2400 Mbit/s |
| Networking standards | IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| LED indicators | Yes |
| Product colour | White |
| Certification | CE |
| Harmonized System (HS) code | 85171800 |
| Power | |
| Power consumption (typical) | 4.8 W |
| Power consumption (standby) | 0.7 W |
| AC input voltage | 196 - 250 V |
| AC input frequency | 50 Hz |
| Design | |
| LED indicators | Yes |
| Product colour | White |
| Certification | CE |
| System requirements | |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 55 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Width | 118 mm |
| Depth | 92 mm |
| Height | 190 mm |
| Antenna length | 40.5 cm |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
| Harmonized System (HS) code | 85171800 |
