Description

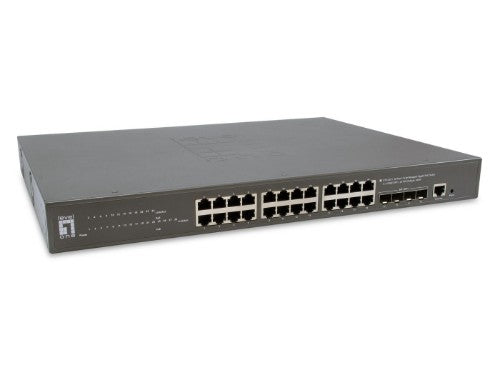

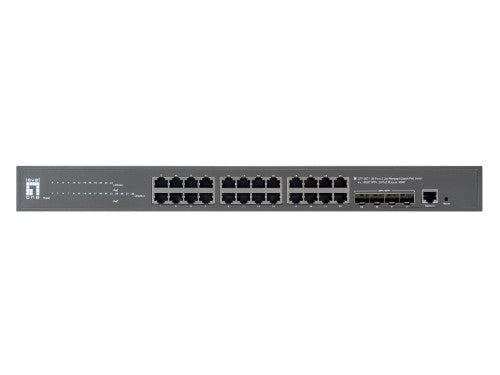

28-Port L3 Lite Managed Gigabit PoE Switch, 4 x10GbE SFP+, 24 PoE Outputs, 400W
The GTP-2871 PoE-enabled switches features an IEEE 802.3af/at certified. are ideal for businesses looking to power VoIP phones, wireless access points or network cameras. The GTP-2871 24-port PoE Switch supports up to 30 W of power output giving you flexibility in power allocation for a variety of powered devices enabling you to scale your operations to meet business growth, operational cost savings, and ease of management.
Key Features
- 24 Gigabit PoE ports and 4 10-Gigabit SFP+ slots
- IEEE 802.3af/at PoE compliant to simplify deployment and installation
- Total PoE power budget: 400W, up to 30W per port
- Virtual stacking supports up to 4 switches in a single logical stack for unified management, monitoring and configuration
- Supports port-based VLAN, IEEE 802.1Q VLAN Tagging and GVRP
- IEEE 802.1d/w/s Spanning Tree Protocol (STP) and port mirroring
- Supports IPv4/IPv6 network operation
- Supports unknown unicast / broadcast / multicast storm control
- IP Multicast Filtering through IGMP Snooping V1 / V2 / V3
- Dynamic ARP Inspection (DAI) protects switches against ARP spoofing
Description
The GTP-2871 is LevelOne latest generation of 28-Port L3 Lite Managed Gigabit PoE Switch, with 4 10G SFP+ port connectivity. offers powerful L2 and L3 Lite features, better PoE functionality with 400W PoE power budget and usability, The switch also supports the most advanced IPv6 management,IPv6 security, and IPv6 multicast control in accordance with the growth of IPv6 deployment.The GTP-2871 PoE-enabled switches features an IEEE 802.3af/at certified. are ideal for businesses looking to power VoIP phones, wireless access points or network cameras. The GTP-2871 24-port PoE Switch supports up to 30 W of power output giving you flexibility in power allocation for a variety of powered devices enabling you to scale your operations to meet business growth, operational cost savings, and ease of management.
Specifications
| Management features | |
|---|---|
| Traffic classification | Yes |
| ARP inspection | Yes |
| Reset button | Yes |
| Switch type | Managed |
| Web-based management | Yes |
| System event log | Yes |
| Quality of Service (QoS) support | Yes |
| Multicast support | Yes |
| Switch layer | L3 |
| Configuring Location Settings (CLI) | Yes |
| Ports & interfaces | |
| SFP+ module slots quantity | 4 |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 24 |
| Fiber ports quantity | 4 |
| Fiber optic connector | SFP+ |
| Power connector | AC-in jack |
| Network | |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ag, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3ah, IEEE 802.3at, IEEE 802.3az, IEEE 802.3x, IEEE 802.3z |
| Full duplex | Yes |
| Spanning tree protocol | Yes |
| Rate limiting | Yes |
| Port mirroring | Yes |
| Link aggregation | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Broadcast storm control | Yes |
| 10G support | Yes |
| IGMP snooping | Yes |
| IGMP proxy | Yes |
| Data transmission | |
| Jumbo frames | 12000 |
| Packet buffer memory | 1.5 MB |
| MAC address table | 16000 entries |
| Switching capacity | 128 Gbit/s |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Maximum data transfer rate | 10 Gbit/s |
| Static route | Yes |
| Forwarding rate | 95.232 Mpps |
| Security | |
| Authentication | MAC-based authentication |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| Queue scheduling algorithms | Priority queuing (PQ), Weighted Round Robin (WRR) |
| Authentication type | RADIUS |
| IGMP proxy | Yes |
| DHCP features | DHCP relay, DHCP server, DHCP snooping |
| Multicast features | |
| Multicast support | Yes |
| Design | |
| Reset button | Yes |
| Product colour | Grey |
| LED indicators | Yes |
| Housing material | Metal |
| Rack mounting | Yes |
| Country of origin | China |
| Certification | CE |
| Performance | |
| Plug and Play | Yes |
| Virtual stacking (units) | 4 |
| Mean time between failures (MTBF) | 150000 h |
| Internal memory | 512 MB |
| Flash memory | 32 MB |
| Firmware upgradeable | Yes |
| Packet buffer memory | 1.5 MB |
| Harmonized System (HS) code | 85176990 |
| Power | |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 468.2 W |
| Input current | 6 A |
| Power connector | AC-in jack |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 400 W |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 0 - 45 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Width | 330 mm |
| Depth | 440 mm |
| Height | 44.5 mm |
| Weight | 4.48 kg |
| Packaging content | |
| Rack mount kit | Yes |
| Quick start guide | Yes |
| Cables included | AC |
| Rubber feet | Yes |
| Resource CD | Yes |
| Packaging data | |
| Rubber feet | Yes |
| Resource CD | Yes |
| Package width | 390 mm |
| Package depth | 596 mm |
| Package height | 80 mm |
| Package weight | 6 kg |
| Rack mount kit | Yes |
| Quick start guide | Yes |
| Cables included | AC |
| Optical fiber | |
| Fiber optic connector | SFP+ |
| Technical details | |
| Virtual stacking (units) | 4 |
| Product colour | Grey |
| Mean time between failures (MTBF) | 150000 h |
| Housing material | Metal |
| Firmware upgradeable | Yes |
| Rack mounting | Yes |
| Compliance certificates | RoHS |
| Memory | |
| Packet buffer memory | 1.5 MB |
| Internal memory | 512 MB |
| Flash memory | 32 MB |
| Certificates | |
| Certification | CE |
| Compliance certificates | RoHS |
| Indication | |
| LED indicators | Yes |
| Other features | |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Country of origin | China |
| Logistics data | |
| Country of origin | China |
| Harmonized System (HS) code | 85176990 |
