Description

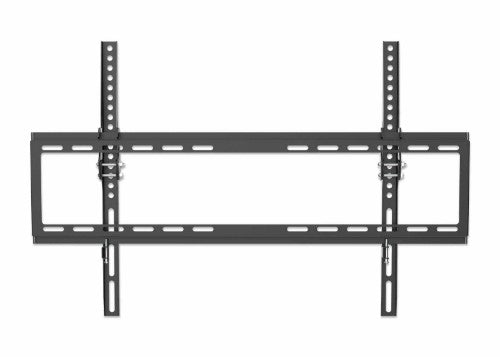

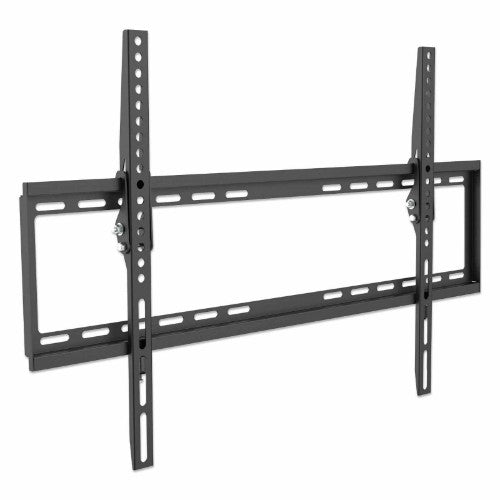

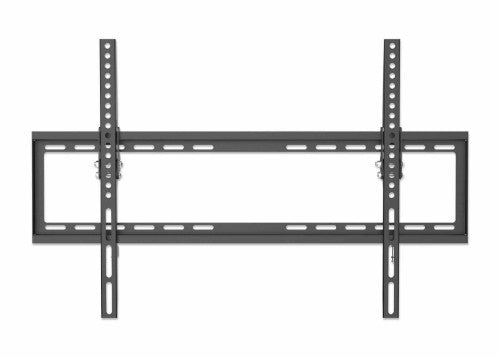

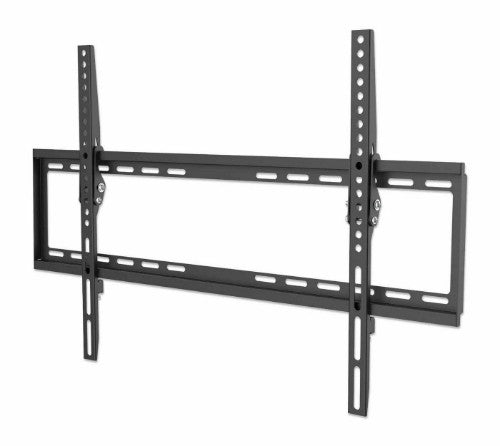

Wall Mount for TV & Monitors (Tiltable), For screens 37" to 65", VESA compatability: all between 200x200mm and 600x400mm - check the dimensions of the four mounting holes on back of screen to ensure it fits, Max 35kg, Black, Bracket
When viewing locations and TV heights are fixed at optimal positions, the Manhattan Low-Profile TV Wall Mount creates a nearly flush, close-to-the-wall installation that enhances the thin, modern TV silhouette. This mount extends only 21 mm (0.83 in.) from the wall. Constructed of high-quality, powder-coated steel, this ultra-slim TV mount fits flat LCD, LED or plasma TVs up to 70"" and weighing up to 35 kg (77 lbs.). It offers VESA compliance up to 600x400. Intuitive snap-in brackets let you easily put the TV in place for a confident above-the-floor installation. It's ideal for residential, office, hospitality, classroom, conference room, digital signage and other commercial applications.
Key Features
- Supports one 37"" to 70"" TV up to 35 kg (77 lbs.)
- Optimized views with 0 to 8° tilt
- Heavy-duty steel construction with powder coating
- Low-profile installation ideal for home, office and commercial applications

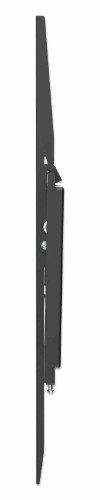

- Extends TV 21 mm (0.83 in.) from wall
- Snap-in TV brackets with screws for easy installation and additional safety
- Open design for improved airflow and easier access to cabling
- Includes attachable bubble level
- Meets VESA standards: 200x200, 300x300, 400x200, 400x400, 600x400
Description
The Low-Profile TV Wall Mount - a mount for flush-as-possible TV installationsWhen viewing locations and TV heights are fixed at optimal positions, the Manhattan Low-Profile TV Wall Mount creates a nearly flush, close-to-the-wall installation that enhances the thin, modern TV silhouette. This mount extends only 21 mm (0.83 in.) from the wall. Constructed of high-quality, powder-coated steel, this ultra-slim TV mount fits flat LCD, LED or plasma TVs up to 70"" and weighing up to 35 kg (77 lbs.). It offers VESA compliance up to 600x400. Intuitive snap-in brackets let you easily put the TV in place for a confident above-the-floor installation. It's ideal for residential, office, hospitality, classroom, conference room, digital signage and other commercial applications.
Specifications
| Mounting | |
|---|---|
| Minimum screen size | 94 cm (37") |
| Panel mounting interface | 200 x 200,300 x 300,400 x 200,400 x 400,600 x 400 |
| Number of displays supported | 1 |
| Mounting type | Wall |
| Minimum VESA mount | 200 x 200 mm |
| Maximum VESA mount | 600 x 400 mm |
| Maximum weight capacity | 35 kg |
| Maximum screen size | 177.8 cm (70") |
| Ergonomics | |
| Tilt angle range | 0 - 8° |
| Tilt adjustment | Yes |
| Design | |
| Product colour | Black |
| Housing material | Steel |
| Technical details | |
| Mounting type | Wall |
| Product colour | Black |
| Compliance certificates | RoHS |
| Weight & dimensions | |
| Width | 665 mm |
| Height | 422 mm |
| Weight | 1.19 kg |
| Packaging content | |
| Manual | Yes |
| Mounting kit | Yes |
| Other features | |
| Depth (max) | 2.1 cm |
| Compliance certificates | RoHS |
| Mounting type | Wall |
| Packaging data | |
| Manual | Yes |
| Logistics data | |
| Harmonized System (HS) code | 85299097 |
