Description

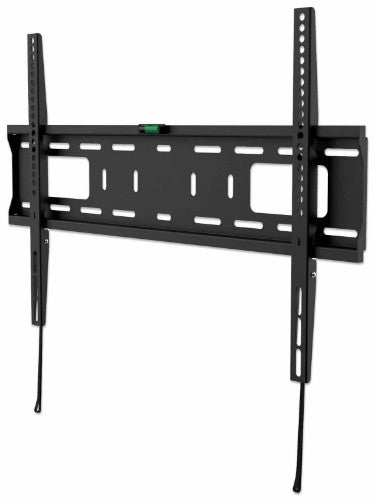

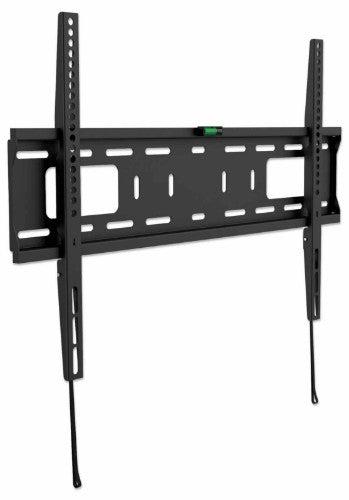

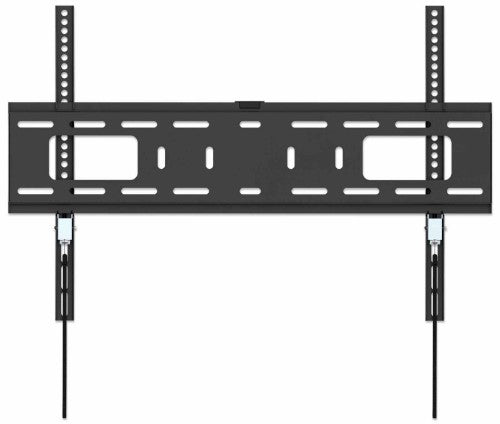

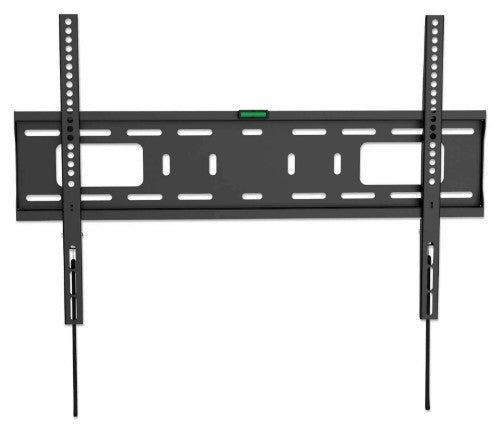

Wall Mount for TV & Monitors (Fixed), For screens 37" to 65", VESA compatability: all between 200x200mm and 600x400mm - check the dimensions of the four mounting holes on back of screen to ensure it fits, Max 50kg, Black, Bracket
When viewing locations and TV heights are fixed at optimal positions, the Manhattan Heavy-Duty Low-Profile TV Wall Mount creates nearly flush, close-to-the-wall installations that enhance thin, modern TV silhouettes. This mount extends only 25 mm (0.98 in.) from the wall. Constructed of high-quality, powder-coated steel, this ultra-slim TV mount fits flat and curved LCD, LED or plasma TVs up to 70" and weighing up to 50 kg (110 lbs.). It offers VESA compliance up to 600x400. Intuitive snap-in spring locks with release cords let you easily put the TV in place for a confident above-the-floor installation. It's ideal for residential, office, hospitality, classroom, conference room, digital signage and other commercial applications.
Key Features
- Supports one 37" to 70" TV up to 50 kg (110 lbs.)
- Heavy-duty steel construction with powder coating
- Low-profile, fixed installation, ideal for home, office and commercial applications
- Extends TV 25 mm (0.98 in.) from wall
- Snap-in spring locks with release cords for easy installation and additional safety
- Includes attachable bubble level
- Meets VESA standards: 200x200, 300x300, 400x200, 400x400, 600x400
- Lifetime warranty
Description
Heavy-Duty Low-Profile TV Wall Mount — a strong mount for flush-as-possible TV installationsWhen viewing locations and TV heights are fixed at optimal positions, the Manhattan Heavy-Duty Low-Profile TV Wall Mount creates nearly flush, close-to-the-wall installations that enhance thin, modern TV silhouettes. This mount extends only 25 mm (0.98 in.) from the wall. Constructed of high-quality, powder-coated steel, this ultra-slim TV mount fits flat and curved LCD, LED or plasma TVs up to 70" and weighing up to 50 kg (110 lbs.). It offers VESA compliance up to 600x400. Intuitive snap-in spring locks with release cords let you easily put the TV in place for a confident above-the-floor installation. It's ideal for residential, office, hospitality, classroom, conference room, digital signage and other commercial applications.
Specifications
| Mounting | |
|---|---|
| Minimum screen size | 94 cm (37") |
| Panel mounting interface | 200 x 200,300 x 300,400 x 200,400 x 400,600 x 400 |
| Number of displays supported | 1 |
| Mounting type | Wall |
| Minimum VESA mount | 200 x 200 mm |
| Maximum VESA mount | 600 x 400 mm |
| Distance to the wall (max) | 2.5 cm |
| Maximum weight capacity | 50 kg |
| Maximum screen size | 177.8 cm (70") |
| Suitable for TV | Yes |
| Design | |
| Product colour | Black |
| Housing material | Steel |
| Technical details | |
| Mounting type | Wall |
| Distance to the wall (max) | 2.5 cm |
| Product colour | Black |
| Compliance certificates | RoHS |
| Weight & dimensions | |
| Width | 653 mm |
| Depth | 25 mm |
| Height | 425 mm |
| Weight | 1.98 kg |
| Package type | Box |
| Packaging data | |
| Package type | Box |
| Manual | Yes |
| Packaging content | |
| Manual | Yes |
| Mounting kit | Yes |
| Other features | |
| Depth (max) | 2.5 cm |
| Compliance certificates | RoHS |
| Mounting type | Wall |
| Logistics data | |
| Harmonized System (HS) code | 85299097 |
