Description
Wall Mount for TV & Monitors (Fixed), For screens 60" to 100", VESA compatability: all between 200x200mm and 900x600mm - check the dimensions of the four mounting holes on back of screen to ensure it fits, Max 50kg, Black, Bracket

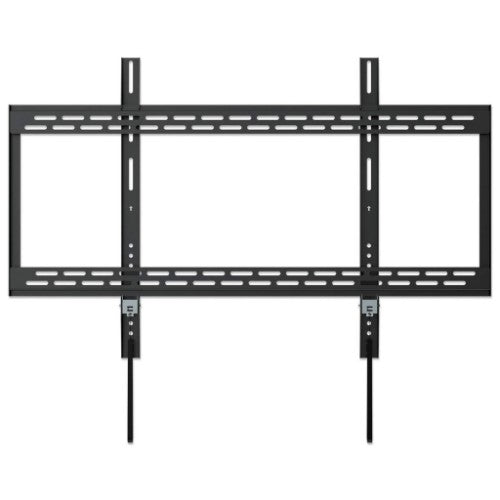

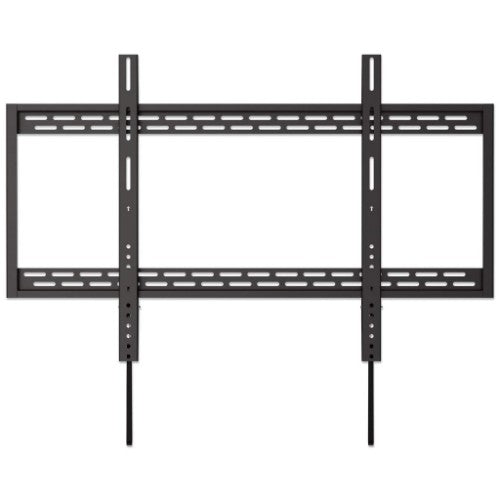

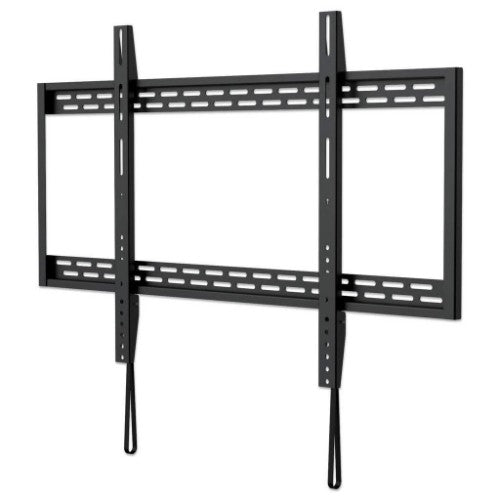

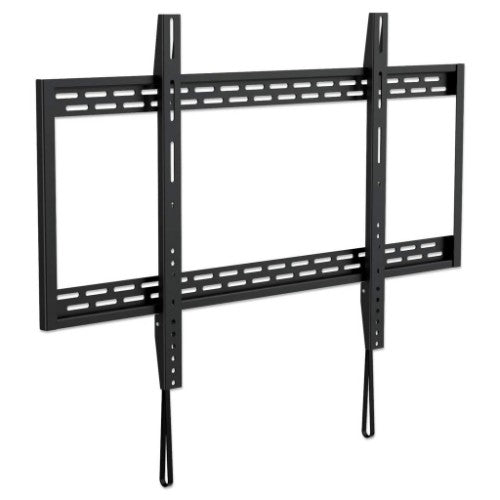

When viewing locations and TV heights are fixed at optimal positions, the Manhattan Heavy-Duty Low-Profile Large-Screen TV Wall Mount creates nearly flush, close-to-the-wall installations that enhance thin, modern TV silhouettes. This mount extends only 32 mm (1.3 in.) from the wall. Constructed of high-quality, powder-coated steel, this ultra-slim TV mount fits flat and curved LCD, LED or plasma TVs up to 100"" and weighing up to 100 kg (220 lbs.). It offers VESA compliance up to 900x600. Intuitive snap-in spring locks with release cords let you easily put the TV in place for a confident above-the-floor installation. It's ideal for residential, office, hospitality, classroom, conference room, digital signage and other commercial applications.
Key Features
- Supports one 60"" to 100"" TV up to 100 kg (220 lbs.)
- Heavy-duty steel construction with powder coating
- Low-profile, fixed installation ideal for home, office and commercial applications

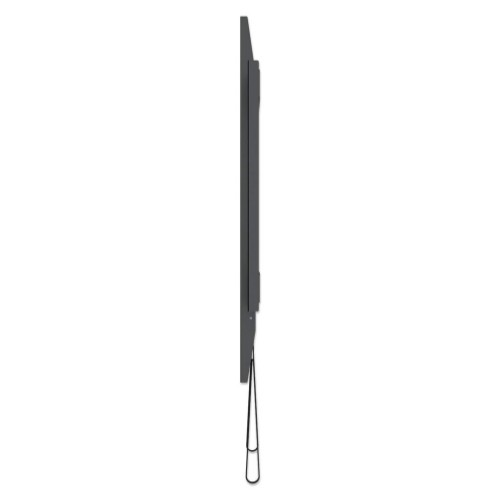

- Extends TV 32 mm (1.3 in.) from wall

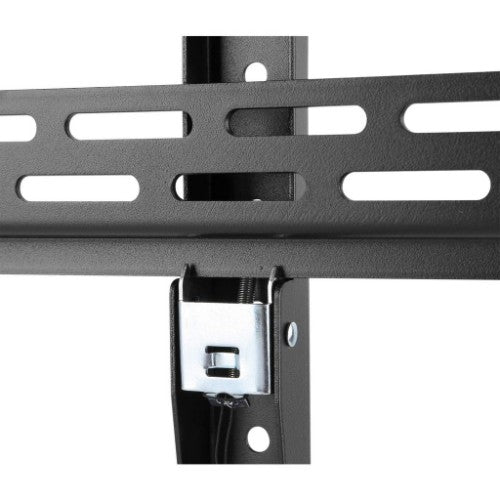

- Snap-in spring locks with release cords for easy installation and additional safety
- Meets VESA standards: 200x200, 300x300, 400x200, 400x400, 600x400, 800x400, 800x600, 900x600
Description
Heavy-Duty Low-Profile Large-Screen TV Wall Mount — a strong mount for flush-as-possible TV installationsWhen viewing locations and TV heights are fixed at optimal positions, the Manhattan Heavy-Duty Low-Profile Large-Screen TV Wall Mount creates nearly flush, close-to-the-wall installations that enhance thin, modern TV silhouettes. This mount extends only 32 mm (1.3 in.) from the wall. Constructed of high-quality, powder-coated steel, this ultra-slim TV mount fits flat and curved LCD, LED or plasma TVs up to 100"" and weighing up to 100 kg (220 lbs.). It offers VESA compliance up to 900x600. Intuitive snap-in spring locks with release cords let you easily put the TV in place for a confident above-the-floor installation. It's ideal for residential, office, hospitality, classroom, conference room, digital signage and other commercial applications.
Specifications
| Mounting | |
|---|---|
| Minimum screen size | 152.4 cm (60") |
| Panel mounting interface | 200 x 200,300 x 300,400 x 200,400 x 400,600 x 400,800 x 400,800 x 600,900 x 600 |
| Number of displays supported | 1 |
| Mounting type | Wall |
| Minimum VESA mount | 200 x 200 mm |
| Maximum VESA mount | 900 x 600 mm |
| Maximum weight capacity | 100 kg |
| Maximum screen size | 2.54 m (100") |
| Design | |
| Product colour | Black |
| Housing material | Steel |
| Certification | UL |
| Technical details | |
| Mounting type | Wall |
| Product colour | Black |
| Compliance certificates | RoHS |
| Weight & dimensions | |
| Width | 1009 mm |
| Height | 630 mm |
| Weight | 5.9 kg |
| Packaging content | |
| Manual | Yes |
| Mounting kit | Yes |
| Certificates | |
| Certification | UL |
| Other features | |
| Depth (max) | 3.2 cm |
| Certification | UL |
| Compliance certificates | RoHS |
| Mounting type | Wall |
| Packaging data | |
| Manual | Yes |
| Logistics data | |
| Harmonized System (HS) code | 85299097 |
