Description

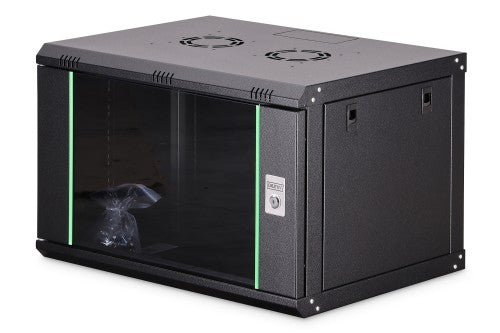

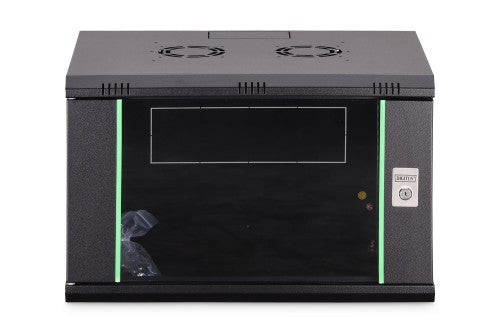

7U wall mounting cabinet, Dynamic 389x600x450 mm, color black (RAL 9005)
- Optimized air ventilation and exhaustion

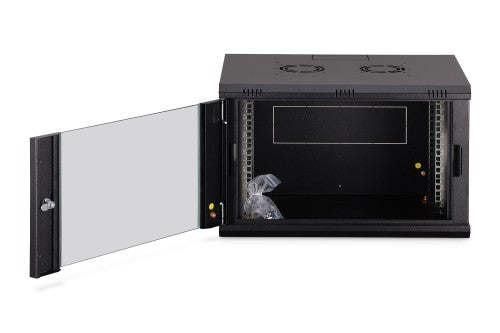

- Lockable safety-glass door with steel frame
The network cabinets for wall installation from the Dynamic series were developed for easy and especially cost-optimized network expansion. The roof, floor and back wall of each cabinet are equipped with a pre-cut cable inlet. To accommodate a fan module, the roof structure is also equipped with a pre-cut area. Two pairs of galvanized 483 mm (19”) profile rails labeled with rack units readable in both directions are installed on the inside. Their depth can be adjusted. Each cabinet is made of up to 1.5 mm thick sheet steel. Coloring is done with electrostatic powder coating in the standard colors gray (RAL 7035) or jet black (RAL 9005). Removable side walls as well as lockable and removable front door improve accessibility. The door hinges can be switched. Wall installation is accomplished in two easy work steps: The mounting plate provided is bolted on the wall and then connected with the housing.
Key Features
- Safety class rating IP20
- Lockable safety-glass door with steel frame
- 210° door opening angle

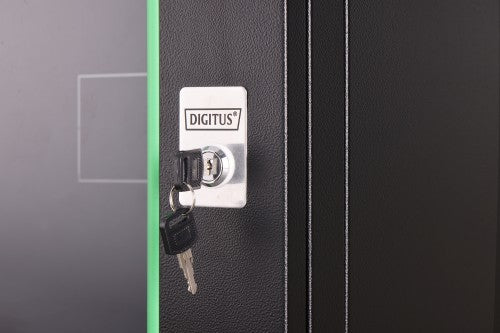

- 1-point-locking-mechanism on the front door

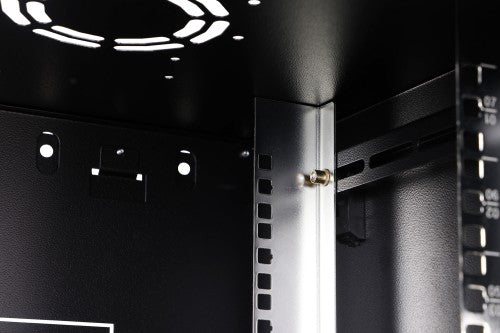

- 483 mm (19“) profile rails mounted on the front- and rear side inside of the rack, galvanized
- 483 mm (19“) profile rails are adjustable in depth and with height unit marking
- 0.8 - 1.2 mm strong sheet steel with high load capacity, powder coated

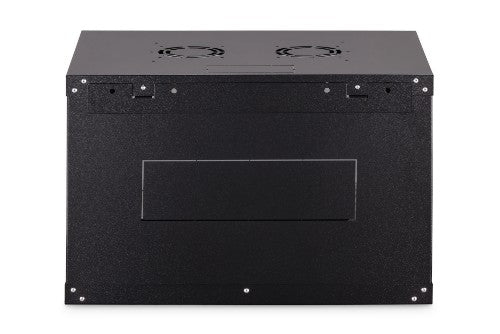

- Cable entry on the rear side, roof and base (pre-punched break-outs)
- Roof is prepared for fan units (punched out entries)
- Ventilation slots for active and passive ventilation and exhausting

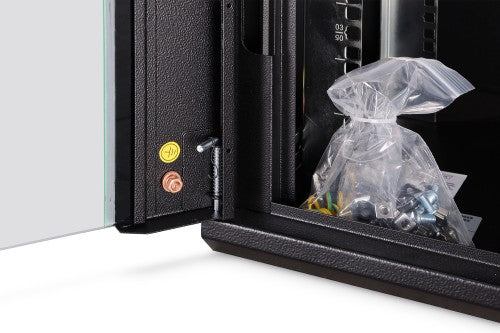

- 4 earthing points (base, side panel and front door) with protection cap
- Equipment mounting depth min.-max.: 335 -380 mm
Description
- 450 mm depth provides a space saving installation- Optimized air ventilation and exhaustion
- Lockable safety-glass door with steel frame
The network cabinets for wall installation from the Dynamic series were developed for easy and especially cost-optimized network expansion. The roof, floor and back wall of each cabinet are equipped with a pre-cut cable inlet. To accommodate a fan module, the roof structure is also equipped with a pre-cut area. Two pairs of galvanized 483 mm (19”) profile rails labeled with rack units readable in both directions are installed on the inside. Their depth can be adjusted. Each cabinet is made of up to 1.5 mm thick sheet steel. Coloring is done with electrostatic powder coating in the standard colors gray (RAL 7035) or jet black (RAL 9005). Removable side walls as well as lockable and removable front door improve accessibility. The door hinges can be switched. Wall installation is accomplished in two easy work steps: The mounting plate provided is bolted on the wall and then connected with the housing.
Specifications
| Weight & dimensions | |
|---|---|
| Package volume | 127968 cm³ |
| Package depth | 430 mm |
| Package width | 480 mm |
| Package height | 480 mm |
| Package weight | 15.4 kg |
| Width | 600 mm |
| Depth | 450 mm |
| Height | 415 mm |
| Weight | 15 kg |
| Maximum weight capacity | 60 kg |
| Features | |
| Key lock | Yes |
| Rack capacity | 7U |
| International Protection (IP) code | IP20 |

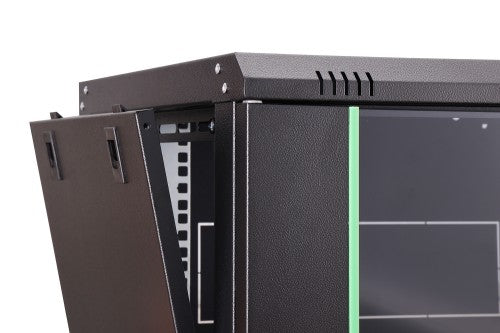

| Removable side panels | Yes |
| Front door construction | Glass |
| Side panel construction | Steel |
| Front door key lock | Yes |
| Type | Wall mounted rack |
| Side panels included | Yes |
| Maximum weight capacity | 60 kg |
| Material | Steel |
| Product colour | Black |
| Packaging data | |
| Package volume | 127968 cm³ |
| Package depth | 430 mm |
| Package width | 480 mm |
| Package height | 480 mm |
| Package weight | 15.4 kg |
| Technical details | |
| Package width | 480 mm |
| Package height | 480 mm |
| Type | Wall mounted rack |
| Side panels included | Yes |
| Harmonized System (HS) code | 85381000 |
| Rack capacity | 7U |
| International Protection (IP) code | IP20 |
| Colour | |
| Product colour | Black |
| Packaging content | |
| Side panels included | Yes |
| Material | |
| Material | Steel |
| Logistics data | |
| Country of origin | Turkey |
| Harmonized System (HS) code | 85381000 |
| UK Trade Tariff code | 94032080 |
