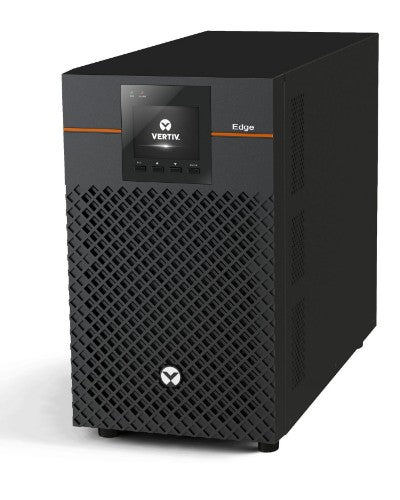

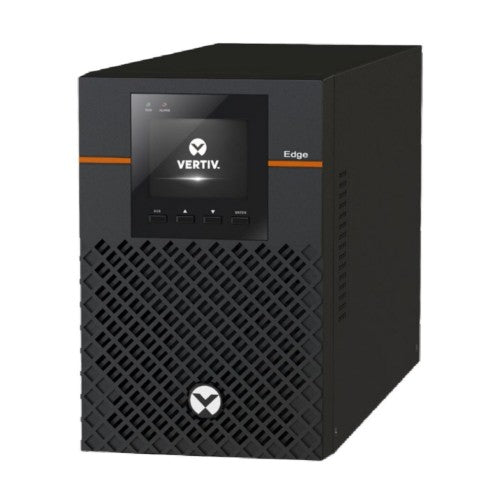

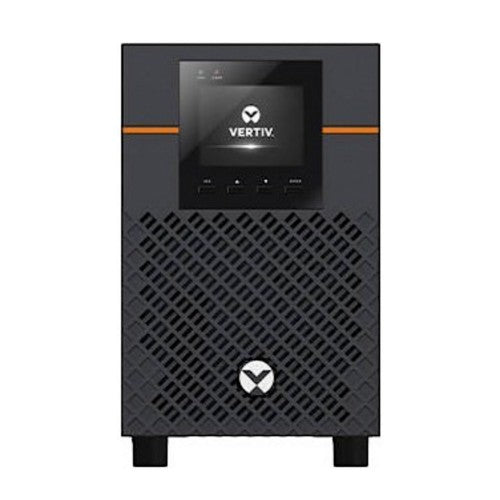

EDGE UPS 750VA 230V Tower
Key Features
- Highly efficient: maximize power to IT loads, realize lifetime energy savings
- Wide range of form factors and flexible installation options
- Advanced battery protection and runtime optimization features
- Hot-swappable internal batteries – less downtime
- Withstands higher operating temperatures
- Low noise
- Remote monitoring and management capabilities
Description
Vertiv™ EDGE is a family of highly reliable, efficient, manageable and flexible line interactive sinewave UPSs for critical distributed and edge data center applications. The Vertiv™ EDGE-750IMT comes in a tower format and offers 750VA/630W of backup power protection for server and networking equipment. Featuring a high 0.9 power factor, controllable outlets, and an intuitive LCD screen, Vertiv EDGE is a simple, cost-effective choice for distributed and edge IT applications.
Specifications
| Power |
|---|
| Output power |
675 W |
| Input operation voltage (min) |
230 V |
| Input operation voltage (max) |
230 V |
| Surge energy rating |
624 J |
| Efficiency |
95% |
| Output power capacity |
0.75 kVA |
| Performance |
|---|
| UPS topology |
Line-Interactive |
| Waveform |
Sine |
| Features |
|---|
| UPS topology |
Line-Interactive |
| Waveform |
Sine |
| Output power |
675 W |
| Input operation voltage (min) |
230 V |
| Input operation voltage (max) |
230 V |
| Surge energy rating |
624 J |
| Efficiency |
95% |
| Output power capacity |
0.75 kVA |
| Input frequency |
45/65 Hz |
| Ports & interfaces |
|---|
| USB port |
Yes |
| AC outlet types |
C13 coupler |
| Power plug |
C14 coupler |
| Design |
|---|
| Rack capacity |
1U |
| Form factor |
Tower |
| Product colour |
Black |
| Safety |
EN60020-1:2008+A1:2013 |
| Display type |
LCD |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
20 - 90% |
| Operating altitude |
0 - 3000 m |
| Technical details |
|---|
| Harmonized System (HS) code |
85078000 |
| Compliance certificates |
CE, RoHS, REACH |
| Weight & dimensions |
|---|
| Package width |
5500 mm |
| Package depth |
6200 mm |
| Package height |
2000 mm |
| Weight |
13 kg |
| Width |
145 mm |
| Package weight |
17 kg |
| Height |
220 mm |
| Depth |
370 mm |
| Packaging data |
|---|
| Package width |
5500 mm |
| Package depth |
6200 mm |
| Package height |
2000 mm |
| Package weight |
17 kg |
| Logistics data |
|---|
| Harmonized System (HS) code |
85078000 |
| Certificates |
|---|
| Safety |
EN60020-1:2008+A1:2013 |
