Description
SFP, 850nm, 550m, MM, LC, Duplex, 1Gb/s, Hot Plug, 3.3V
AddOn transceivers (GBIC, SFP, SFP+, X2, XFP and XENPAK) are 100% compliant for all networking product lines, and are factory loaded with OEM specific configuration data required for networking compliance. These transceivers initialize and perform identically to the OEM transceivers and can be mixed and deployed with other OEM or 3rd party transceivers, for seamless network performance.
Description

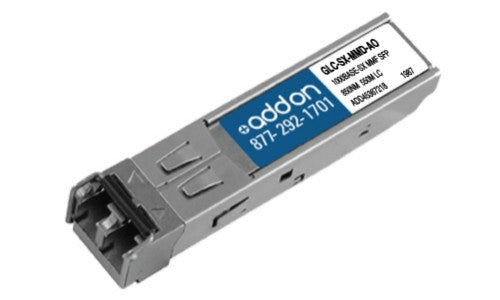

AddOn's GLC-SX-MMD-AO is a CISCO compatible SFP transceiver that operates at 850nm over Multi-Mode Fiber, with a maximum reach of 550m connected via a LC connector built to meet or exceed the OEM's specifications, and comply with MSA (Multi-Source Agreement) standards. All products are 100% functionally tested, and are guaranteed compatible.AddOn transceivers (GBIC, SFP, SFP+, X2, XFP and XENPAK) are 100% compliant for all networking product lines, and are factory loaded with OEM specific configuration data required for networking compliance. These transceivers initialize and perform identically to the OEM transceivers and can be mixed and deployed with other OEM or 3rd party transceivers, for seamless network performance.
Specifications
| Network | |
|---|---|
| SFP transceiver type | Fiber optic |
| Fiber optic connector | LC |
| Networking standards | IEEE 802.3z |
| Fiber ports quantity | 1 |
| Maximum data transfer rate | 1000 Mbit/s |
| Interface type | SFP |
| Technical details | |
| Maximum transfer distance | 550 m |
| Wavelength | 850 nm |
| Fiber cable diameters supported (core/cladding) | 62.5/125 µm |
| Compatible products | CISCO |
| Compliance certificates | RoHS |
| Ports & interfaces | |
| Fiber ports quantity | 1 |
| Performance | |
| Compatible products | CISCO |
| SFP transceiver type | Fiber optic |
| Fiber optic connector | LC |
| Networking standards | IEEE 802.3z |
| Maximum transfer distance | 550 m |
| Wavelength | 850 nm |
| Fiber ports quantity | 1 |
| Fiber cable diameters supported (core/cladding) | 62.5/125 µm |
| Maximum data transfer rate | 1000 Mbit/s |
| Interface type | SFP |
| Multi-mode fiber (MMF) supported | Yes |
| SFP transceiver standard | SX |
| Features | |
| Certification | UL, cUL FCC Part 15 Class B |
| Compatible products | CISCO |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Weight & dimensions | |
| Width | 13.7 mm |
| Depth | 56.5 mm |
| Height | 18 mm |
| Certificates | |
| Certification | UL, cUL FCC Part 15 Class B |
