MMF, 850nm, 300m, LC, DOM
Description

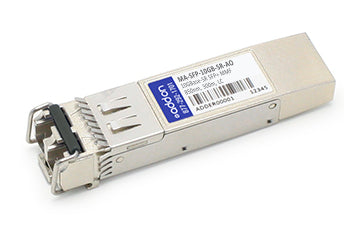

Meraki now Cisco® MA-SFP-10GB-SR Compatible 10GBase-SR SFP+ Transceiver (MMF, 850nm, 300m, LC, DOM). A 100% Meraki now Cisco® SFP+ transceiver that operates at 850nm over multi-mode fiber, with a maximum reach of 300m connected via a LC connector. This Meraki now Cisco® compatible SFP+ transceiver has been programmed, uniquely serialized, and data-traffic and application tested to ensure it is 100% compliant and functional. Our SFP+ transceiver will initialize and perform identically to Meraki now Cisco's transceiver and is built to meet or exceed Meraki now Cisco's specifications, and comply with MSA (Multi-Source Agreement) standards. The actual part shipped may have a different part number, but will be functionally identical and 100% compatible. Trade Agreements Act (TAA) versions of this part are available.
Specifications
| Network |
|---|
| SFP transceiver type |
Fiber optic |
| Fiber optic connector |
LC |
| Maximum data transfer rate |
10000 Mbit/s |
| Interface type |
SFP+ |
| Technical details |
|---|
| Maximum transfer distance |
300 m |
| Wavelength |
850 nm |
| Performance |
|---|
| SFP transceiver type |
Fiber optic |
| Fiber optic connector |
LC |
| Maximum transfer distance |
300 m |
| Wavelength |
850 nm |
| Maximum data transfer rate |
10000 Mbit/s |
| Interface type |
SFP+ |
| Multi-mode fiber (MMF) supported |
Yes |
| SFP transceiver standard |
SR |
| Weight & dimensions |
|---|
| Width |
12.7 mm |
| Depth |
55.9 mm |
| Height |
7.62 mm |
| Weight |
68.03 g |
