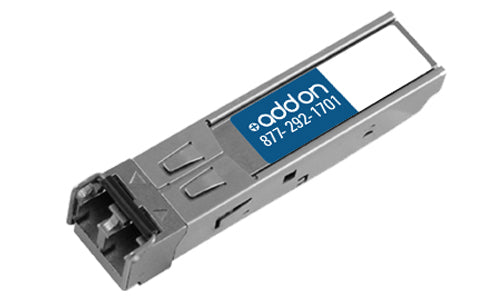

AddOn Networks 1000BASE-SX SFP network transceiver module Fiber optic 1000 Mbit/s

1000BASE-SX SFP optical transceiver for Palo Alto Networks

Description

Add-On's Small Form Factor Pluggable (SFP) transceivers are designed to exceed OEM system requirements. All products are guaranteed 100% compatible and will not void OEM Service/support programs. Our SFP Transceivers utilize industry standard bi-directional serial optical data communication protocols such as Gigabit Ethernet or Fiber Channel reaching speeds up to 8Gbps.

All our SFP Transceivers are compliant with the Multi-Source Agreement (MSA) ensuring compatibility with a wide range of networking equipment. Select your choice or Copper or Fiber versions that support Fast Ethernet and Gigabit Ethernet speeds

- 100% OEM Compatible
- 100% Tested
- Conforms to IEEE 802.3z standard
- Class 1 Laser Product Compliant with the Requirements of IEC 60825-1 and IEC 60825-2
- Compliant with Multi-Source Agreement (MSA)
- RoHS Compliant

Specifications

Network
SFP transceiver type	Fiber optic
Networking standards	IEEE 802.3z
Cabling technology	1000BASE-SX
Maximum data transfer rate	1000 Mbit/s
Interface type	SFP
Technical details
Hot-Plug support	Yes
Fiber cable diameters supported (core/cladding)	50/125,62.5/125 µm
Cabling technology	1000BASE-SX
Compliance certificates	RoHS
Performance
Hot-Plug support	Yes
SFP transceiver type	Fiber optic
Networking standards	IEEE 802.3z
Fiber cable diameters supported (core/cladding)	50/125,62.5/125 µm
Cabling technology	1000BASE-SX
Maximum data transfer rate	1000 Mbit/s
Interface type	SFP
Multi-mode fiber (MMF) supported	Yes
SFP transceiver standard	SX
Features
Hot-Plug support	Yes
Certification	MSA
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	10 - 80%
Storage relative humidity (H-H)	10 - 85%
Weight & dimensions
Width	13.4 mm
Depth	56.5 mm
Height	8.5 mm
Certificates
Certification	MSA
